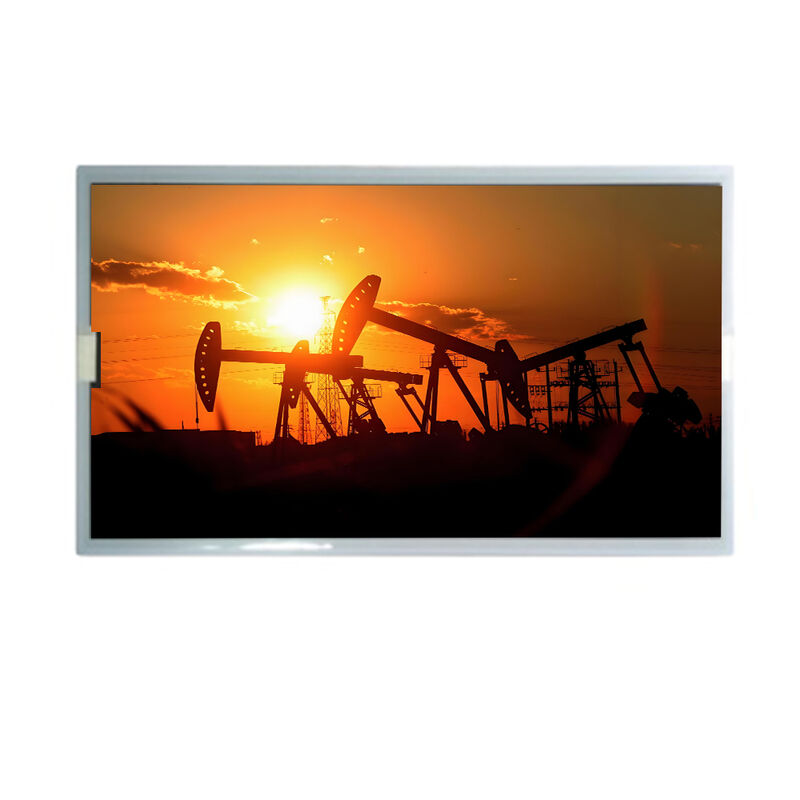

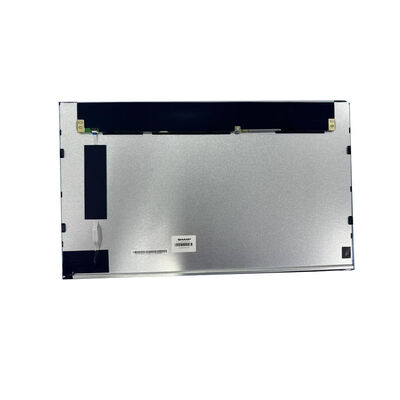

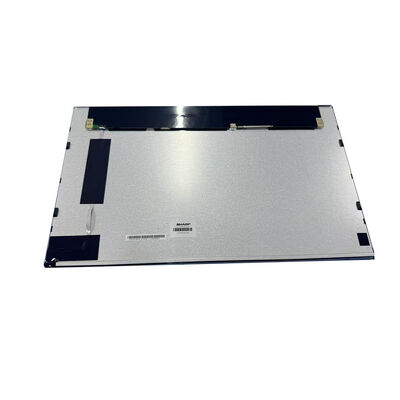

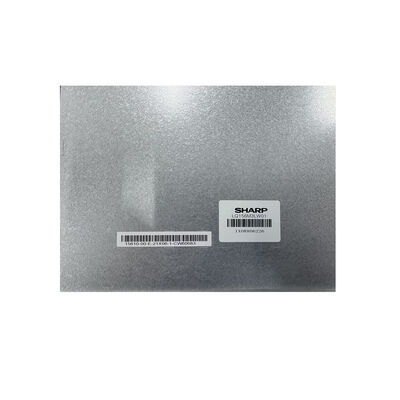

LQ156M3LW01 Sharp 15.6 inch 1920x1080 Industrial TFT LCD Module

Name: LQ156M3LW01 Sharp 15.6 inch 1920x1080 Industrial TFT LCD Module
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: LQ156M3LW01
Price: 120 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ156M3LW01
MOQ:	1
Price:	US$120

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

A-Si TFT-LCD, LCM

Display Size:

15.6 Inch

Resolution:

1920(RGB)×1080, FHD 141PPI

Supplier Type:

Original Brand

Pixel Format:

RGB Vertical Stripe

Surface:

Antiglare, Hard Coating

Luminance:

400 Cd/m² (Typ.)

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Response Time:

25 (Typ.)(Tr+Td) Ms

Lamp Type:

9S6P WLED , 50K Hours , With LED Driver

Input Voltage:

5.0V (Typ.)

Signal Interface:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

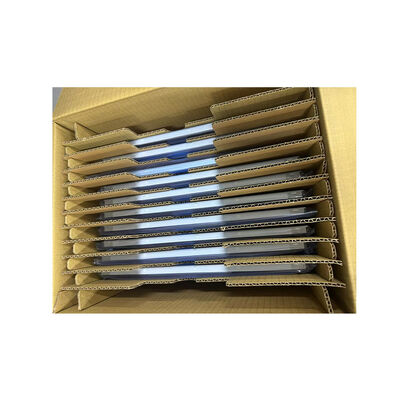

Packaging Details:

Box

Highlight:

Hard coating Industrial TFT Display

141PPI Industrial TFT Display

LQ156M3LW01

Product Description

Sharp 15.6 Inch LQ156M3LW01 1920x1080 FHD TFT-LCD Display Module

Industrial-Grade 15.6" TFT LCD Display Module

High-performance 15.6-inch TFT LCD screen module featuring 1920x1080 Full HD resolution and LVDS interface, specifically designed for industrial equipment applications.

Key Features

Horizontal orientation design for industrial applications

High resolution 1920x1080 FHD with 141 PPI for sharp image quality

Wide 170-degree viewing angle with clear visibility from extreme angles

LVDS interface (2 ch, 8-bit) with 30-pin connector

16.7 million colors with 98% sRGB color gamut

1500:1 contrast ratio for superior image clarity

Product Specifications

Specification	Details
Brand	Sharp
Model P/N	LQ156M3LW01
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)*193.59(H) mm
Contrast Ratio	1500:1 (Typ.)
Outline Size	363.8(W)215.9(H)11.3(D) mm
Response Time	35ms (Typ.)(Tr+Td)
Luminance	400 cd/m² (Typ.)
Backlight	WLED, 70K hours, With LED Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operation Mode	ASV, Normally Black, Transmissive
Color Depth	16.7M 98% sRGB
Signal Type	LVDS (2 ch, 8-bit) 30 pins Connector
Weight	120g (Typ.)
Voltage Supply	5.0V (Typ.)
Refresh Rate	60Hz
Operating Temperature	-20°C to 75°C
Storage Temperature	-20°C to 80°C

Application & Customization

This display module is recommended for industrial devices and industrial monitors. The panel supports customization with cover glass and capacitive touch elements. Available cover plate options include various thicknesses of Corning Gorilla GG3 or Asahi Nitrate with AR, AF, and AG surface treatments. Can be equipped with HDMI driver board for easy debugging and evaluation.

About Our Company

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and superior supply chain resources, we deliver fast, reliable first-tier services to our clients.
