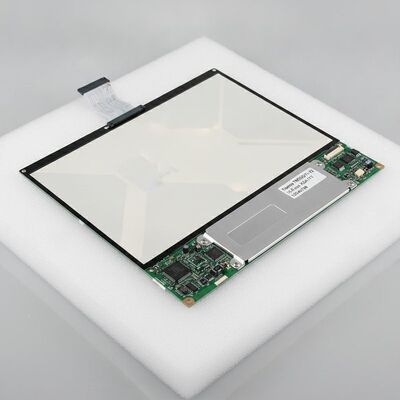

Tianma TM150TDSG71-72 15.0 inch 1024x768 XGA TFT Display with 450 cd/m² Brightness for Industrial Applications
15.0 inch TFT Display
,1024x768 XGA LCD Module
,450 cd/m² Industrial Display
This TIANMA 15-inch stretched TFT-LCD model TM150TDSG71-72 delivers XGA resolution, 450 cd/m² brightness, 50K-hour replaceable WLED backlight with integrated driver for transit & industrial display use.
- 15-inch stretched XGA 1024×768 TFT-LCM
- 450 cd/m² high brightness, matte anti-glare surface
- 50,000-hour replaceable WLED with built-in driver
- LVDS 6/8-bit interface, 60Hz refresh rate
- -20~70℃ wide operating temperature
- No touch panel, for transit & industrial displays
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Basic Information | Brand | TIANMA |
| Model | TM150TDSG71-72 | |
| Diagonal Size | 15.0 inch | |
| Panel Type | a-Si TFT-LCD, LCM | |
| Display Parameters | Pixel Number | 1024(RGB)×768, 4:3, XGA |
| Pixel Structure | RGB Vertical Stripe | |
| Active Area | 304.128(H)×228.096(V) mm | |
| Physical Size | 326.5(H)×253.5(V)×12.1(D) mm | |
| Mass | 1.00Kgs (Typ.) | |
| Surface Coating | Antiglare Matte | |
| Luminance | 450 cd/m² (Typ.) | |
| Contrast Ratio | 800:1 (Typ.) (TM) | |
| View Direction | 6 o'clock | |
| Response Time | 8 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | |
| Operating Mode | TN, Normally White, Transmissive | |
| Support Color | 262K/16.2M, 62% NTSC | |
| Frame Rate | 60Hz | |
| Touch Configuration | Touch Panel | Without Touch |
| Backlight System | Light Source | WLED, ≥50K hrs, With LED Driver, Lamp Replaceable, 180° Reverse |
| Electrical Interface | Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Connector | P-two,185083-20121,Pitch 1.25 | |
| Power Supply | 3.3V (Typ.) | |
| Environmental Spec | Operating Temperature | -20 ~ 70 ℃ |
| Storage Temperature | -30 ~ 80 ℃ | |
| Production Status | Production State | In Production |
| Mass Production Launch | 2024,Q3 |
This industrial display module is specifically recommended for
Industrial control displays
Industrial equipment
Medical devices
POS terminals
In-vehicle displays
Industrial instrumentation
HMI control panels
Factory automation
