| Brand Name: | Tianma |
| Model Number: | TM101DDHG06-71 |
| MOQ: | 1 |
| Price: | $33/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

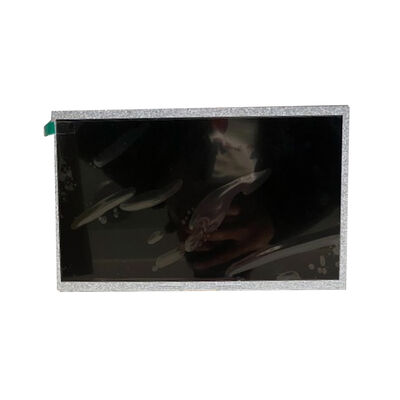

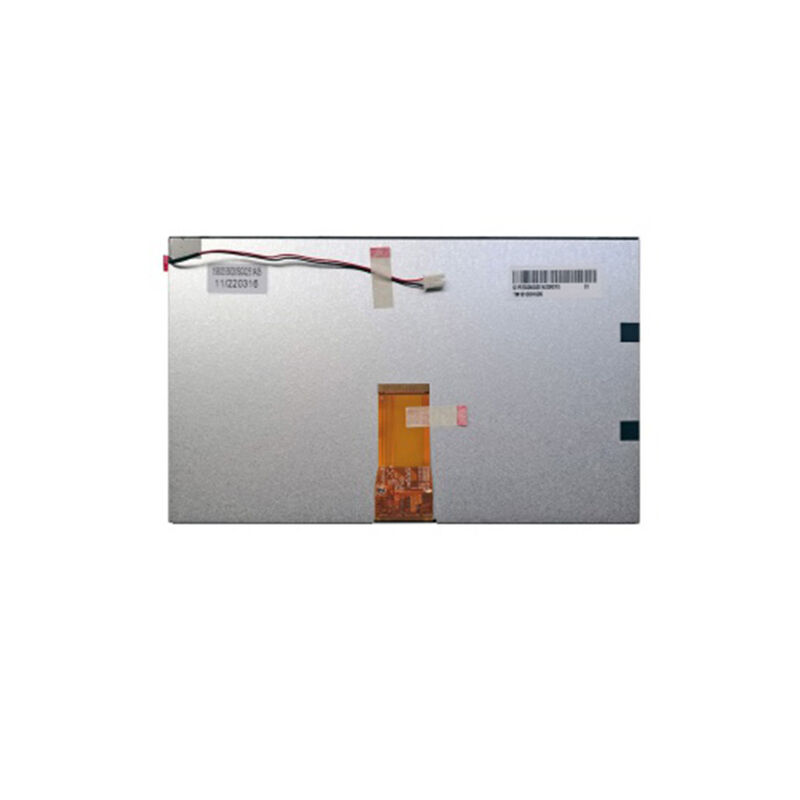

High-performance 10.1-inch TFT-LCD display module with 1024×600 WSVGA resolution and TTL interface, engineered for industrial IoT applications requiring reliable visual performance in demanding environments.
Mass prodcutin for this model starts in Q3, 2021.
| Brand | Tianma |
| Model P/N | TM101DDHG06-71 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Active Area | 222.72(W)×125.28(H) mm |
| Outline Dimensions | 235(W)×143(H)×5.5(D) mm |
| Luminance | 350 cd/m² (Typical) |
| Contrast Ratio | 500:1 (Typical) |
| Viewing Angle | 80/80/75/80 (Typical, CR≥10) |
| Response Time | 16ms (Typical, Tr+Td) |
| Color Depth | 262K/16.7M, 47% NTSC |
| Backlight | 3S8P WLED, 30K hours, Without Driver |
| Mass | 272g (Typical) |
| Touchscreen | Without |
| Refresh Rate | 60Hz |
| Voltage Supply | 3.3V (Typical) |
| Signal Type | TTL (1 ch, 6/8-bit), 50 pins FPC |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
