| Brand Name: | BOE |
| Model Number: | NL8060BC21-11F |
| MOQ: | 1 |
| Price: | $245/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

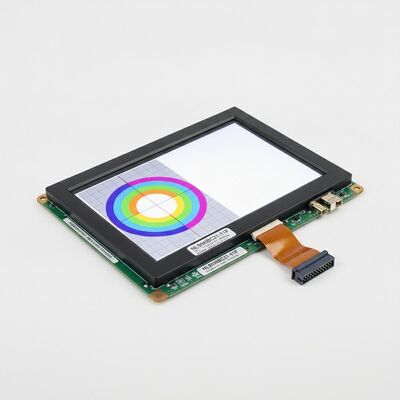

This is an 8.4-inch SVGA a-Si TFT LCD module (NL8060BC21-11F) from NEC featuring 800*600 resolution, 800 cd/m² brightness, wide -30~80°C operating temperature, 1-channel 20-pin LVDS interface, WLED backlight without driver and no touch panel, designed for industrial equipment.
Mass production began in Q3 2010. We are able to provide large quantities with competitive pricing and welcome your inquiries and orders.
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Model Information | Brand | NEC |
| Model | NL8060BC21-11F | |
| Basic Information | Diagonal Size | 8.4 inch |
| Type | a-Si TFT-LCD, LCM | |
| Display Parameters | Pixel Number | 800(RGB)*600, 4:3, SVGA |
| Pixel Format | RGB Vertical Stripe | |
| Dimension & Weight | Active Area | 170.4(H)*127.8(V) mm |
| Physical Size | 200(H)*152(V)*8.7(D) mm | |
| Mass | 260/280g (Typ./Max.) | |
| Surface Treatment | Surface Coating | Clear, Hard coating (3H) |
| Optical Performance | Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | |
| View Direction | 6 o'clock | |
| Response Time | 3/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | |
| Operating Mode | TN, Normally White, Transmissive | |
| Support Color | 262K/16.7M, 40% NTSC | |
| Application Design | Designed For | Industrial equipment |
| Backlight & Power | Power Usage | 5.0W (Typ.) |
| Light Source | 4 strings WLED, 70K hrs, Without Driver | |
| Refresh & Touch | Frame Rate | 60Hz |
| Touch Panel | Without | |
| Signal Interface | Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Connector | JAE,FI-SE20P-HFE,Pitch 1.25mm | |
| Power Supply Spec | Power Supply | 3.3V (Typ.) |
| Environmental Spec | Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C | |
| Vibration Resistance | 2.0G (19.6 m/s²) |
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
Touchscreen integration solutions available upon request.
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
