| Brand Name: | Tianma |
| Model Number: | TM034XVZP01 |
| MOQ: | 1 |
| Price: | $57/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

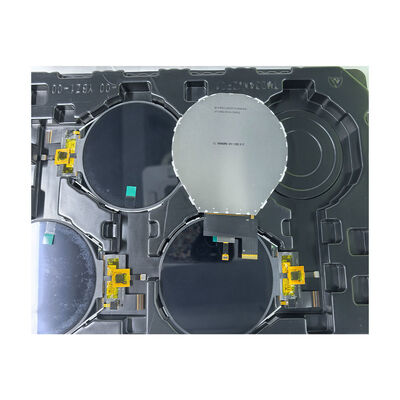

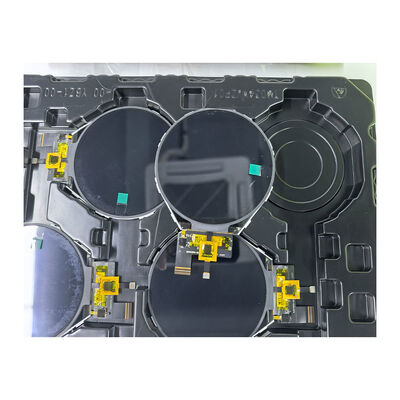

Tianma TM034XVZP01 is a 3.4-inch 800×800 circular SFT TFT-LCM with integrated I2C PCAP touch, MIPI interface and wide -20~70℃ operating temperature range. Mass production for this model started in Q4 2016.
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Basic Information | Brand | TIANMA |
| Model | TM034XVZP01 (Alias: TM034XVZP01-00) | |
| Diagonal Size | 3.4 inch | |
| Display Parameters | Panel Type | a-Si TFT-LCD, LCM |
| Pixel Number | 800(RGB)×800, 1:1 aspect ratio | |
| Pixel Structure | RGB Vertical Stripe | |
| Active Area | 87.6(H)×87.6(V) mm | |
| Physical Size | 99(H)×96.6(V)×4.28(D) mm | |
| Mass | 62.8g (Typ.) | |
| Surface Coating | Hard coating (6H) | |
| Luminance | 350 cd/m² (Typ.) | |
| Contrast Ratio | 800:1 (Typ.) (TM) | |
| Additional Display Specs | View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | |
| Operating Mode | SFT, Normally Black, Transmissive | |
| Color & Performance | Support Color | 16.7M, 70% NTSC |
| Frame Rate | 60 Hz | |
| Touch Configuration | Touch Panel | PCAP, I²C |
| Backlight System | Light Source | 2S4P WLED, 20K hrs, Without Driver |
| Electrical Interface | Interface Type | MIPI (3 data lanes), 39 pins FPC |
| Connector | FPC, Pitch 0.3 | |
| Power Supply | 1.8/5.0/-5.0V (Typ.)(IOVCC/VDDI/-VDD) | |
| Environmental Spec | Operating Temperature | -20 ~ 70 ℃ |
| Storage Temperature | -30 ~ 80 ℃ | |
| Production Status | Production State | In Production |
| Mass Production Start | 2016, Q4 | |
| Customer Sample Available | 2016, Q2 |
Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
