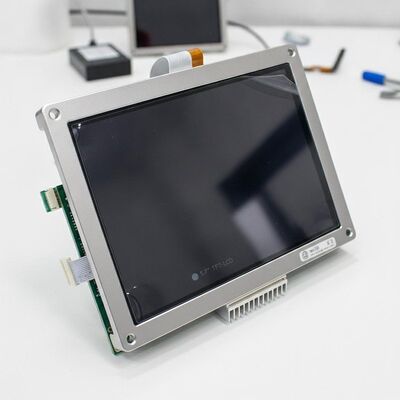

Main Features

1. 5.7" AHVA industrial LCD, 640×480 VGA (4:3), 60Hz, 262K colors / 50% NTSC
2. High brightness 700 cd/m², 1000:1 contrast, full 89° wide viewing angle
3. Matte 3H hard coating anti-glare & scratch resistant
4. WLED backlight with 70,000-hour lifespan, 2.35W typical power
5. Wide temp range: -30~85°C operating & storage, for harsh industrial scenes
6. 33-pin 6-bit CMOS interface, 3.3V drive voltage, no touch screen
7. Compact lightweight structure for embedded equipmen

Product Advantages

1. High visibility outdoors


   700 cd/m² high brightness plus 1000:1 contrast, clear display under strong ambient light.
2. Excellent wide viewing performance


   AHVA full-angle panel with 89° all-direction viewing angle, consistent color from all views.
3. Industrial wide temperature adaptability


   -30℃ ~ 85℃ working & storage range, stable performance in extreme cold and hot environments.
4. Durable screen surface


   Matte anti-glare 3H hard coating, anti-scratch and anti-reflection for long-time industrial use.
5. Long service life & low power consumption


   Built-in WLED backlight with 70,000-hour lifespan, typical power only 2.35W, energy-saving.
6. Compact & easy integration


   Small thin outline and light weight, convenient to embed into industrial control devices.
7. Stable industrial signal interface


   33-pin 6-bit CMOS 3.3V drive interface, mature and reliable for industrial control systems.
