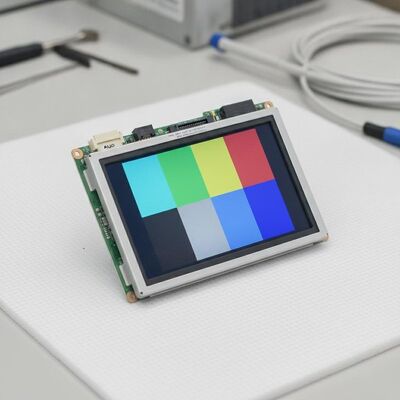

AUO 5.7-inch TFT-LCD Module with 700 cd/m² Brightness, -30 to 85°C Operation, and AHVA Wide Viewing for Industrial Displays
AUO 5.7-inch TFT-LCD Module with 700 cd/m² Brightness, -30 to 85°C Operation, and AHVA Wide Viewing for Industrial Displays
Brand Name
AUO
Product Model
G057VN01 V220
Country Of Origin
china
Product Details
Highlight:
5.7-inch TFT-LCD industrial display
,700 cd/m² brightness TFT module
,AHVA wide viewing TFT display
Product Description
Detailed Specifications And Features
Product Overview
This AUO 5.7-inch VGA (640*480) TFT‑LCD module delivers 700 cd/m² brightness, AHVA wide‑viewing technology, a 6‑bit CMOS interface, integrated LED backlight with driver, and a –30 to 85°C operating range, making it ideal for rugged industrial displays.
Key Features
- 700 cd/m² brightness – sunlight readable.
- –30 to 85 °C operation – works in extreme temperatures.
- 70,000‑hour LED with built‑in driver – long life, easy integration.
- AHVA wide viewing + 1000:1 contrast – sharp images from any angle.
- Anti‑glare, 3H hard coating – scratch‑resistant and reduces reflections.
- Low power (2.35 W) – energy efficient.
Technical Specifications
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Model Information | Brand | AUO (友达) |
| Model | G057VN01 V220 | |
| Basic Information | Diagonal Size | 5.7 inch |
| Type | a-Si TFT-LCD, LCM(液晶模组) | |
| Display Parameters | Pixel Number | 640(RGB)*480, 4:3, VGA |
| Pixel Format | RGB Vertical Stripe(RGB 垂直条状) | |
| Display Area | 115.2(H)*86.4(V) mm | |
| Outline Dimension | 144(H)*104.6(V)*12.8(D) mm | |
| Panel Weight | 150g(Typ.) / 165g(Max.) | |
| Surface Treatment | Matte, Hard coating (3H)(雾面,3H 硬化涂层) | |
| Optical Parameters | Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10), Full viewing angle | |
| Operation Mode | AHVA, Normally White, Transmissive | |
| Response Time | 15/10 (Typ.)(Tr/Td) ms | |
| Display Color | 262K, 50% NTSC | |
| Electrical Parameters | Refresh Frequency | 60Hz |
| Power Consumption | 2.35W (Typ.) | |
| Backlight Type | WLED, 70K hours, with LED Driver | |
| Signal Interface | CMOS (1 ch, 6-bit), 33 pins, Terminal | |
| Driving Voltage | 3.3V (Typ.) | |
| Environment & Function | Touch Screen | No touch |
| Operating Temperature | -30 ~ 85 ℃ | |
| Storage Temperature | -30 ~ 85 ℃ | |
| Production Status | Mass Production Status | Mass production |
| Mass Production Start | 2023 Q3 | |
| Customer Sample Release | 2022 Q4 |
Customization Options
- Industrial HMI
- Factory automation equipment
- CNC machine tools
- Testing and measuring instruments
- Outdoor industrial terminals
- On-board industrial displays
- Medical monitoring equipment
- Environmental monitoring instruments
- Industrial security consoles
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
