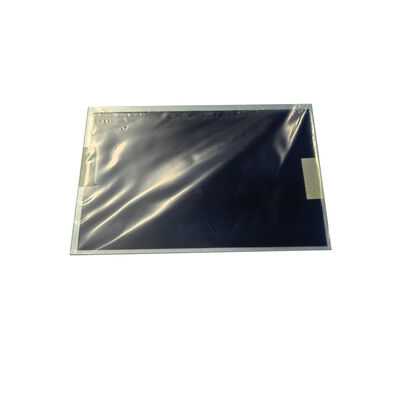

Quality Original AUO G101EVN01.3 10.1inch 1280*800 WXGA MVA TFT-LCD LCM 60Hz LVDS 40 pins Display Module for Industrial Equipment factory

Original AUO G101EVN01.3 10.1inch 1280*800 WXGA MVA TFT-LCD LCM 60Hz LVDS 40 pins Display Module for Industrial Equipment

Brand Name

AUO

Country Of Origin

China

Unit Price

$88/pieces 1-99 pieces

Product Details

Highlight:

auo tft lcd display

auo industrial tft display

10.1inch tft lcd display

Type: TFT

Display Size: 10.1"

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Pixel Format: RGB Vertical Stripe

Treatment: Hard Coating, Reflection 1.5% (Typ.)

Contrast Ratio: 1300 : 1 (Typ.) (TM)

Response: 25 (Typ.)(Tr+Td) Ms

Work Mode: MVA, Normally Black, Transmissive

Backlight: WLED , 50K Hours , With LED Driver

Touchscreen: Without

Voltage Supply: 3.3V (Typ.)

Signal Type: LVDS (1 Ch, 6/8-bit) , 40 Pins Connector

Product Description

Detailed Specifications And Features

Original AUO G101EVN01.3 10.1inch 1280*800 WXGA MVA TFT-LCD LCM 60Hz LVDS 40 pins Display Module for Industrial Equipment

Products Description

Brand	AUO	Model P/N	G101EVN01.3
Diagonal size	10.1"	Panel Type	a-Si TFT-LCD,LCM
Resolution	1280(RGB)x800，WXGA 149PPI	Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)x135.6(H) mm	Bezel Opening	220.36(W)x139.1(H) mm
Outline(mm)	227.91 x 148 x 8.34(HxVxD	Treatment	Hard coating, Reflection 1.5% (Typ.)
Luminance	500 cd/m2 (Typ.)	Contrast Ratio	1300 : 1 (Typ.) (T)
Wiewing Angle	85/85/85/85(TYP)(CR210)	Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry	Work Mode	MVA, Normally Black, Transmissive
Color Depth	262K/16.2M 45% NT5C	Backlight	WLED , 50k hours , With LED Driver
Mass	350g (Max)	Touchscreen	Without
Refresh Rate	60Hz	Voltage Supply	3.3V (Typ.)
Signal Type	LVDS (1 ch, 6/8-bit) , 40 pins Connector	Max, Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
