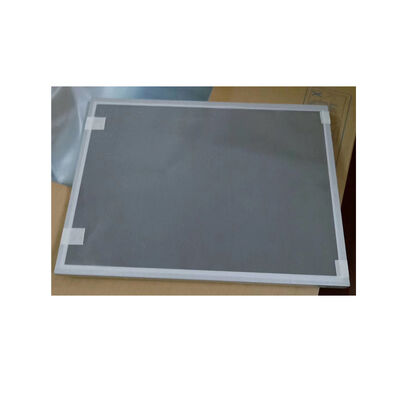

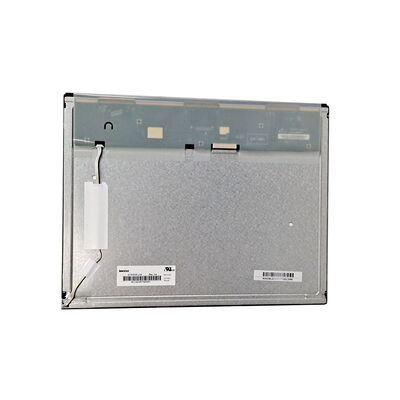

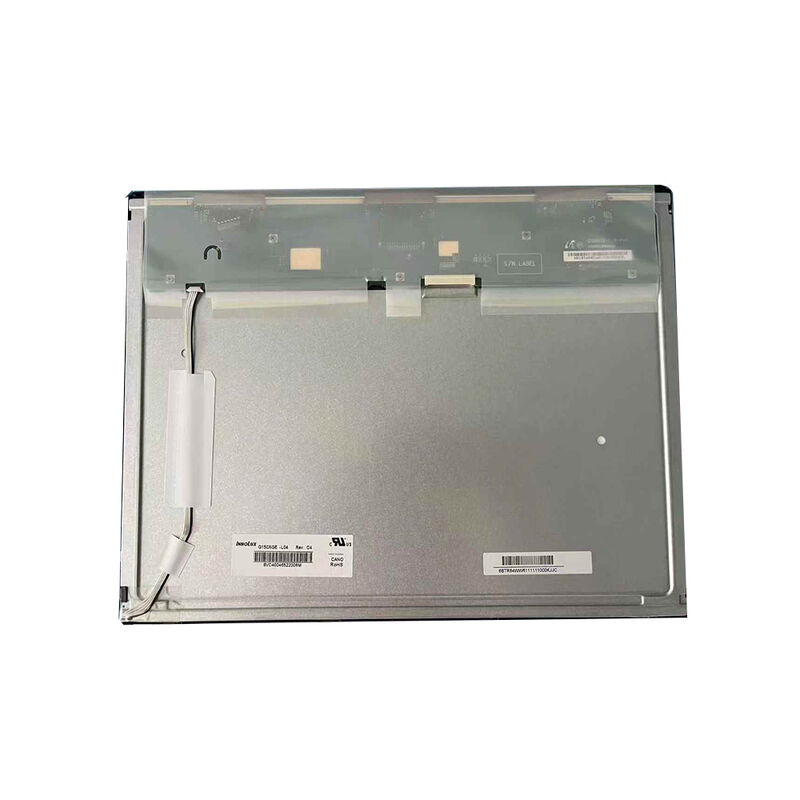

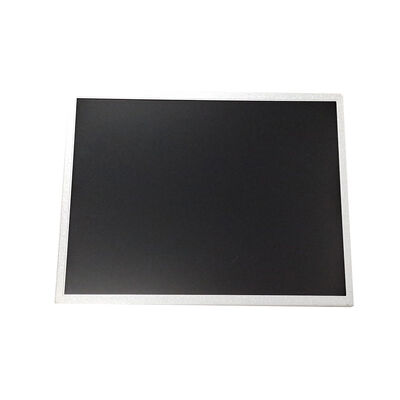

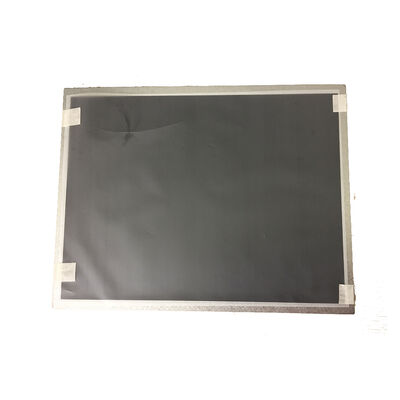

1024x768 XGA Industrial TFT Display Module Innolux G150XGE-L04
1024x768 XGA Industrial TFT Display Module Innolux G150XGE-L04
Brand Name
Chimei Innolux
Product Model
G150XGE-L04
Country Of Origin
China
MOQ
1
Unit Price
$90/pieces 1-99 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
1024x768 XGA Industrial TFT Display
,G150XGE Industrial TFT Display
,innolux g150xge l04
Type:
TFT
Display Size:
15.0"
Supplier Type:
Original Brand
Panel Type:
A-Si TFT-LCD, LCM
Pixel Format:
RGB Vertical Stripe
Treatment:
Antiglare (Haze 25%), Hard Coating (3H)
Contrast Ratio:
700 : 1 (Typ.) (TM)
Response:
8/17 (Typ.)(Tr/Td) Ms
Work Mode:
TN, Normally White, Transmissive
Backlight:
WLED , 50K Hours , With LED Driver
Touchscreen:
Without
Signal Type:
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Color Depth:
262K/16.2M 55% NTSC
Product Description
Detailed Specifications And Features
G150XGE-L04 Innolux 15.0" XGA Display Module
15.0-inch TFT-LCD display module with 1024×768 XGA resolution and LVDS interface, designed for industrial and commercial applications.
Key Features
- 15.0" diagonal active area with 85 PPI density
- 1024×768 XGA resolution with RGB vertical stripe pixel format
- LVDS signal interface (1 channel, 6/8-bit)
- High brightness: 400 cd/m² typical
- 700:1 contrast ratio with wide viewing angles
- TN technology with normally white, transmissive work mode
- WLED backlight with 50,000 hours lifespan
- Antiglare surface treatment with hard coating (3H)
Technical Specifications
| Brand | Chimei Innolux |
| Model P/N | G150XGE-L04 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 85 PPI |
| Active Area | 304.128(W) × 228.096(H) mm |
| Outline Size | 326.5(W) × 253.5(H) × 12(D) mm |
| Luminance | 400 cd/m² (Typical) |
| Contrast Ratio | 700:1 (Typical) |
| Viewing Angle | 80/80/70/170 (Typical) |
| Response Time | 8/17 ms (Typical) |
| Voltage Supply | 3.3V (Typical) |
| Color Depth | 262K/16.2M, 55% NTSC |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Mass | 835g (Typical) |
Display Characteristics
This industrial-grade display module features TN technology with antiglare surface treatment (25% haze) and hard coating for durability. The WLED backlight system provides consistent illumination with extended lifespan.
Why Choose Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and strategic supply resources, we deliver fast, reliable service and superior product quality.
