Sharp 76PPI 10.4inch Industrial TFT Display 640x480 VGA LQ104V1LG81

Name: Sharp 76PPI 10.4inch Industrial TFT Display 640x480 VGA LQ104V1LG81
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: LQ104V1LG81
Price: 50.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ104V1LG81
MOQ:	1
Price:	$160/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

10.4inch

Brand:

Sharp

Resolution:

640(RGB)x480, VGA 76PPI

Module Outsize(mm):

246.5(H)x179.3(V) X13(D) Mm

Viewing Angle:

80/80/60/80 (Typ.)(CR 10)

Contrast Ratio:

800:1 (Typ.) (TM)

Brightness:

450cd/m2

Interface:

LVDS (1 Ch, 6-bit) , 20 Pins Connector

Touch Screen:

Without

Application:

Industrial

MPQ:

20pcs

Warranty:

12 Months

Highlight:

76PPI Industrial TFT Display

10.4inch Industrial TFT Display

LQ104V1LG81

Product Description

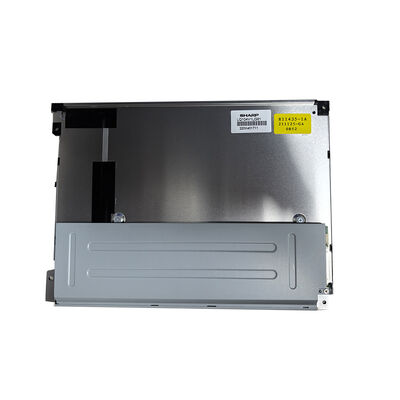

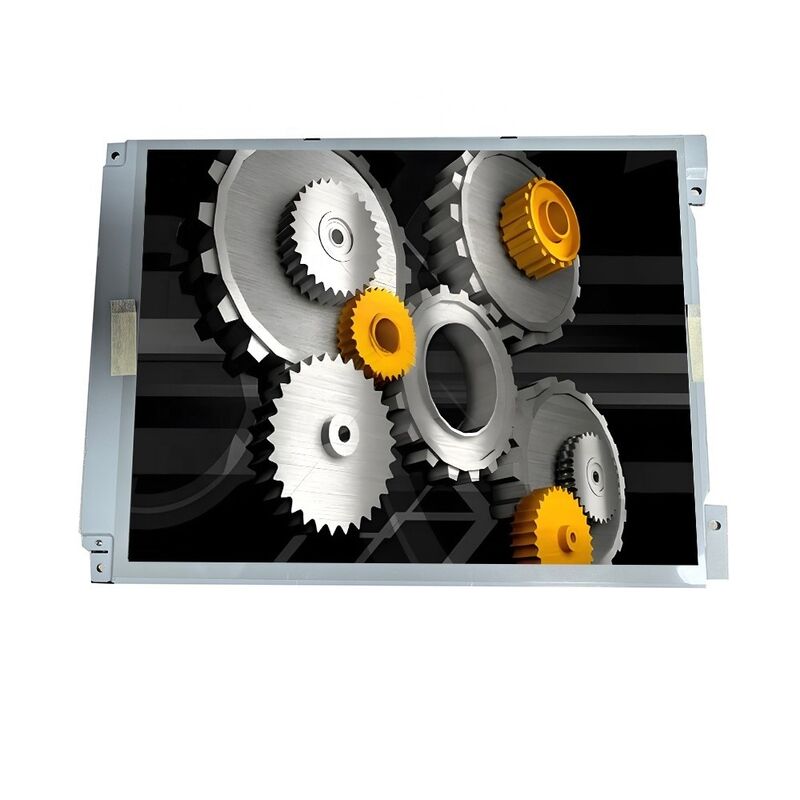

Sharp LQ104V1LG81 10.4" VGA TFT-LCD Display

High-performance 10.4-inch TFT-LCD display module with 640*480 VGA resolution, engineered for demanding industrial applications requiring reliable operation across wide temperature ranges.

Note: This product has reached end-of-life (EOL). Limited stock available - please order promptly.

Key Features

640*480 VGA resolution with 76 PPI for clear display
450 cd/m² high brightness for excellent visibility
TN technology with 80/80/65/80 viewing angles

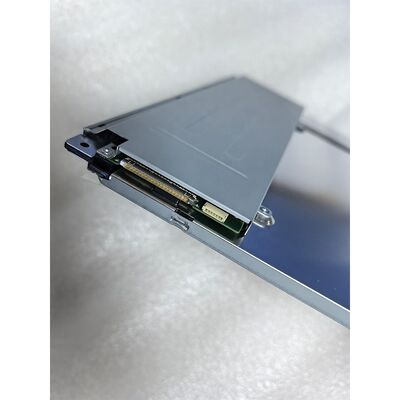

LVDS interface with 20-pin connector for reliable data transmission
800:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
262K color support with 50% NTSC color gamut
Wide operating temperature range: -30°C to 80°C

Technical Specifications

Panel Model	LQ104V1LG81	Panel Brand	Sharp
Size	10.4 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)*480, VGA 76PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	246.5(H)179.3(V)13(D) mm	Display Mode	TN, Normally White, Transmissive
Active Area	211.2(W)*158.4(H) mm	Response Time	35ms (Typ.)
Display Colors	262K, 50% NTSC	Light Source	WLED, 50K hours
Viewing Angle	80/80/65/80 (CR≥10)	Touch Screen	Without
Brightness	450 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.)	Frame Rate	60Hz
Interface Type	LVDS (1 ch, 6-bit), 20 pins	FPC Connector	Pitch 1.25mm
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
Medical equipment
EV Charger Display
Industrial Control Display

Customization Options

This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
