Embedded HMI Industrial TFT Display G121SN01 V403 7S3P WLED

Brand Name:	AUO
MOQ:	1
Price:	$96/pieces 1-99 pieces
Payment Terms:	,L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

12.1"

Supplier Type:

Original Brand

Backlight Type:

7S3P WLED , 50K Hours , With LED Driver

Resolution:

800(RGB)x600, SVGA 82PPI, 800(RGB)x600, SVGA 82PPI

Brightness:

500 Cd/m² (Typ.)

Operating Temperature:

Operating Temp.: -30 ~ 85 °C

Display Type:

TN, Normally White, Transmissive

Mounting Type:

Connector

Screen Size:

279 X 209 X9.5 (HxVxD)

Communication Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Panel Type:

A-Si TFT-LCD, LCM

Outline:

279 X 209 X9.5 (HxVxD)

Luminance:

500 Cd/m² (Typ.)

Display Mode:

TN, Normally White, Transmissive

Color Depth:

262K/16.2M 55% NTSC

Lamp Type:

7S3P WLED , 50K Hours , With LED Driver

Touch Screen:

Without

Input Voltage:

3.3V (Typ.)

Signal Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Highlight:

Embedded Industrial TFT Display

HMI Industrial TFT Display

G121SN01 V403

Product Description

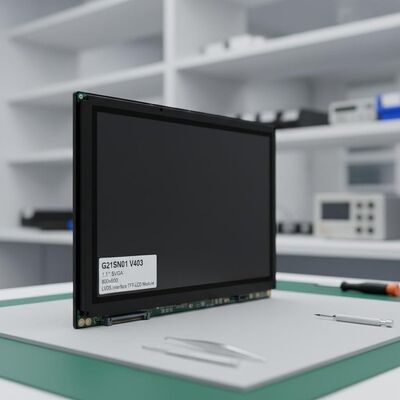

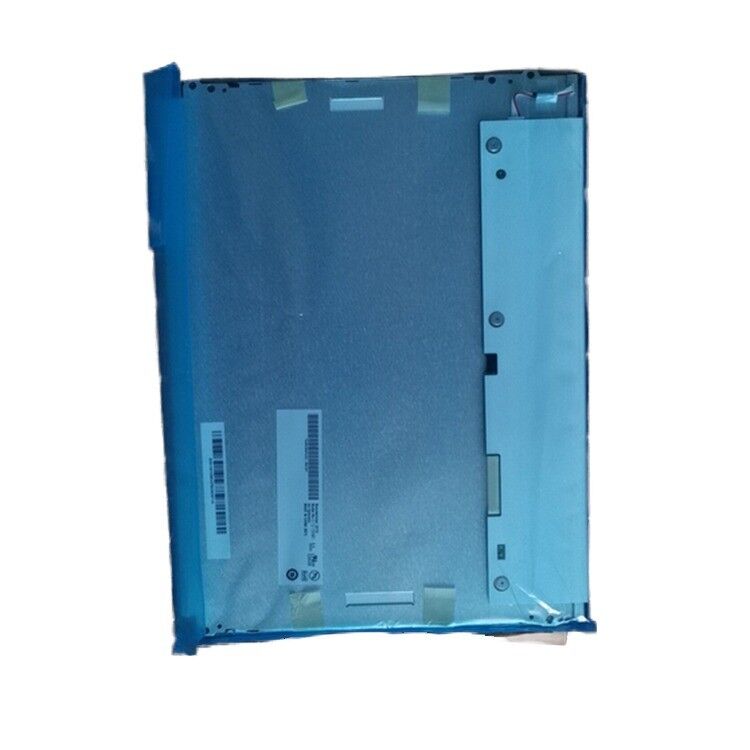

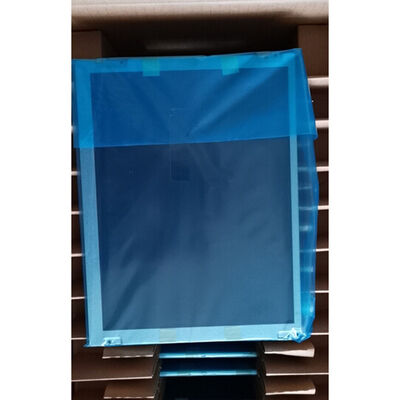

G121SN01 V403 AUO 12.1" 800*600 SVGA TFT-LCD LVDS Industrial Display

The G121SN01 V403 is a 12.1-inch diagonal TFT-LCD display module from AUO, featuring SVGA 800*600 resolution with LVDS interface. This industrial-grade panel offers reliable performance for demanding applications with wide temperature tolerance and long-lasting LED backlight system.

Key Features

High brightness: 500 cd/m² typical
Wide operating temperature: -30°C to 85°C
Long-life WLED backlight: 50,000 hours
LVDS interface with 20-pin connector
Antiglare surface with hard coating (3H)
700:1 contrast ratio for clear image quality
Compact outline: 279*209*9.5 mm

Technical Specifications

Brand	AUO
Model P/N	G121SN01 V403
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800*600 SVGA, 82 PPI
Active Area	246*184.5 mm
Brightness	500 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.)
Viewing Angle	80/80/65/75
Response Time	25/10 ms (Typ.)
Display Colors	262K/16.2M, 55% NTSC
Interface	LVDS (1 ch, 6/8-bit)
Input Voltage	3.3V (Typ.)
Operating Temperature	-30°C to 85°C

Applications

Industrial control systems
Medical equipment displays
Test and measurement instruments
Human-machine interfaces (HMI)
Embedded computing systems

Why Choose Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and advantageous supply resources, we deliver fast, reliable service and superior first-tier support for all your display needs.
