Original Tianma TM101JDHG33-00 10.1-Inch 1280x800 WXGA High Brightness 900nits Wide Temperature Industrial LCD Display Module

Name: Original Tianma TM101JDHG33-00 10.1-Inch 1280x800 WXGA High Brightness 900nits Wide Temperature Industrial LCD Display Module
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM101JDHG33-00
Price: 50.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM101JDHG33-00
MOQ:	1
Price:	$99/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

10.1 Inch

Brand:

Tianma

Supplier Type:

Original Brand

Display Type:

SFT, Normally Black, Transmissive

Module Outsize(mm):

229.8(W)x149(H) X9.6(D) Mm

Resolution:

1280(RGB)x800, WXGA 149PPI, 1280(RGB)x800, WXGA 149PPI

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Brightness:

900 Nits, 900cd/m2

Contrast Ratio:

700:1 (Typ.) (TM)

Backlight Type:

WLED , 40K Hours , With LED Driver

Interface:

LVDS (1 Ch, 6/8-bit) , 40 Pins Connector

Touch Screen:

Without

Operating Temperature:

Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C

Application:

Outdoor High Brightness Healthcare Industrial

MPQ:

18pcs

Warranty:

12 Months

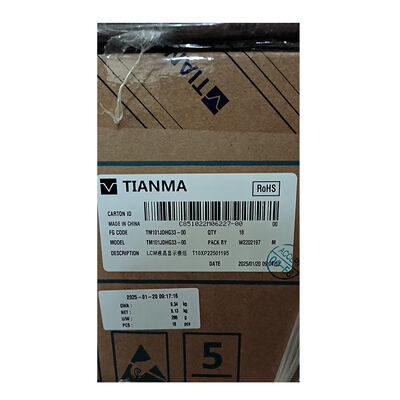

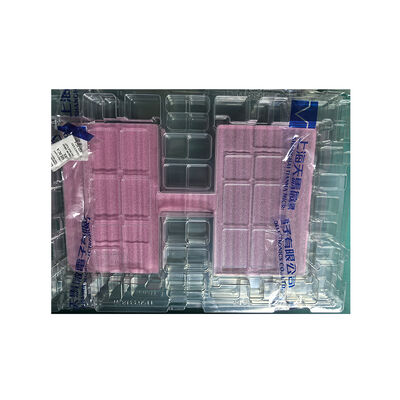

Packaging Details:

18pcs/Box

Highlight:

tianma tft lcd display

tianma industrial tft display

1280x800 tft lcd display

Product Description

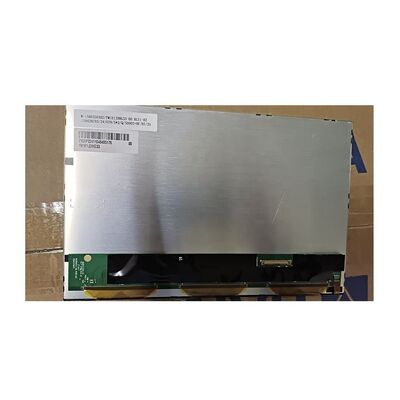

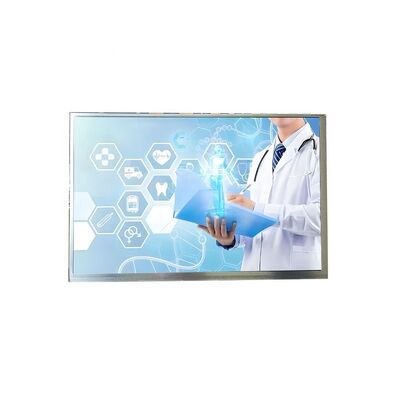

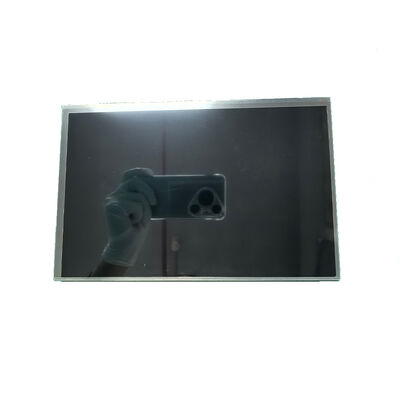

Original Tianma TM101JDHG33-00 10.1-Inch Industrial LCD Display

High-brightness 10.1-inch WXGA TFT-LCD display module with 1280*800 resolution, designed for demanding industrial and healthcare applications requiring reliable operation in extreme environments.

Mass Production Available: We can supply large quantities with competitive pricing. Orders are warmly welcome!

Key Features

1280*800 WXGA resolution with 149 PPI for exceptional clarity
900 cd/m² high brightness for excellent visibility in bright environments
SFT technology with wide viewing angles (85/85/85/85)
LVDS interface with 40-pin connector for reliable data transmission
700:1 contrast ratio for superior image quality
WLED backlight with 40,000 hours lifespan
262K/16.7M color support with 50% NTSC color gamut
Wide temperature range: -30°C to 80°C operation, -40°C to 80°C storage

Technical Specifications

Panel Model	TM101JDHG33-00	Panel Brand	Tianma
Size	10.1 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800, WXGA 149PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	216.96(W)*135.6(H) mm	Display Mode	SFT, Normally Black, Transmissive
Active Area	229.81499.6 (HVD) mm	Response Time	25 ms (Typ.)
Display Colors	262K/16.7M 50% NTSC	Light Source	WLED, 40K hours, With LED Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	900 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	700:1 (Typ.)	Application	Industrial Outdoor High Brightness, Healthcare
Frame Rate	60Hz	Interface Type	LVDS (1 ch, 6/8-bit), 40 pins Connector
Storage Temperature	-40°C to 80°C	FPC Connector	JAE, HD1S040HA1, Pitch 0.5mm
Operating Temperature	-30°C to 80°C

Applications

Industrial equipment and machinery
CNC machine displays
Medical equipment and healthcare devices
EV Charger displays
Outdoor high-brightness applications
Industrial control displays
Gaming equipment

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional: Touchscreen integration solutions available upon request.
