Industrial TFT LCD Display Module 7inch 1280x800 WXGA TM070JVHG33-01 Tianma

Name: Industrial TFT LCD Display Module 7inch 1280x800 WXGA TM070JVHG33-01 Tianma
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM070JVHG33-01
Price: 44.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM070JVHG33-01
MOQ:	1
Price:	$88/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Final Specification_TM070JV....1.pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

7inch

Brand:

Tianma

Supplier Type:

Original Brand

Module Outsize(mm):

181.76*125.6*10.7 (H*V*D)

Resolution:

1280(RGB)*800 (WXGA) 217PPI

Viewing Angle:

85/85/85/85 (Typ.)(CR 10)

Brightness:

500cd/m2

Contrast Ratio:

800:1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Screen:

PCAP

Touch Driver IC:

ILI2511

MPQ:

36pcs

Warranty:

12 Months

Application:

VOIP Phone Industrial Medical Device EV Charger Display

Packaging Details:

36pcs/Box

Highlight:

7inch tft lcd display module

1280x800 tft lcd display module

TM070JVHG33-01

Product Description

TM070JVHG33-01 Tianma 7-Inch TFT-LCD Display

High-performance 7-inch TFT-LCD display module with 1280×800 WXGA resolution, designed for industrial applications requiring reliable visual performance in wide temperature environments.

Mass prodcution started in Q3,2018.

Key Features

1280×800 WXGA resolution with 217 PPI for sharp, detailed imagery
500 cd/m² high brightness for excellent visibility
SFT technology with 85/85/85/85 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
800:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
262K/16.7M color support with 50% NTSC color gamut
Projected capacitive touch screen with USB interface
Wide operating temperature range: -20°C to 70°C

Technical Specifications

Panel Model	TM070JVHG33-01	Panel Brand	Tianma
Size	7 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800 (WXGA) 217PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	181.76×125.6×10.7 mm (H×V×D)	Display Mode	SFT, Normally Black, Transmissive
Active Area	149.76×93.6 mm (H×V)	Response Time	35 ms (Typ.)
Display Colors	262K/16.7M 50% NTSC	Light Source	WLED, 50K hours
Viewing Angle	85/85/85/85 (CR≥10)	Touch Screen	PCAP, USB Interface
Brightness	500 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.)	Application	VOIP Phone, Industrial, Medical Equipment
Frame Rate	60Hz	Storage Temperature	-30°C to 80°C
Interface Type	LVDS (1 ch, 6/8-bit)	Operating Temperature	-20°C to 70°C
FPC Connector	JAE, FI-SE20P-HFE, Pitch 1.25mm

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
VOIP phones
Medical equipment
EV Charger Display
Industrial Control Display

Customization Options

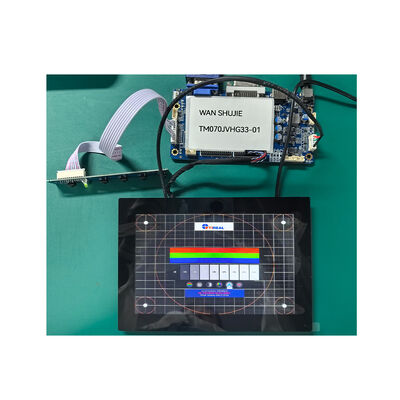

It can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct use in your products.
