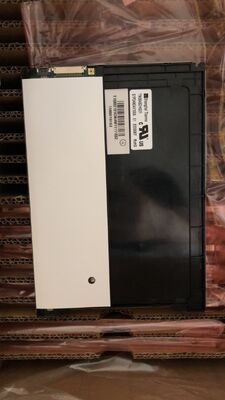

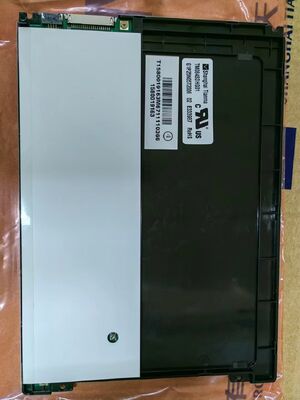

8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02

Name: 8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM084SDHG01-02
Price: 29.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM084SDHG01-02
MOQ:	1
Price:	$57/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Specification of TM084SDHG0....0.pdf

Type:

TFT

Display Size:

8.4inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)x600, SVGA 119PPI

Module Outsize(mm):

203(H)x142.5(V) X5.9(D) Mm

Viewing Angle:

70/70/60/70 (Typ.)(CR≥10)

Brightness:

350cd/m2

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Withtout

Application:

Industrial Equipment

Good View At:

6 O'clock

Voltage Supply:

3.3V (Typ.)

Highlight:

8.4inch spi lcd module

800x600 spi lcd module

800x600 tft lcd display screen

Product Description

Tianma TM084SDHG01-02 8.4" SVGA Industrial Display Module

High-performance 8.4-inch TFT-LCD display module with 800×600 SVGA resolution and LVDS interface, designed for industrial equipment applications. This industrial-grade display delivers reliable visual performance without integrated touch functionality.

Key Features

8.4-inch diagonal TFT-LCD display with 119 PPI pixel density
800×600 SVGA resolution for clear image quality
LVDS interface with 20-pin FPC connector for reliable data transmission
350 cd/m² high brightness for excellent visibility
500:1 contrast ratio with 262K/16.7M color support
Operating temperature range: -20°C to 70°C
Long-life WLED backlight with 50,000-hour lifespan

Technical Specifications

Panel Model	TM084SDHG01-02
Panel Brand	Tianma
Size	8.4 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 119PPI
Active Area	170.4mm × 127.8mm
Module Dimensions	203mm(W) × 142.5mm(H) × 5.9mm(D)
Display Mode	TN, Normally White, Transmissive
Response Time	20ms (Typical)
Display Colors	262K/16.7M, 54% NTSC
Brightness	350 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	70/70/60/70 (CR≥10)
Touch Screen	Without
Interface	LVDS (1 ch, 6/8-bit)
Connector	HRS DF19K-20P-1H, Pitch 1.0mm
Power Supply	3.3V (Typical)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Frame Rate	60Hz
Application	Industrial Equipment

Applications

This display module is specifically recommended for industrial equipment, healthcare devices, VOIP phones, and various industrial monitoring applications. Mass production began in Q4 2021.

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

Optional industrial-grade capacitive touch.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
