18.5" Thin Film Transistor Display TFT LCD Module Touch 1920x1080 FHD BOE GV185FHM-N10

18.5" Thin Film Transistor Display TFT LCD Module Touch 1920x1080 FHD BOE GV185FHM-N10

Brand Name:	BOE
Model Number:	GV185FHM-N10
MOQ:	1
Price:	$100/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Type:

Display Size:

18.5"

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Bezel Opening:

410.96(W)*232.04(H) Mm

Treatment:

Antiglare (Haze 25%), Hard Coating (3H)

Contrast Ratio:

1200 : 1 (Typ.) (TM)

Response:

30 (Typ.)(Tr+Td) Ms

Work Mode:

ADS, Normally Black, Transmissive

Backlight:

11S4P WLED , With LED Driver

Touchscreen:

Without

Max. Ratings:

Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C

Highlight:

BOE thin film transistor display

FHD thin film transistor display

18.5" tft lcd module touch

Product Description

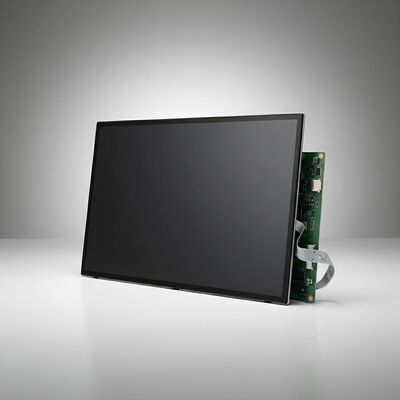

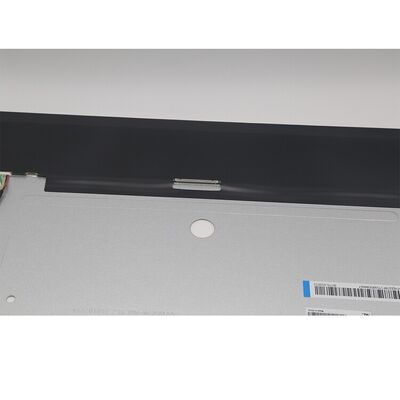

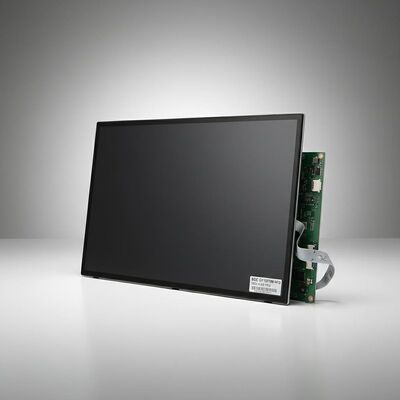

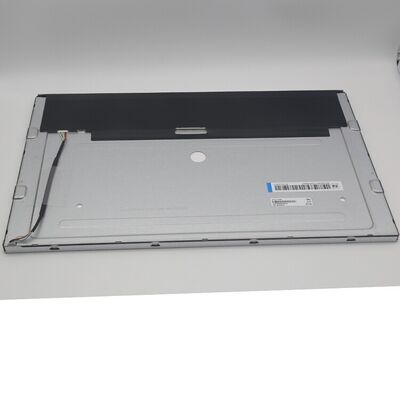

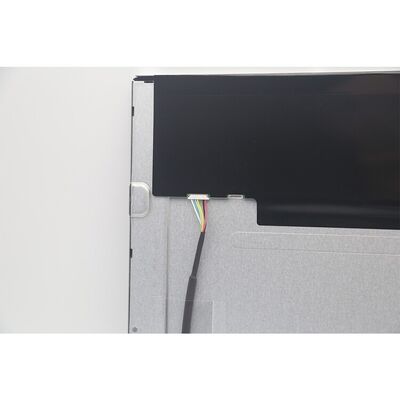

BOE GV185FHM-N10 18.5" FHD LCD Display Module

Product Overview

18.5-inch Full HD TFT-LCD display module with 1920×1080 resolution

High-quality a-Si TFT-LCD technology with 119 PPI pixel density

Features hard coating (3H) and antiglare surface treatment

Key Features

• Full HD 1920×1080 resolution for crisp image quality

• High brightness of 350 cd/m² for clear visibility

• Wide viewing angles of 85/85/85/85

• Durable 3H hard coating surface protection

• Energy-efficient WLED backlight system

• LVDS interface with 30-pin connector

• Wide operating temperature range (-30°C to 80°C)

Technical Specifications

Specification	Details
Brand & Model	BOE GV185FHM-N10-DM31
Diagonal Size	18.5 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD (119 PPI)
Active Area	408.96(W) × 230.04(H) mm
Outline Dimensions	430.4(W) × 254.6(H) × 12.5(D) mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (Typical)
Response Time	30 ms (Typical, Tr+Td)
Color Depth	16.7M colors, 70% NTSC
Backlight System	11S4P WLED with LED Driver
Weight	1.80 kg (Typical)
Power Supply	5.0V (Typical)
Refresh Rate	60Hz
Signal Interface	LVDS (2 channel, 8-bit), 30-pin Connector
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
