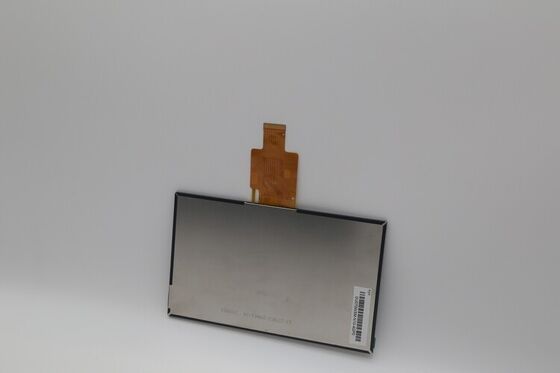

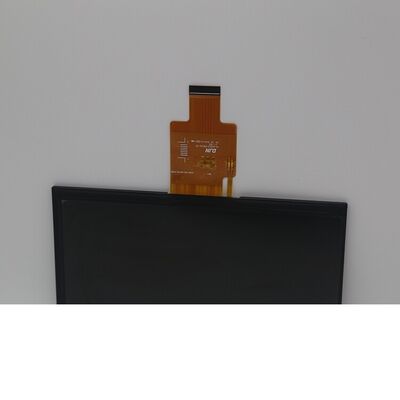

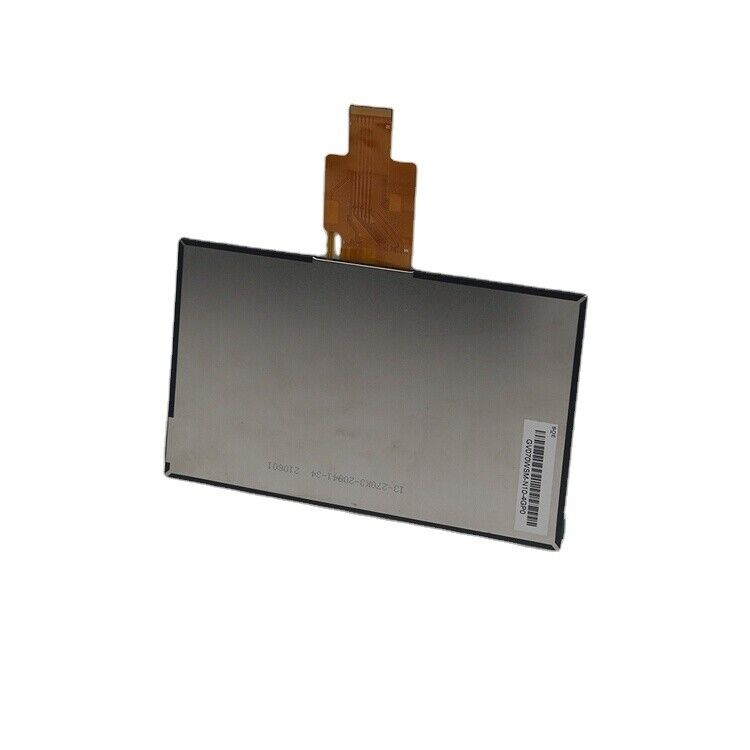

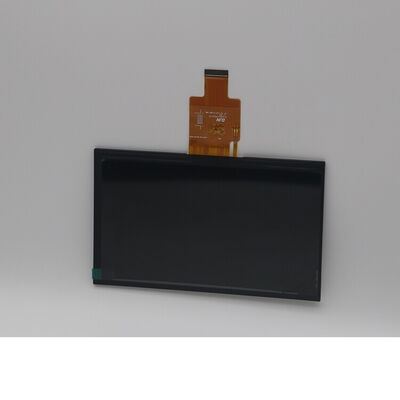

BOE GV070WSM-N10 7" TFT LCD Monitor 1024x600 WSVGA Display Module

Name: BOE GV070WSM-N10 7" TFT LCD Monitor 1024x600 WSVGA Display Module
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: GV070WSM-N10
Price: 13.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GV070WSM-N10
MOQ:	1
Price:	$26/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

7.0"

Supplier Type:

Original Brand

Model P/N:

GV070WSM-N10

Panel Type:

A-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Contrast Ratio:

800:1 (Typ.) (TM)

Response Time:

30 (Typ.)(Tr+Td)

Operating Mode:

ADS, Normally Black, Transmissive

Light Source:

WLED [4S6P] , W/O Driver

Touch Panel:

Without

Interface Type:

LVDS (1 Ch, 8-bit) 32 Pins FPC

Frame Rate:

60Hz

Highlight:

BOE 7 tft lcd monitor

1024x600 7 tft lcd monitor

BOE 7 inch tft lcd monitor

Product Description

GV070WSM-N10 BOE 7.0 Inch 1024×600 WSVGA LVDS Display Module

High-performance 7-inch TFT-LCD display module with 1024×600 WSVGA resolution and LVDS interface, designed for industrial equipment and monitoring applications.

Product Overview

The GV070WSM-N10 is a 7-inch diagonal TFT-LCD display panel developed by BOE. Mass production for this part starts Q3 2021.

This industrial-grade display module delivers reliable visual performance without integrated touch functionality.

Key Features

High resolution 1024×600 WSVGA display with 170 PPI for clear, detailed imagery
Wide viewing angle ensures clarity from multiple perspectives
LVDS interface with 32-pin FPC connector for reliable data transmission
Horizontal orientation design optimized for industrial applications
16.7 million color depth with 50% NTSC color gamut
High brightness of 350 cd/m² for various lighting conditions
Customization options available with cover glass and capacitive touch

Technical Specifications

Brand	BOE
Model P/N	GV070WSM-N10
Diagonal Size	7.0 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.214(W) × 85.92(H) mm
Outline Dimensions	164.9(W) × 100(H) × 3.21(D) mm
Power Supply	3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	85/85/85/85 (Typ.)
Response Time	30ms (Typ.)(Tr+Td)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M 50% NTSC
Light Source	WLED [4S6P], without Driver
Interface Type	LVDS (1 ch, 8-bit) 32 pins FPC
Frame Rate	60Hz
Touch Panel	Without
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C

Applications

This display module is specifically recommended for industrial equipment, printers, and various industrial monitoring applications.

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
