| Brand Name: | Tianma |
| Model Number: | P1850FHF1MB01 |
| MOQ: | 1 |
| Price: | US$168 |

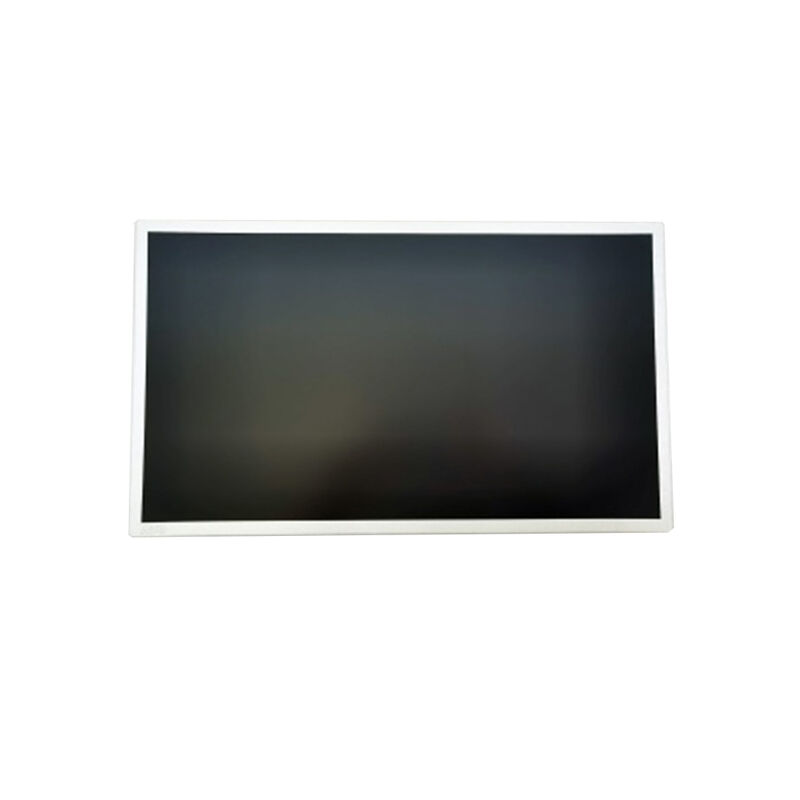

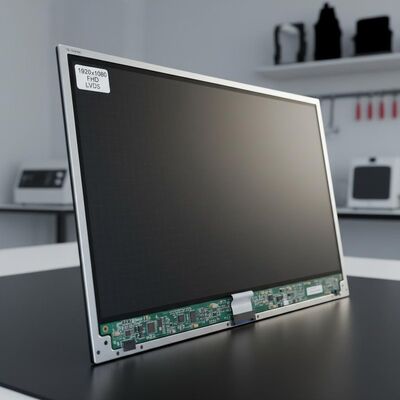

This 18.5-inch diagonal TFT-LCD display panel from Tianma Microelectronics features 1920x1080 Full HD resolution with LVDS interface, designed specifically for industrial equipment applications.
Recommended for industrial devices and various industrial monitors. Mass production began in Q4 2022.
Customization options available with cover glass and capacitive touch elements. Cover plates available in various thicknesses of Corning Gorilla GG3 or Asahi Nitrate with AR, AF, and AG surface treatments. Can be equipped with HDMI driver board for easy debugging and product evaluation.
| Specification | Details | ||
|---|---|---|---|
| Brand | Tianma | ||
| Model P/N |
P1850FHF1MB01 |
||
| Diagonal Size | 18.5" | ||
| Panel Type | a-Si TFT-LCD, LCM | ||
| Resolution | 1920(RGB)×1080, FHD 119PPI | ||
| Pixel Format | RGB Vertical Stripe | ||
| Active Area | 408.96(W)×230.04(H) mm | ||
| Contrast Ratio | 1000:1 (Typ.) (TM) | ||
| Outline Size | 430.4(W)×254.6(H) ×14(D) mm | ||
| Response Time | 25 (Typ.)(Tr+Td) | ||
| Luminance | 400 cd/m² (Typ.) | ||
| Backlight | 9S6P WLED , 50K hours , With LED Driver | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | ||
| Touchscreen | Without | ||
| Good View At | Symmetry | ||
| Application | Industrial | ||
| Color Depth | 16.7M 72% NTSC | ||
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector | ||
| Driver IC | N/A | ||
| Voltage Supply | 5.0V (Typ.) | ||
| Refresh Rate | 60Hz | ||
| Temperature Ratings | Storage: -30°C to 80°C, Operating: -20°C to 70°C | ||
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and superior supply chain resources, we deliver fast, reliable first-tier services to our clients.
