LQ121S1DG81 Sharp capacitive TFT LCD Touch Screen Panel 12.1 Inch 800x600 SVGA

Name: LQ121S1DG81 Sharp capacitive TFT LCD Touch Screen Panel 12.1 Inch 800x600 SVGA
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: LQ121S1DG81
Price: 50.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121S1DG81
MOQ:	1
Price:	$240/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

12.1inch

Brand:

Sharp

Display Type:

TN, Normally White, Transmissive

Module Outsize(mm):

276(H)x209.3(V) X11(D) Mm

Resolution:

800(RGB)x600, SVGA 82PPI, 800(RGB)x600, SVGA 82PPI

Viewing Angle:

80/80/60/80 (Typ.)(CR 10)

Brightness:

450 Nits, 450cd/m2

Contrast Ratio:

800 : 1 (Typ.) (TM)

Communication Interface:

Parallel RGB (1 Ch, 6-bit) , 41 Pins Connector

Backlight Type:

WLED , 70K Hours , With LED Driver

Max. Ratings:

Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C

Touch Screen:

Without

Application:

Industrial

MPQ:

20pcs

Warranty:

12 Months

Packaging Details:

20pcs/Box

Highlight:

LQ121S1DG81 tft lcd touch screen

800x600 tft lcd touch screen

LQ121S1DG81 tft capacitive touchscreen

Product Description

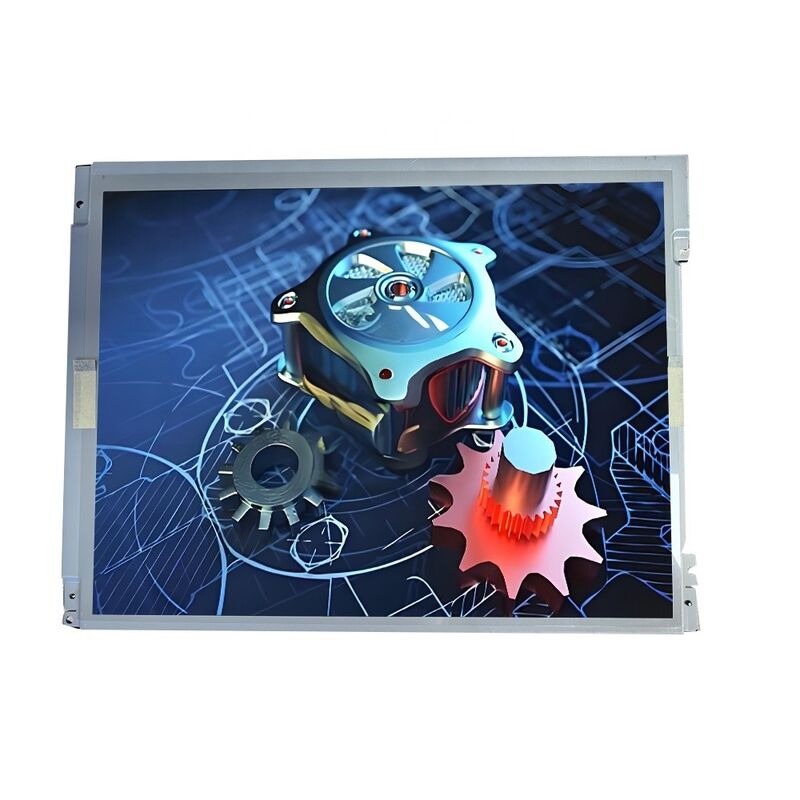

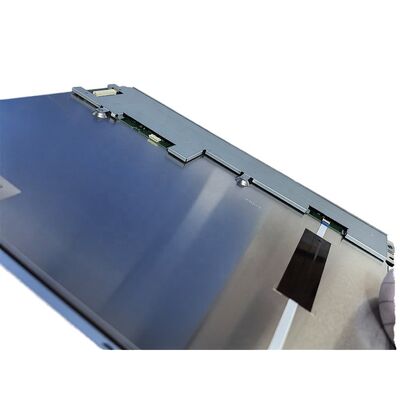

Sharp LQ121S1DG81 12.1" SVGA TFT-LCD Panel

Original 12.1-inch 800x600 SVGA TFT-LCD panel engineered for wide temperature industrial display applications requiring reliable performance in demanding environments.

Note: This product has reached end-of-life (EOL). Limited stock available - please order promptly.

Key Features

800×600 SVGA resolution with 82 PPI for clear display quality
450 cd/m² high brightness for excellent visibility
TN technology with 80/80/60/80 viewing angles
Parallel RGB interface with 41-pin connector
800:1 contrast ratio for superior image quality
WLED backlight with 70,000 hours lifespan
262K color support with 50% NTSC color gamut
Wide operating temperature range: -30°C to 80°C

Technical Specifications

Panel Model	LQ121S1DG81	Panel Brand	Sharp
Size	12.1 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	276(H)×209(V)×11(D) mm	Display Mode	TN, Normally White, Transmissive
Active Area	246(W)×184.5(H) mm	Response Time	30ms (Typ.)(Tr+Td)
Display Colors	262K 50% NTSC	Light Source	WLED, 70K hours, With LED Driver
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	450 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)	Application	Industrial
Frame Rate	60Hz	Storage Temperature	-30°C to 80°C
Interface Type	Parallel RGB (1 ch, 6-bit), 41 pins	Operating Temperature	-30°C to 80°C

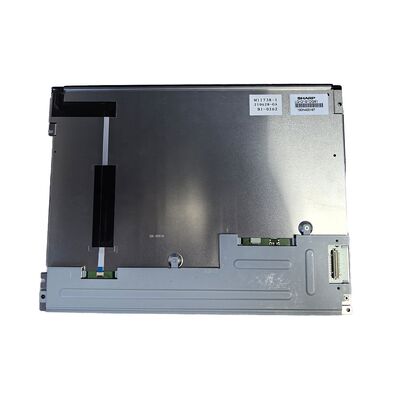

FPC Connector	HRS, DF9MA-41P-1V, Pitch 1.0mm

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
Medical equipment
EV Charger Display
Industrial Control Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
