IPS 7" TFT LCD Color Monitor Display Module 1024x768 XGA Mitsubishi AA104XG02
IPS 7" TFT LCD Color Monitor Display Module 1024x768 XGA Mitsubishi AA104XG02
Brand Name
Mitsubishi
Product Model
AA104XG02
Country Of Origin
Japan
MOQ
1
Unit Price
$520/pieces 1-19 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
XGA 7 tft lcd color monitor
,IPS 7 tft lcd color monitor
,AA104XG02
Type:
TFT
Display Size:
10.4inch
Supplier Type:
Original Brand
Backlight Type:
LED
Resolution:
1024(RGB)x768, XGA 123PPI, 1024(RGB)x768, XGA 123PPI
Brightness:
500cd/m2
Operating Temperature:
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30
Display Type:
IPS
Mounting Type:
Connector
Screen Size:
10.4
Communication Interface:
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Panel Type:
A-Si TFT-LCD, LCM
Module Outsize(Mm):
230(W)X180.2(H)X10(D)
Viewing Angle:
85/85/85/85 (Typ.)(CR 10)
Interface:
LVDS
Touch Panel:
Withtout
Application:
Industrial Equipment
Input Voltage:
3.3V (Typ.)
Frequency:
60Hz
Product Description
Detailed Specifications And Features

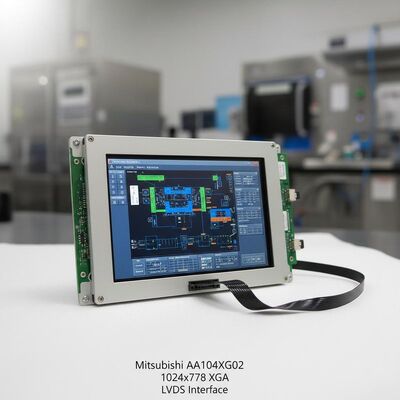

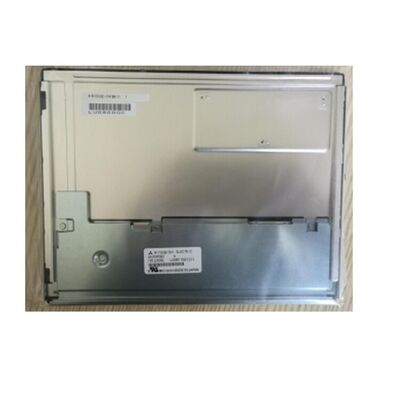

Mitsubishi AA104XG02 10.4" XGA TFT-LCD Display Module
Product Overview
The Mitsubishi AA104XG02 is a high-performance 10.4-inch XGA TFT-LCD display module designed for industrial applications. Featuring 1024×768 resolution and LVDS interface, this display delivers exceptional clarity and reliability in demanding environments.
Key Features
- High brightness 500 cd/m² for excellent visibility
- Wide operating temperature range (-30°C to 80°C)
- Long-life WLED backlight with 100,000 hours lifespan
- LVDS interface with 20-pin connector for reliable connectivity
- Industrial-grade construction for demanding environments
- High contrast ratio (1000:1) for sharp image quality
Applications
Ideal for Industrial Automation / Industrial Control Equipment, Rail Transit / Railway Transportation,Special Equipment etc. Mass production since Q2 2014.
Customization Options
Available with cover glass using Corning Gorilla GG3 in various thicknesses. Surface treatments include AR, AF, and AG. Can be equipped with HDMI driver board for easy debugging and evaluation.
Technical Specifications
| Panel Model | AA104XG02 |
| Panel Brand | Mitsubishi |
| Size | 10.4 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 230(W)×180.2(H)×10(D) mm |
| Active Area | 210.4(W)×157.8(H) mm |
| Display Mode | SWV, Normally Black, Transmissive |
| Response Time | 12/12 ms (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M (50% NTSC) |
| Backlight | WLED, 100K hours lifespan, With LED Driver |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Touch Screen | Without |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Power Supply | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| FPC Connector | I-pex, 20186-020E-11F, Pitch 1.25mm |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
| Application | Industrial |
