TM104TDGP11 10.4" XGA 1024x768 Industrial TFT Display with 1200 cd/m² Brightness and LVDS 20-pin Interface
TM104TDGP11 10.4" XGA 1024x768 Industrial TFT Display with 1200 cd/m² Brightness and LVDS 20-pin Interface
Brand Name
Tianma
Product Model
TM104TDGP11
Country Of Origin
China
MOQ
1
Unit Price
$220 for 1-99pcs
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
10.4" XGA 1024x768 Industrial TFT Display
,1200 cd/m² Brightness TFT-LCD Module
,LVDS 20-pin Interface LCD Display Module
Panel Type:
A-Si TFT-LCD, LCM
Display Size:
10.4"
Brand:
Tianma
Supplier Type:
Original Brand
Pixel Format:
RGB Vertical Stripe
Treatment:
Antiglare, Hard Coating (3H)
Brightness:
1200 Cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Response Time:
4/12 (Typ.)(Tr/Td)
Operating Mode:
IPS, Normally Black, Transmissive
Touch Panel:
Without
Power Supply:
3.3V (Typ.)
Light Source:
WLED , 50K Hours , W/O Driver
Interface Type:
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Environment:
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 6.8G (66.64 M/s²)
Applications:
Industrial Outdoor High Brightness Industrial
Warranty:
12 Months
Product Description
Detailed Specifications And Features

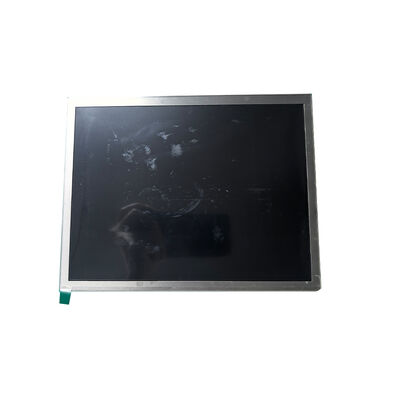

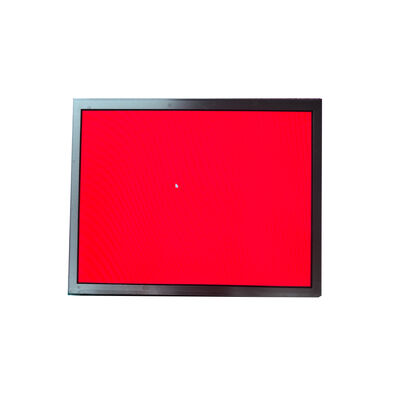

TM104TDGP11 10.4" Industrial Display Module
High-performance 10.4-inch TFT-LCD display panel with 1024×768 XGA resolution, designed for demanding industrial applications requiring reliable visual performance in wide temperature environments.
Product Status: This model started mass production in Q1 2023.
Full pin-to-pin compatible, a direct replacement for AT104XH11. No motherboard modifications or settings required. Perfect solution to the shortage and discontinued production issues of AT104XH11.
Key Features
- 1024×768 XGA resolution with 123 PPI for clear, detailed imagery
- 1200 cd/m² high brightness display for excellent visibility
- IPS technology with 85/85/85/85 viewing angles

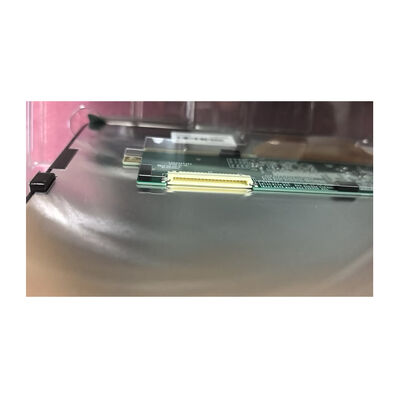

- LVDS interface with 20-pin connector for reliable data transmission
- 1000:1 contrast ratio for superior image quality
- WLED backlight with 50,000 hours lifespan
- 262K/16.7M color support with 50% NTSC color gamut
- Wide operating temperature range: -30°C to 80°C
Technical Specifications
| Brand | Tianma |
| Model P/N | TM104TDGP11 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical stripe |
| Active Area | 210.432(W) × 157.824(H) mm |
| Bezel Opening | 215.4(W) × 161.8(H) mm |
| Outline Dimensions | 229.6(H) × 179.8(W) × 10.46(D) mm |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1200 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| View Direction | All Direction |
| Response Time | 4/12 ms (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 262K/16.7M 50% NTSC |
| Light Source | WLED, 50K hours, w/o Driver |
| Weight | 370g (Typ.) |
| Application | Industrial, Rugged Industry, Outdoor High Brightness |
| Frame Rate | 60Hz |
| Power Supply | 3.3V (Typ) |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 85°C |
Applications
Industrial equipment and machinery Outdoor & rugged displays Elevator Display Heavy-duty industry Heavy-duty Equipment Heavy-duty Applications Automation Equipment Display CNC Machine Display
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
Optional industrial-grade capacitive touch.
