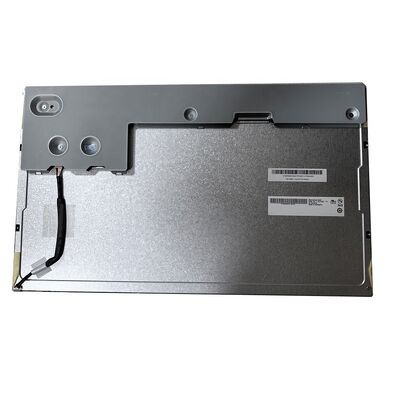

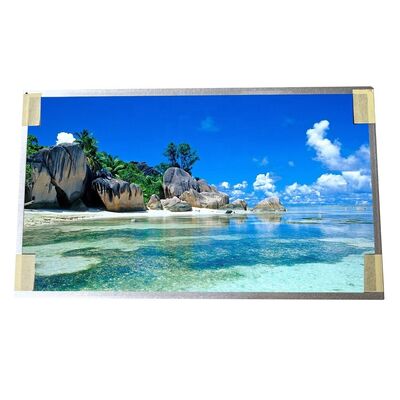

AUO G185XW01 V1 18.5 Inch WXGA Resolution TFT-LCD Panel with 300 cd/m² Brightness for Industrial Surveillance LVDS Display Module

Name: AUO G185XW01 V1 18.5 Inch WXGA Resolution TFT-LCD Panel with 300 cd/m² Brightness for Industrial Surveillance LVDS Display Module
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: G185XW01 V1
Price: 49.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G185XW01 V1
MOQ:	1
Price:	$98/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

18.5inch

Supplier Type:

Original Brand

Module Outsize(mm):

430.4(W)x254.6(H) X16.9(D) Mm

Resolution:

1366(RGB)x768, WXGA 84PPI, 1366(RGB)x768, WXGA 84PPI

Display Type:

TN, Normally White, Transmissive

Brightness:

300 Cd/m² (Typ.), 300cd/m2

Viewing Angle:

85/85/80/80

Communication Interface:

LVDS (1 Ch, 8-bit) , 30 Pins Connector

Backlight Type:

WLED , 50K Hours , With LED Driver

Environment:

Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

Touch Panel:

Withtout

Application:

Industrial Equipment

MPQ:

8pcs

Warranty:

12 Months

Packaging Details:

8pcs/Box

Highlight:

18.5 Inch TFT-LCD Panel

WXGA Resolution LVDS Display Module

300 cd/m² Brightness Industrial TFT Display

Product Description

AUO G185XW01 V1 18.5" WXGA TFT-LCD Panel

High-performance 18.5-inch TFT-LCD display module with 1366*768 WXGA resolution, designed for industrial surveillance, access control, and other demanding applications requiring reliable visual performance.

Product Status: This model is available for industrial applications. Please contact us for current availability and ordering information.

Key Features

1366*768 WXGA resolution with 84 PPI for clear display quality
300 cd/m² brightness for good visibility in various lighting conditions
TN technology with 85/85/80/80 viewing angles
LVDS interface with 30-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
16.7M color support with 66% NTSC color gamut
Wide operating temperature range: -0°C to 60°C

Technical Specifications

Panel Model	G185XW01 V1	Panel Brand	AUO
Size	18.5 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)*768, WXGA 84PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	430.4(H)254.6(V)16.9(D) mm	Display Mode	TN, Normally White, Transmissive
Active Area	409.8(W)*230.4(H) mm	Response Time	3.5/1.5 (Typ.)(Tr/Td)
Display Colors	16.7M 66% NTSC	Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	300 cd/m² (Typ.)	Power Supply	5.0V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Application	Industrial
Frame Rate	60Hz	Storage Temperature	-20°C to 60°C
Interface Type	LVDS (1 ch, 8-bit)	Operating Temperature	-0°C to 60°C
FPC Connector	STM, MSCK2407P30, Pitch 1.0mm

Applications

Industrial equipment and machinery
Elevator display systems
Security monitor displays
CNC machine displays
Access control systems
Surveillance applications

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation. Optional industrial-grade capacitive touch available.

About Wan Display: Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services.
