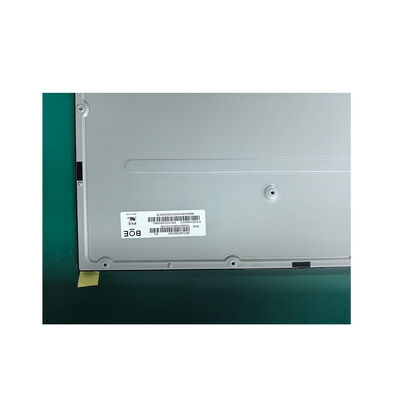

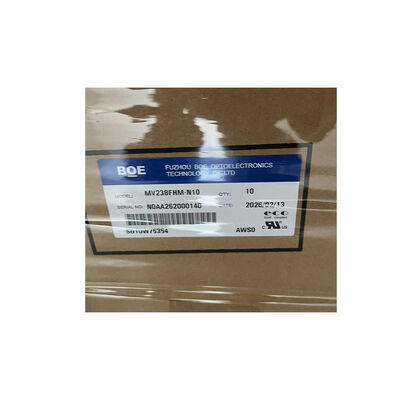

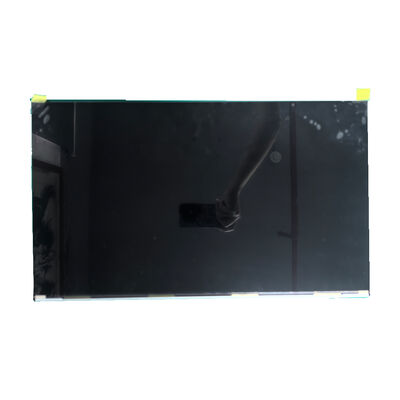

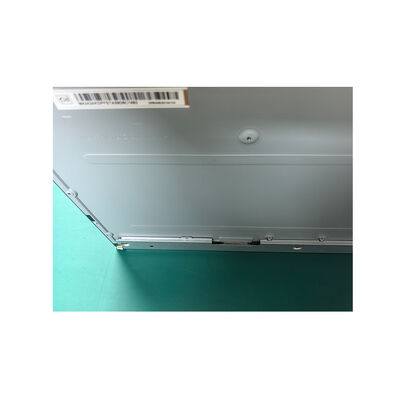

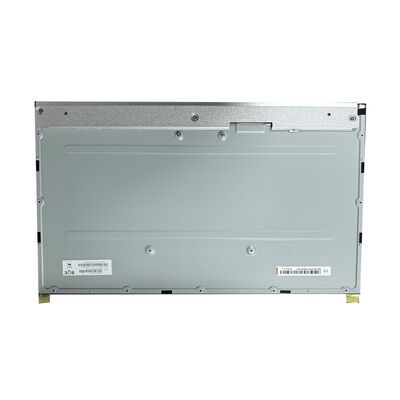

BOE MV238FHM-N20 23.8 inch 1920x1080 FHD 75Hz Refresh Rate Commercial LCD Panel
BOE MV238FHM-N20 23.8 inch 1920x1080 FHD 75Hz Refresh Rate Commercial LCD Panel
Brand Name
BOE
Product Model
DV150X0M-N16
Country Of Origin
China
MOQ
1
Unit Price
US$ 65 for 1-99pcs
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
BOE MV238FHM-N20 LCD panel
,23.8 inch FHD commercial display
,75Hz refresh rate TFT screen
Display Size:
23.8 Inch
Supplier Type:
In Stock
Module Size:
535(W)×313(H)×13.2(D) Mm
Viewing Angleg:
89/89/89/89 (Typ.)(CR≥10)
Surface Luminance:
250 Cd/m2
Contrastratio:
1000:1
Display Mode:
HADS, Normally Black, Transmissive
Refresh Rate:
75Hz
Response Time:
14 (Typ.)(G To G) Ms
Input Voltage:
3.3V (Typ.)
Environment:
Operating Temp. 0 ~ 50 °C, Storage Temp. -20 ~ 60 °C
Signal Interface:
LVDS (2 Ch, 8-bit), 30 Pins Connector
Touch Technology:
PCAP(CTP) Optional
Application:
Desktop Monitor HMI
Warranty:
12months
Product Description
Detailed Specifications And Features
BOE MV238FHM-N20 23.8 inch 1920x1080 FHD 16:9 Commercial LCD Panel
This BOE MV238FHM-N20 is a 23.8-inch FHD 75Hz anti-glare low-blue-light LCD panel, offering reliable, energy-efficient performance ideal for office, home, and commercial applications.
Key Product Features
- Comfortable Viewing Experience: Features low blue light technology and an anti-glare (3H hard coating) surface to reduce eye strain and reflections during long hours of use.
- Smooth Refresh Rate: 75Hz refresh rate ensures fluid motion and responsive performance for everyday tasks.
- Energy-Efficient & Long-Lasting: Typical power consumption of 12.04W with a 30,000-hour WLED backlight lifespan, offering stable performance over extended use.
- Standard Compatibility: LVDS 30-pin interface and 5.0V typical input voltage, compatible with most mainstream driver boards for easy integration.
Technical Specifications
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Basic Information | Manufacturer (Mfr.) | BOE |
| Basic Information | Model Name | MV238FHM-N20 |
| Basic Information | Display Size | 23.8" |
| Basic Information | Panel Type | a-Si TFT-LCD, LCM |
| Display Parameters | Resolution | 1920(RGB)*1080, FHD, 16:9 |
| Display Parameters | Pixel Format | RGB Vertical Stripe |
| Display Parameters | Display Area | 527.04(W)*296.46(H) mm |
| Display Parameters | Outline Size | 535(W)*313(H)*13.2(D) mm |
| Display Parameters | Panel Weight | 2.20Kgs (Typ.) |
| Display Parameters | Surface | Antiglare, Hard coating (3H) |
| Display Parameters | Brightness | 250 cd/m² (Typ.) |
| Display Parameters | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Parameters | Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Parameters | Display Mode | HADS, Normally Black, Transmissive |
| Display Parameters | View Direction | Symmetry |
| Display Parameters | Response Time | 14 (Typ.)(G to G) ms |
| Display Parameters | Display Colors | 16.7M, 74% NTSC, Low Blue Light |
| Display Parameters | Application | Desktop Monitor / Display |
| Backlight & Structure | Frequency | 75Hz |
| Backlight & Structure | Touch Screen | Without |
| Backlight & Structure | Power Consumption | 12.04/13.92W (Typ./Max.) |
| Backlight & Structure | Light Source | 16S4P WLED, 30K hrs, Without Driver |
| Electrical Interface | Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Electrical Interface | Input Voltage | 5.0V (Typ.) |
| Electrical Interface | Connector | UJU,IS100-L30R-C23,Pitch 1.0mm |
| Environmental Specifications | Operating Temperature | 0 ~ 50 °C |
| Environmental Specifications | Storage Temperature | -20 ~ 60 °C |
Typical Applications
- Office & Home Use: Desktop monitors, office workstations, and home entertainment displays.
- Commercial Environments: Retail store displays, conference room monitors, and front-desk information screens.
- Education & Training: Classroom teaching monitors, student learning displays, and training room setups.
- Light Industrial Use: POS systems, basic industrial control terminals, and light-duty HMI applications.
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products. Capacitive or Resistive touchscreen integration solutions available upon request.
