A-Si TFT-LCD Panel NV156FHM-N65 BOE 15.6inch IPS 95% sRGB Notebook Laptop Display 500nits HADS/IPS EDP MPQ 35pcs

Brand Name:	BOE
Price:	$79/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

15.6inch

Supplier Type:

In Stock

Panel Type:

A-Si TFT-LCD Panel

Resolution:

1920x1080

Module Outsize:

350.66 * 216.25 * 2.6

Brightness:

500nits

Viewing Angle:

85/85/85/85 (Typ.)(CR 10)

Color:

1.06B 95% SRGB

Interface:

EDP

Application:

Laptop Display

MPQ:

35pcs

Warranty:

12 Months

Highlight:

lcd industrial tft display

panel tft lcd display

panel industrial tft display

Product Description

Products Description

Panel Model	NV156FHM-N65	Panel Brand	BOE
Size (inch )	15.6inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	350.66(W)×216.25(H) ×2.6(D) mm	Display Mode	HADS, Normally Black, Transmissive
LCD Active area(mm)	344.16(W)×193.59(H) mm	Response Time	30 (Typ.)(Tr+Td)
Display Colors	1.06B 95% sRGB	Light Source	10S6P WLED , 15K hours , With LED Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	500 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)	Used for	Note book, Laptop
Frame Ratio	60Hz	Enviroment	Storage Temp.: -20 ~ 60 °C
Frame Ratio	60Hz	Enviroment	Operating Temp.: 0 ~ 50 °C

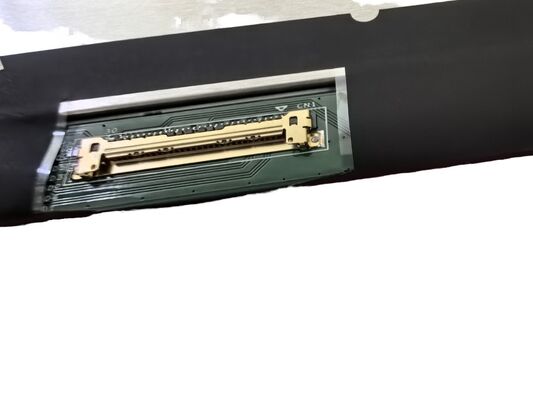

LCM Interface Type	eDP (2 Lanes) , eDP1.4b , HBR1 (2.7G/lane) , 30 pins Connector	FPC connector	I-pex, 20455-030E-66, Pitch 0.5mm

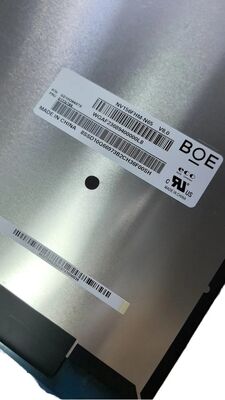

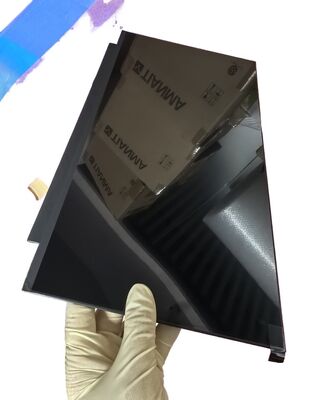

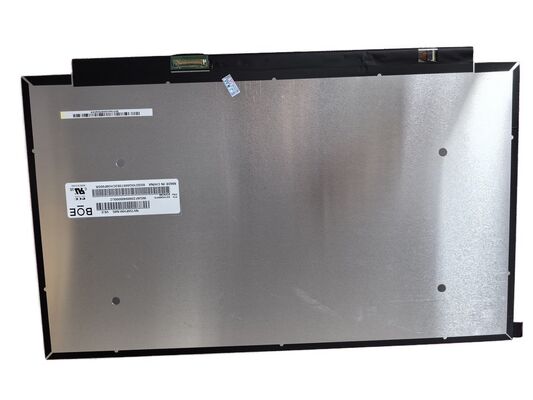

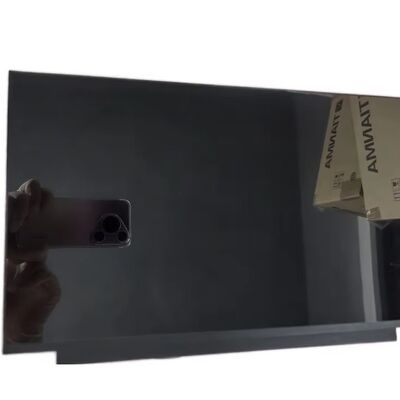

Details Images

Company Profile

FAQ

Q1. What is your lead time?A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way?A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
