| Brand Name: | Sharp |
| Model Number: | LQ064X3LW02 |
| MOQ: | 1 |
| Price: | $115/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

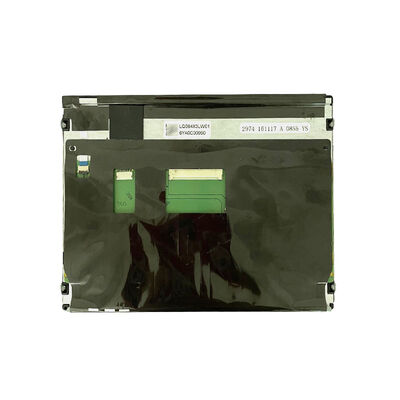

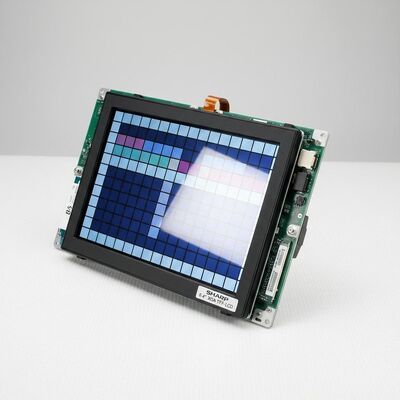

LQ064X3LW02 Sharp 6.4" 1024*768 XGA TFT-LCD Display Module
Product Overview
The LQ064X3LW02 is a 6.4-inch diagonal XGA TFT-LCD display module manufactured by Sharp. This high-quality industrial display features advanced super view (ASV) technology and excellent optical performance for demanding applications.
LQ064X3LW02 Discontinuation Notice
Production of the LQ064X3LW02 (VA-mode panel) will end due to supply chain constraints.
Key Deadlines:
Please confirm your orders as soon as possible.
Key Features
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Sharp |
| Model Number | LQ064X3LW02 |
| Diagonal Size | 6.4 inches |
| Panel Type | a-Si TFT-LCD LCM |
| Resolution | 1024(RGB)*768 (XGA) |
| Active Area | 129.792*97.344 mm |
| Outline Dimensions | 153.4*122*9.9 mm |
| Luminance | 390 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Viewing Angle | 80/80/80/80 (CR≥10) |
| Response Time | 35 ms (Typical) |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -25°C to 70°C |
| Interface | LVDS (1 channel, 8-bit) |
| Weight | 220g |
Applications
Ideal for industrial equipment, medical devices, instrumentation, control systems, and other applications requiring reliable high-performance displays.
Why Choose Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and strategic supply chain partnerships, we deliver fast, reliable service and superior quality components.
