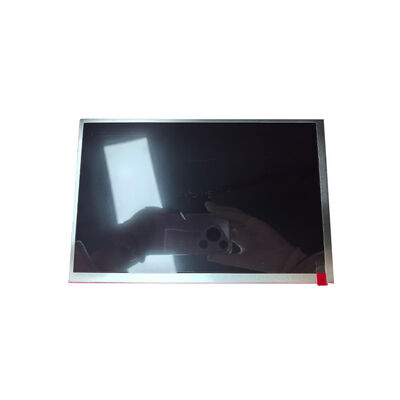

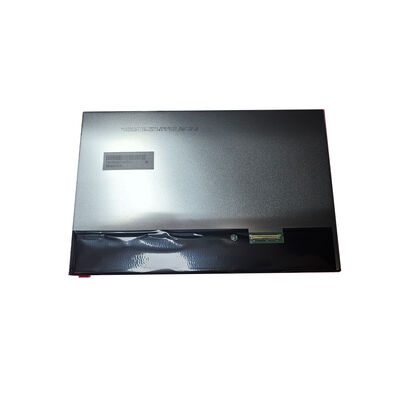

TM101JDHG40 Tianma 10.1Inch Hdmi TFT Thin Film Transistor Liquid Crystal Display 1280x800 WXGA

Name: TM101JDHG40 Tianma 10.1Inch Hdmi TFT Thin Film Transistor Liquid Crystal Display 1280x800 WXGA
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM101JDHG40
Price: 26.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM101JDHG40
MOQ:	1
Price:	$52/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

10.1 Inch

Supplier Type:

Original Brand

Module Outsize(mm):

230.7(W)x152.55(H)x6.8(D)

Display Type:

SFT, Normally Black, Transmissive

Resolution:

1280(RGB)x800, WXGA 149PPI, 1280(RGB)x800, WXGA 149PPI

Brightness:

400 Cd/m² (Typ.), 400 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Backlight Type:

6S5P WLED , 30K Hours , With LED Driver

Signal Interface:

LVDS (1 Ch, 6/8-bit) , 40 Pins Connector

Touch Panel:

Without

Application:

Industrial Display VIOP Phone Healthcare IoT And Embedded Systems

Environment:

Operating Temperature: 20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Warranty:

12months

Packaging Details:

19pcs/Box

Highlight:

Tianma thin film transistor liquid crystal display

10.1Inch thin film transistor liquid crystal display

Tianma hdmi tft display

Product Description

TM101JDHG40 Tianma 10.1 Inch TFT-LCD Panel

Industrial VOIP Phone Healthcare Display Screen Module designed for reliable performance in demanding environments.

Product Overview

The TM101JDHG40 is a 10.1-inch diagonal TFT-LCD display panel developed by Tianma.

Mass prodcution for the model starts in Q4 2020.

This industrial-grade display module delivers exceptional visual performance with high brightness and wide viewing angles suitable for various professional applications.

Key Features

1280*800 WXGA resolution with 149 PPI for clear, detailed imagery
400 cd/m² brightness for excellent visibility
SFT technology with 85/85/85/85 viewing angles for clarity from multiple perspectives
LVDS interface with 40-pin connector for reliable data transmission
800:1 contrast ratio for superior image quality
WLED backlight with 30,000 hours lifespan
262K/16.7M color support with 50% NTSC color gamut
Compact module dimensions: 230.7 * 152.55 * 6.8 mm

Technical Specifications

Panel Model	TM101JDHG40	Panel Brand	Tianma
Size	10.1 Inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800, WXGA 149PPI	Pixel Format	RGB Vertical Stripe
Active Area	216.96 * 135.6 mm	Display Mode	SFT, Normally Black, Transmissive
Response Time	25 ms (Typ.)	Light Source	6S5P WLED, 30K hours
Viewing Angle	85/85/85/85 (CR≥10)	Touch	Without
Brightness	400 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.)	Frame Ratio	60Hz
Operating Temperature	-20 ~ 70°C	Storage Temperature	-30 ~ 80°C
Interface Type	LVDS (1 ch, 6/8-bit)	FPC Connector	I-pex, 20455-040E-76, Pitch 0.5mm

Applications

Industrial equipment and machinery
VOIP Phone systems
Healthcare medical devices
Industrial monitoring and control systems
Transportation & Logistics displays
IoT and embedded systems

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
