15.6 Inch EDP1.2 Industrial TFT Touch Screen Display 1920x1080 FHD BOE NV156FHM-N22

Name: 15.6 Inch EDP1.2 Industrial TFT Touch Screen Display 1920x1080 FHD BOE NV156FHM-N22
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: NV156FHM-N22
Price: 24.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV156FHM-N22
MOQ:	1
Price:	$48/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

15.6inch

Brand:

BOE

Resolution:

1920(RGB)×1080, FHD 141PPI

Module Outsize(mm):

350.66(H)×216.15(V) ×3.2(D) Mm

Active Area:

344.16(W)×193.59(H) Mm

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Brightness:

300cd/m2

Contrast Ratio:

1200:1 (Typ.) (TM)

Interface:

EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins Connector

Touch Panel:

Withtout

Application:

Laptop

Environment:

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

MPQ:

35pcs

Warranty:

12 Months

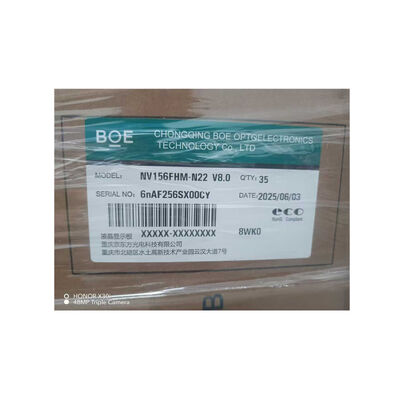

Packaging Details:

35pcs/Box

Highlight:

BOE tft touch screen

eDP1.2 tft touch screen

1920x1080 15 inch tft screen

Product Description

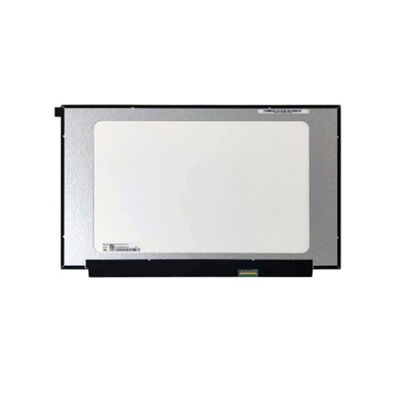

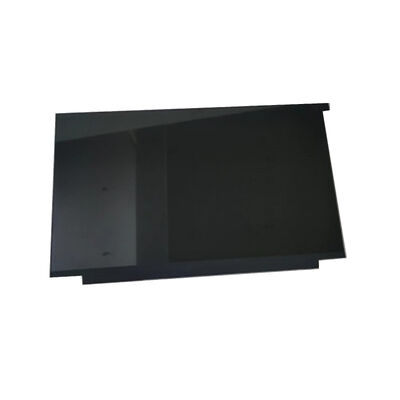

NV156FHM-N22 BOE 15.6-Inch consumer TFT Display

High-performance 15.6-inch TFT-LCD display module with 1920×1080 FHD resolution, engineered for notebook, laptop, and HMI applications.

Key Features

1920×1080 FHD resolution with 141 PPI for exceptional clarity
300 cd/m² brightness for excellent visibility
ADS technology with 85/85/85/85 viewing angles
eDP interface with 30-pin connector for reliable data transmission
1200:1 contrast ratio for superior image quality
WLED backlight with 15,000 hours lifespan
262K color support with 45% NTSC color gamut
Wide operating temperature range: 0°C to 50°C

Technical Specifications

Panel Model	NV156FHM-N22
Panel Brand	BOE
Size	15.6 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD, 141PPI
Pixel Format	RGB Vertical Stripe
Module Dimensions	350.66(H)×216.15(V)×3.2(D) mm
Display Mode	ADS, Normally Black, Transmissive
Active Area	344.16(W)×193.59(H) mm
Response Time	30ms (Typ.)(Tr+Td)
Display Colors	262K, 45% NTSC
Light Source	WLED [8S5P], 15K hours, With LED Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Touch Screen	Without
Brightness	300 cd/m² (Typ.)
Power Supply	3.3V (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
Application	Laptop, Notebook, HMI device
Frame Rate	60Hz
Interface Type	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins Connector
Storage Temperature	-20°C to 60°C
Operating Temperature	0°C to 50°C
Form Style	Slim (PCBA Flat, T≤3.2mm)
FPC Connector	JAE, FI-SE20P-HFE, Pitch 1.25mm

Applications

Notebook
Laptop
All-in-One PCs
Desktop Monitors
Personal Mobile Devices

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
