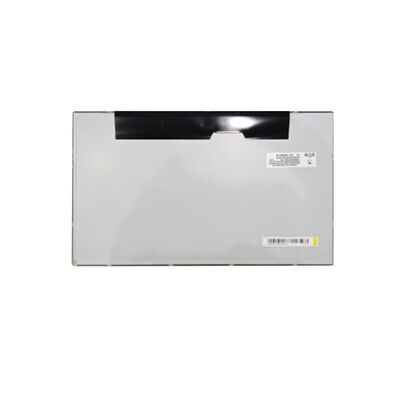

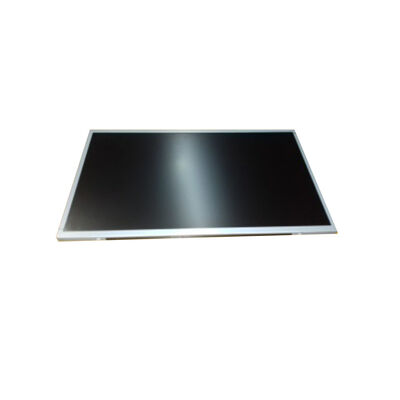

18.5 Inch HMI TFT LCD Monitor Display Module 1366x768 WXGA MT185WHM-N10 BOE

Name: 18.5 Inch HMI TFT LCD Monitor Display Module 1366x768 WXGA MT185WHM-N10 BOE
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: MT185WHM-N10
Price: 20.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MT185WHM-N10
MOQ:	1
Price:	$39/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

18.5 Inch

Supplier Type:

Original Brand

Module Outsize(mm):

430.4(H)x254.6(V)x11.4(D) Mm

Resolution:

1366(RGB)x768, WXGA 84PPI, 1366(RGB)x768, WXGA 84PPI

Brightness:

200cd/m2

Contrast Ratio:

600:1 (Typ.) (TM)

Viewing Angle:

45/45/25/40 (Typ.)(CR≥10)

Interface:

LVDS (1 Ch, 8-bit) , 30 Pins Connector

Backlight:

WLED [14S2P] , 30K Hours , W/O Driver

Environment:

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Application:

Desktop Monitor HMI

MPQ:

13pcs

Warranty:

12 Months

Packaging Details:

13pcs/Box

Highlight:

18.5 Inch tft lcd monitor

1366x768 tft lcd monitor

MT185WHM-N10

Product Description

MT185WHM-N10 BOE 18.5 Inch TFT LCD Display Module

18.5-inch TFT-LCD display module with 1366×768 WXGA resolution, designed for HMI desktop monitor applications requiring reliable performance.

Key Features

1366×768 WXGA resolution with 84 PPI for clear imagery
200 cd/m² brightness display for good visibility
TN technology with wide viewing angles
LVDS interface with 30-pin connector for reliable data transmission
600:1 contrast ratio for superior image quality
WLED backlight with 30,000 hours lifespan
16.7M color support with 72% NTSC color gamut
operating temperature range: 0°C to 50°C

Technical Specifications

Panel Model	MT185WHM-N10
Panel Brand	BOE
Size	18.5 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Module Dimensions	430.4(W)×254.6(H)×11.4(D) mm
Active Area	409.8(W)×230.4(H) mm
Display Mode	TN, Normally White, Transmissive
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle	45/45/25/40 (Typ.)(CR≥10)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Display Colors	16.7M 72% NTSC
Light Source	14S2P WLED, 30K hours
Frame Rate	60Hz
Interface Type	LVDS (1 ch, 8-bit), 30 pins Connector
FPC Connector	UJU, IS100-L30O-C23, Pitch 1.0mm
Power Supply	3.3V (Typ.)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Touch Screen	Without
Application	Desktop Monitor

Applications

HMI Display
Desktop Monitor

Customization Options

Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
