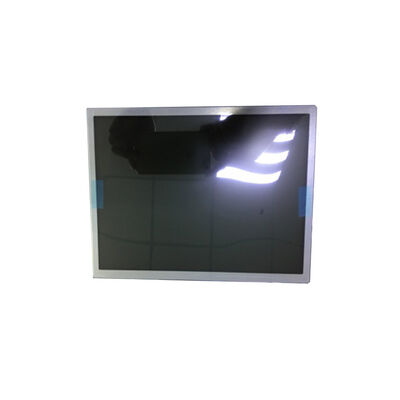

Quality Original Kyocera 10.4 inch TCG104VGLCHANN-AN40 640x480 TFT-LCD Wide Temperature Outdoor High Brightness 1100nit Industrial Display Module factory

Original Kyocera 10.4 inch TCG104VGLCHANN-AN40 640x480 TFT-LCD Wide Temperature Outdoor High Brightness 1100nit Industrial Display Module

Brand Name

Kyocera

Country Of Origin

China

Unit Price

$165/pieces 1-99 pieces

Product Details

Highlight:

640x480 tft lcd display

640x480 industrial tft display

lcd industrial tft display

Type: TFT

Display Size: 10.4 Inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 640(RGB)x480, VGA 76PPI

Module Outsize(Mm): 230(W)x180.2(H) X11(D) Mm

Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)

Brightness: 1100cd/m2

Signal Interface: LVDS (1 Ch, 8-bit) , 20 Pins Connector

Touch Panel: Without

Application: Industrial, Outdoor High Brightness

Warranty: 12months

Enviroment: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Product Description

Detailed Specifications And Features

Original Kyocera 10.4 inch TCG104VGLCHANN-AN40 640x480 TFT-LCD Wide Temperature Outdoor High Brightness 1100nit Industrial Display Module

Products Description

Panel Model	TCG104VGLCHANN-AN40	Panel Brand	Kyocera
Size (inch )	10.4inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 76PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	230(H)×180.2(V) ×11(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	211.2(W)×158.4(H) mm	Response Time	8/22 (Typ.)(Tr/Td)
Display Colors	16.7M 49% NTSC	Light Source	WLED , 70K hours , With LED Driver
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Touch	Without
Brightness	1100cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)	Used for	Industrial, Outdoor High Brightness
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 80°C
LCM Interface Type	LVDS (1 ch, 8-bit) , 20 pins Connector	FPC connector	JAE, FI-SE20P-HFE, Pitch 1.25mm

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
