Quality Industrial Mobile Phone Handheld PDA Display Modules Tianma TM035PDHG03 3.5 Inch 320x480 HVGA TFT LCD Screen CPU RGB SPI factory

Industrial Mobile Phone Handheld PDA Display Modules Tianma TM035PDHG03 3.5 Inch 320x480 HVGA TFT LCD Screen CPU RGB SPI

Brand Name

Tianma

Country Of Origin

China

Unit Price

$16/pieces 1-99 pieces

Product Details

Highlight:

tianma tft lcd screen

tianma tft lcd display screen

rgb tft lcd screen

Type: TFT

Display Size: 3.5inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 320(RGB)x480, HVGA 166PPI

Module Outsize(Mm): 55.26(W)x84.69(H) X2.3(D) Mm

Viewing Angle: 70/70/70/60 (Typ.)(CR≥10)

Brightness: 300cd/m2

Interface: CPU/RGB/SPI , 45 Pins FPC

Touch Screen: Without

Application: Industrial, Mobile Phone, Handheld, PDA

MPQ: 270pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Industrial Mobile Phone Handheld PDA Display Modules Tianma TM035PDHG03 3.5 Inch 320x480 HVGA TFT LCD Screen CPU RGB SPI

Products Description

Panel Model	TM035PDHG03	Panel Brand	Tianma
Size (inch )	3.5inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×480, HVGA 166PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	55.26(W)×84.69(H) ×2.3(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	48.96(W)×73.44(H) mm	Response Time	25 (Typ.)(Tr+Td)
Display Colors	65K/262K 60% NTSC	Light Source	1S6P WLED , 30K hours , Without Driver
Viewing Angle	70/70/70/60 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	300 cd/m² (Typ.)	Power Supply	1.8/2.8V (Typ.)(IOVCC/VCI)
Contrast Ratio	500:1 (Typ.) (TM)	Used for	Industrial, Handheld, PDA, Mobile Phone
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 70°C
LCM Interface Type	CPU/RGB/SPI , 45 pins FPC	FPC connector	Pitch 0.3mm

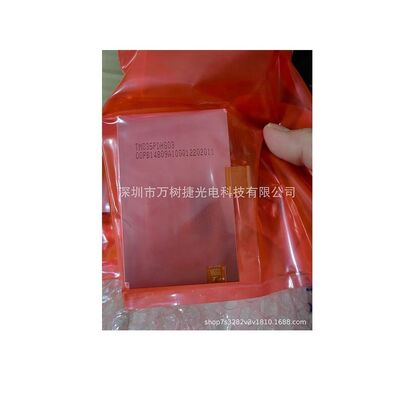

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
