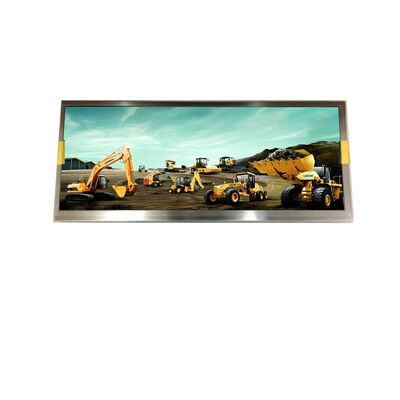

High Brightness 12.3inch Display Hannstar HSD123JPW3-A15 1920x720 850nits Automotive 3G Vibration Wide Temperature Module

Brand Name:	Hannstar
Price:	$75/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

12.3inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)x720 167PPI

Module Outsize(mm):

302(H)x125.4(V) X14.2(D) Mm

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Brightness:

850cd/m2

Interface:

LVDS (2 Ch, 8-bit) , 50 Pins Connector

Touch Screen:

Without

Application:

Outdoor High Brightness Device Automotive Display

MPQ:

20pcs

Warranty:

12 Months

Highlight:

module tft lcd display

module industrial tft display

high brightness tft lcd display

Product Description

Products Description

Panel Model	HSD123JPW3-A15	Panel Brand	Hannstar
Size (inch )	12.3inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720 167PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	302×125.4×14.2 (H×V×D)	Display Mode	IPS Pro, Normally Black, Transmissive
LCD Active area(mm)	292.032(W)×109.512(H) mm	Response Time	25 (Typ.)(Tr+Td) ms
Display Colors	16.7M 75% NTSC	Light Source	11S4P WLED , 30K hours , No Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	850 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)	Used for	Outdoor High Brightness, Automotive Display
Frame Ratio	60Hz	Enviroment	Storage Temp.: -40~ 95 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 85 °C
		Vibration Level	2.9G (28.4 m/s²)
LCM Interface Type	LVDS (2 ch, 8-bit) , Connector 50 pins	FPC connector	Aorora, F31L-1A7H1-21050,Pitch 0.5mm

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
