Quality Industrial PMP VOIP Phone Video Door Phone Digital Photo Frame Innolux AT056TN52 V.3 5.6 Inch VGA 640x480 Display Panel factory

Industrial PMP VOIP Phone Video Door Phone Digital Photo Frame Innolux AT056TN52 V.3 5.6 Inch VGA 640x480 Display Panel

Brand Name

Innolux

Country Of Origin

Guangdong, China

Unit Price

$33/pieces 1-99 pieces

Product Details

Highlight:

innolux tft lcd display

innolux industrial tft display

640x480 tft lcd display

Type: TFT

Display Size: 5.6inch

Supplier Type: Original Brand

Backlight Type: WLED [3S5P] , 20K Hours , W/O Driver

Resolution: 640(RGB)x480, VGA 143PPI, 640(RGB)x480, VGA 143PPI

Brightness: 200 Cd/m² (Typ.), 200cd/m2

Operating Temperature: Operating : -20 ~ 70 °C ; Storage : -30 ~ 80 °C

Display Type: TN, Normally White, Transmissive

Mounting Type: Wire Leads

Screen Size: 126.5(W)x100(H)x6(D) Mm

Communication Interface: Parallel RGB (1 Ch, 8-bit) 50 Pins FPC

Panel Type: A-Si TFT-LCD, LCM

Module Outsize(Mm): 126.5(W)x100(H)x6(D) Mm

Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)

Interface: Parallel RGB (1 Ch, 8-bit) 50 Pins FPC

Touch Screen: Without

Application: Industrial PMP VOIP Phone Video Door Phone Digital Photo Frame

MPQ: 60pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	AT056TN52 V.3	Panel Brand	Innolux
Size (inch )	5.6inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 143PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	126.5(W)×100(H) ×6(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	112.896(W)×84.672(H) mm	Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	16.7M	Light Source	3S5P WLED , 20K hours , Without Driver
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	200 cd/m² (Typ.)	Power Supply	3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Contrast Ratio	500:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 70 °C
LCM Interface Type	Parallel RGB (1 ch, 8-bit) , 50 pins FPC	FPC connector	Pitch 0.5mm

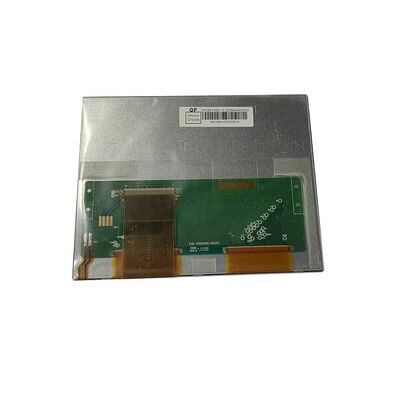

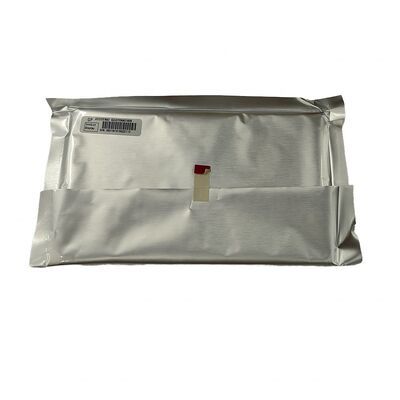

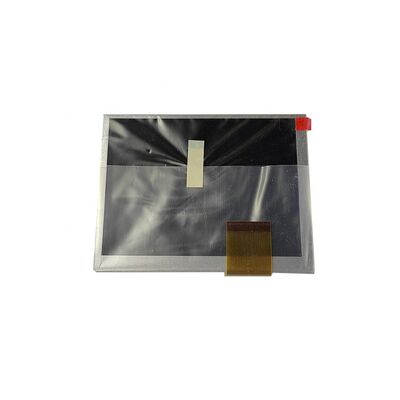

Details Images

Industrial PMP VOIP Phone Video Door Phone Digital Photo Frame Innolux AT056TN52 V.3 5.6 Inch VGA 640x480 Display Panel
