Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module

Brand Name:	Sharp
Price:	$115/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

8.4inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)x600, SVGA 119PPI

Module Outsize(mm):

199.5(W)x154(H)x12.45(D) Mm

Viewing Angle:

65/65/60/55 (Typ.)(CR≥10)

Brightness:

330cd/m2

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Withtout

Application:

Industrial Equipment

MPQ:

20pcs

Warranty:

12 Months

Highlight:

sharp tft lcd display

sharp industrial tft display

800x600 tft lcd display

Product Description

Products Description

Panel Model	LQ084S3LG03	Panel Brand	Sharp
Size (inch )	8.4inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 119PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	199.5(W)×154(H) ×12.45(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	170.88(W)×128.16(H) mm	Response Time	35 (Typ.)(Tr+Td)
Display Colors	262K/16.7M	Light Source	WLED , 50K hours , With LED Driver
Viewing Angle	65/65/60/55 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	330 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	450:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 75 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 75°C
		Vibration Level	2.0G (19.6 m/s²)
LCM Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector	FPC connector	HRS, DF19G-20P-1H, Pitch 1.0mm

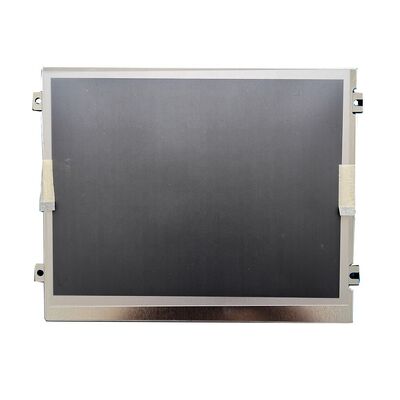

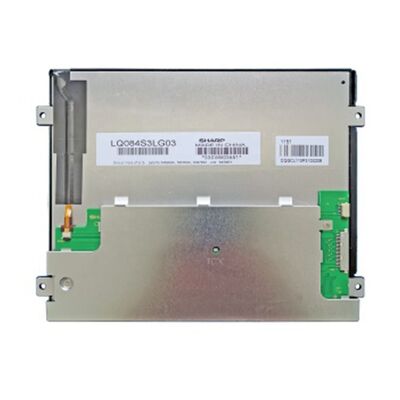

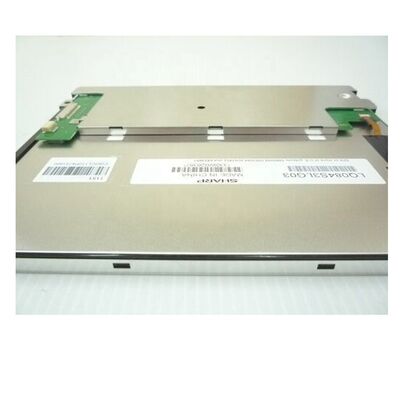

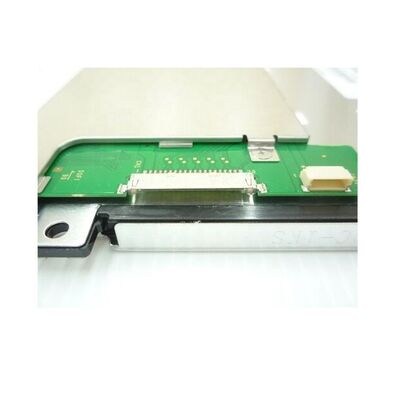

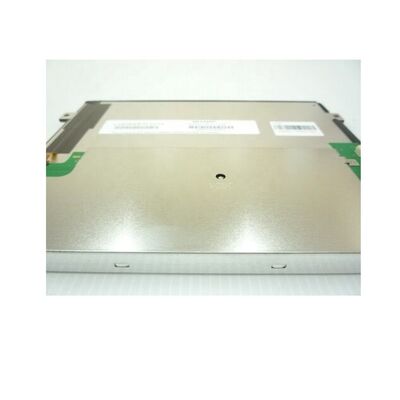

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
