Quality Innolux G101ICE-LH2 10.1Inch WXGA 1280x800 TFT-LCD 1200nits LVDS Wide Temperature Industrial Outdoor Display Screen factory

Innolux G101ICE-LH2 10.1Inch WXGA 1280x800 TFT-LCD 1200nits LVDS Wide Temperature Industrial Outdoor Display Screen

Brand Name

Innolux

Country Of Origin

China

Unit Price

$178/pieces 1-99 pieces

Product Details

Highlight:

innolux tft lcd display

innolux industrial tft display

10.1inch tft lcd display

Type: TFT

Display Size: 10.1inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 1280(RGB)x800, WXGA 149PPI

Module Outsize(Mm): 230.7(H)x152.55(V) X7(D) Mm

Viewing Angle: 88/88/88/88 (Typ.)(CR≥10)

Brightness: 1200cd/m2

Interface: LVDS (1 Ch, 6/8-bit) , 30 Pins Connector

Touch Panel: Withtout

Application: Industrial, Outdoor High Brightness

MPQ: 28pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	G101ICE-LH2	Panel Brand	Innolux
Size (inch )	10.1inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	230.7(W)×152.55(H) ×7(D) mm	Display Mode	AAS, Normally Black, Transmissive
LCD Active area(mm)	216.96(W)×135.6(H) mm	Response Time	13/12 (Typ.)(Tr/Td)
Display Colors	262K/16.7M	Light Source	WLED , 50K hours , With LED Driver
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	1200 cd/m² (Typ.)	Power Supply	5.0V (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)	Used for	Industrial, Outdoor High Brightness
Frame Ratio	60Hz	Enviroment	Storage Temp.: -40 ~ 85 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 80°C
LCM Interface Type	LVDS (1 ch, 6/8-bit) , 30 pins Connector	FPC connector	I-pex, 20455-030E-76, Pitch 0.5mm

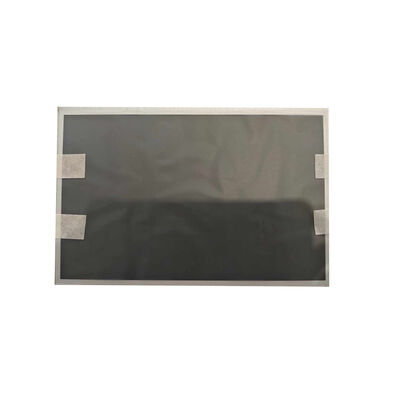

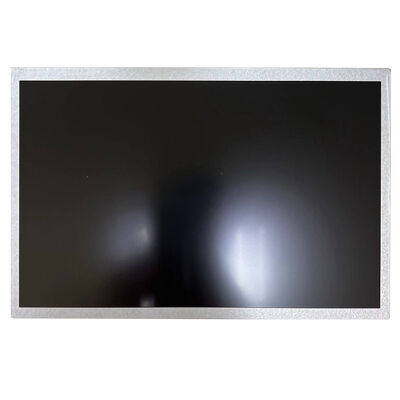

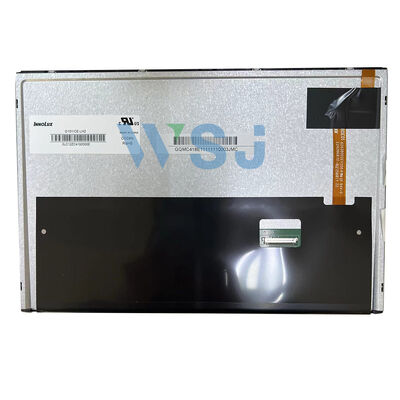

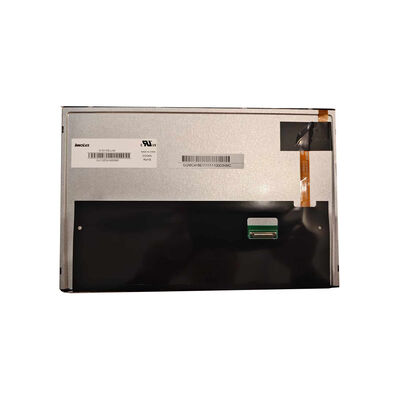

Details Images

Innolux G101ICE-LH2 10.1Inch WXGA 1280x800 TFT-LCD 1200nits LVDS Wide Temperature Industrial Outdoor Display Screen

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
