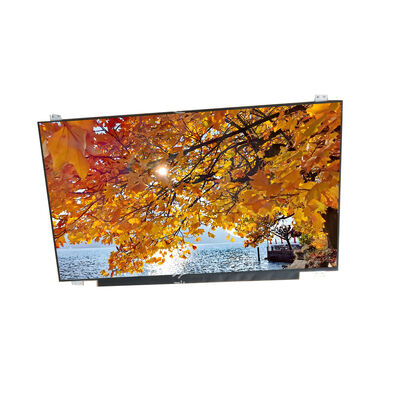

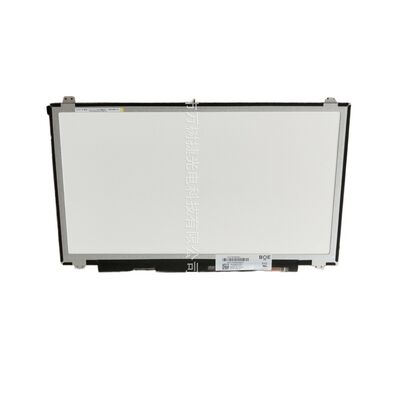

BOE NV173FHM-N41 17.3 Inch 1920x1080 FHD IPS sRGB eDP Notebook with 1080p Resolution Healthcare TFT Screen LCD Modules

Brand Name:	BOE
Price:	$92/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

17.3inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)x1080, FHD 127PPI

Module Outsize(mm):

398.1(H)x250.5(V)x4(D) Mm

Display Type:

ADS, Normally Black, Transmissive

Viewing Angle:

85/85/85/85 (Typ)(CR 10)

Brightness:

300cd/m2

Interface:

EDP

Touch Panel:

Withtout

Application:

Notebook, Healthcare

Warranty:

12 Months

Highlight:

boe tft lcd display

boe industrial tft display

1920x1080 tft lcd display

Product Description

Products Description

Panel Model	NV173FHM-N41	Panel Brand	BOE
Size (inch )	17.3inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 127PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	398.1(H)×250.5(V)×4(D) mm	Display Mode	ADS, Normally Black, Transmissive
LCD Active area(mm)	381.888(W)×214.812(H) mm	Response Time	30 (Typ.)(Tr+Td)
Display Colors	262K 72% NTSC	Light Source	WLED [10S6P] , 15K hours , With LED Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	300 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)	Used for	Notebook, Healthcare
Frame Ratio	60Hz	Enviroment	Storage Temp.: -20 ~ 60 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -0 ~50°C
LCM Interface Type	eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector	FPC connector	UJU, IS050-L30B-C10, Pitch0.5mm
