Mitsubishi AA084SD11 Industrial TFT Monitor Screen High Brightness 1200nits Display

Name: Mitsubishi AA084SD11 Industrial TFT Monitor Screen High Brightness 1200nits Display
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: AA084SD11
Price: 50.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	AA084SD11
MOQ:	1
Price:	$358/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Type:

TFT

Display Size:

8.4inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800x600

Module Outsize(mm):

199.5(H)x149(V) X10.2(D) Mm

Viewing Angle:

80/80/80/60 (Typ.)(CR 10)

Brightness:

1200cd/m2

Interface:

LVDS

Touch Panel:

Withtout

Application:

Industrial Equipment

Power Supply:

3.3V (Typ.)

Frame Rate:

60Hz

Highlight:

Mitsubishi tft monitor screen

1200nits tft monitor screen

AA084SD11

Product Description

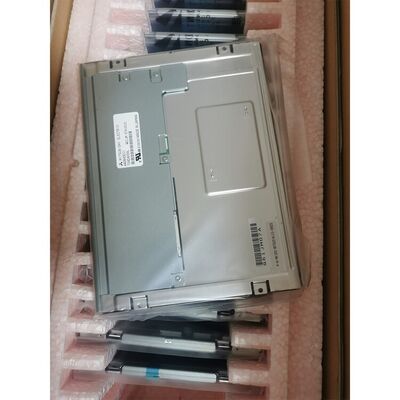

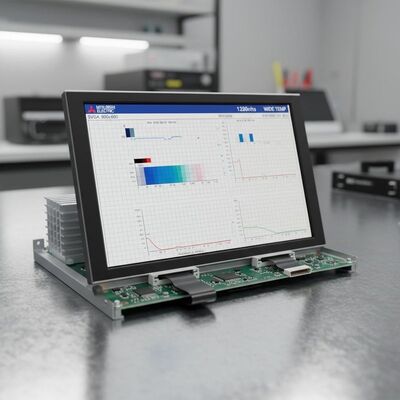

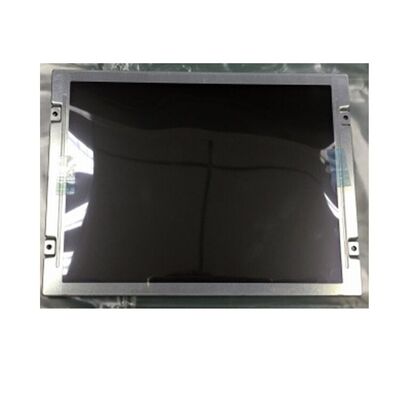

Mitsubishi 8.4-inch Industrial TFT Display

High-performance 800×600 SVGA resolution TFT-LCD display module with LVDS interface, wide temperature range, and ultra-high brightness of 1200 nits.

Key Features

SVGA 800×600 resolution at 119 PPI
Ultra-high brightness: 1200 cd/m²
Wide operating temperature: -30°C to 80°C
LVDS interface (1 ch, 6/8-bit)
600:1 contrast ratio
262K/16.7M color support
Long-life WLED backlight (100K hours)

Technical Specifications

Panel Model	AA084SD11
Panel Brand	Mitsubishi
Size	8.4 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 119PPI
Module Dimensions	199.5(W)×149(H)×10.2(D) mm
Active Area	170.4(W)×127.8(H) mm
Display Mode	TN, Normally White, Transmissive
Response Time	4/12 ms (Typ.)(Tr/Td)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Brightness	1200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Power Supply	3.3V (Typ.)
Interface	LVDS (1 ch, 6/8-bit), 20 pins Connector
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C

Applications

Ideal for industrial equipment, control systems and other applications requiring reliable performance in demanding environments.

Why Choose Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive experience and advantageous supply resources, we deliver fast, superior first-tier services to our clients.
