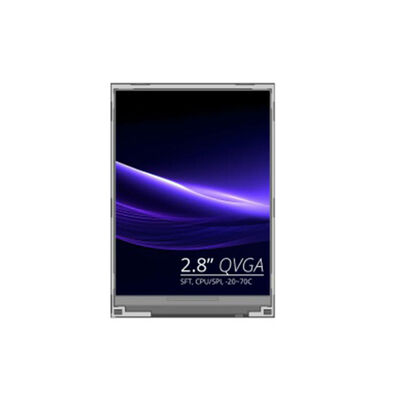

Tianma 2.8 inch 240x320 QVGA TFT LCD Display Panel for Industrial Handheld PDA Devices

Name: Tianma 2.8 inch 240x320 QVGA TFT LCD Display Panel for Industrial Handheld PDA Devices
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM028HDZP01-00
Price: 8 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM028HDZP01-00
MOQ:	1
Price:	US$ 8 / PC
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

TM028HDZP01-00 Final spec....1.pdf

Diagonal Size:

2.80"

Luminance:

280 Cd/m2

Resoution:

240(RGB)×320, QVGA 141PPI

Display Colors:

65K/262K 70% NTSC

Signal Type:

CPU/SPI , 40 Pins FPC

Cover Glass:

ODM

Life Time:

1S4P WLED , 30K Hours

Used For:

Industrial Handheld PDA

Temperature Range:

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Compliance:

REACH & RoHS Compliant

Product Description

TM028HDZP01-00 Tianma 2.8 inch 240×320 QVGA Handheld PDA Device TFT Screen Display Panel

Compact & High-Definition Display Equipped with a 2.8-inch a-Si TFT-LCD panel featuring 240×320 QVGA resolution and 141PPI, delivering clear and detailed image performance for small-sized devices.
Excellent Visual Experience Features 280 cd/m² typical brightness, 800:1 high contrast ratio, 70% NTSC color gamut, and symmetrical viewing angle (80/80/80/80), ensuring vivid color reproduction and consistent visibility from all directions.
Fast & Stable Response With 25ms (Typ.) Tr+Td response time and 60Hz frame rate, it supports smooth dynamic display, suitable for real-time data and image output.
Reliable Industrial-Grade Durability Adopts SFT normally black transmissive mode, hard coating surface treatment, and operating temperature range (-20 ~ 70°C), with 30,000-hour WLED backlight lifespan, ensuring long-term stable operation in harsh environments.
Low-Power & Easy Integration Features 3.3V low power supply, CPU/SPI interface with 40-pin FPC, and ultra-thin 3.1mm profile, making it easy to integrate into compact portable devices.
Cost-Effective Solution Tianma's mature TFT-LCD technology provides a reliable, cost-effective display solution for mass production of handheld devices.

Technical Specifications

Parameter Category	Parameter Item	Specification
Basic Information	Brand	TIANMA
Basic Information	Model P/N	TM028HDZP01-00
Basic Information	Diagonal Size	2.8"
Basic Information	Panel Type	a-Si TFT-LCD, LCM
Display Performance	Resolution	240(RGB)×320, QVGA, 141PPI
Display Performance	Pixel Format	RGB Vertical Stripe
Display Performance	Luminance	280 cd/m² (Typ.)
Display Performance	Contrast Ratio	800:1 (Typ.) (TM)
Display Performance	Response Time	25 (Typ.)(Tr+Td)
Display Performance	Frame Rate	60Hz
Display Performance	Support Color	65K/262K, 70% NTSC
Display Performance	View Direction	Symmetry
Display Performance	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Performance	Operating Mode	SFT, Normally Black, Transmissive
Physical Dimension	Active Area	43.2(W)×57.6(H) mm
Physical Dimension	Bezel Opening	44.2(W)×58.6(H) mm
Physical Dimension	Outline Dim.	48.4(H)×69.2(V)×3.1(D) mm
Physical Dimension	Treatment	Hard coating
Backlight System	Light Source	WLED [1S4P], 30K hours
Interface & Power	Interface Type	CPU/SPI, 40 pins FPC
Interface & Power	Power Supply	3.3/3.3V (Typ.)(VCC/IOVCC)
Interface & Power	Pinout	Pitch 0.5mm, 30 Pins
Interface & Power	Touch Panel	Without
Environmental Spec	Operating Temperature	-20 ~ 70 °C
Environmental Spec	Storage Temperature	-30 ~ 80 °C
Application	Designed For	Handheld Portable Devices

Handheld Portable Devices: Smart home controllers, portable POS terminals, handheld scanners, and small portable instruments
Industrial Control & IoT: Industrial handheld terminals, data collectors, and small IoT control panels
Consumer Electronics: Portable medical devices, fitness trackers, smart remote controls, and small wearable devices
Automotive & Transportation: Vehicle-mounted small display screens, automotive control panels, and portable navigation devices
Other Applications: Small electronic toys, smart home sensors, and portable test equipment

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

Optional industrial-grade capacitive touch or resistive touch.
