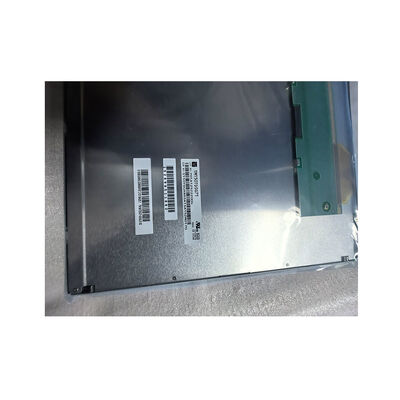

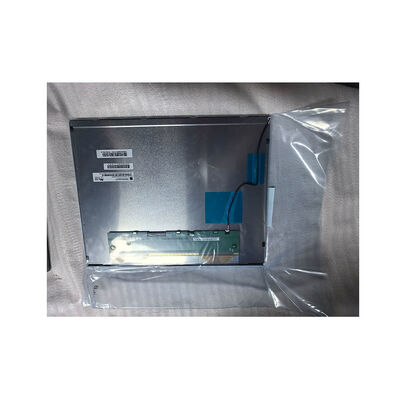

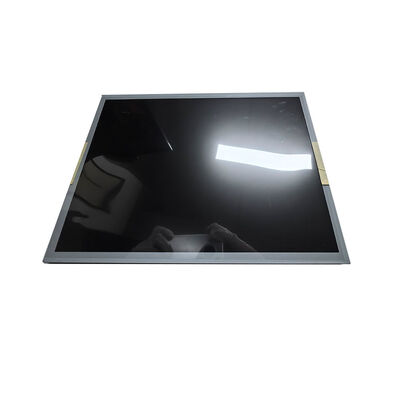

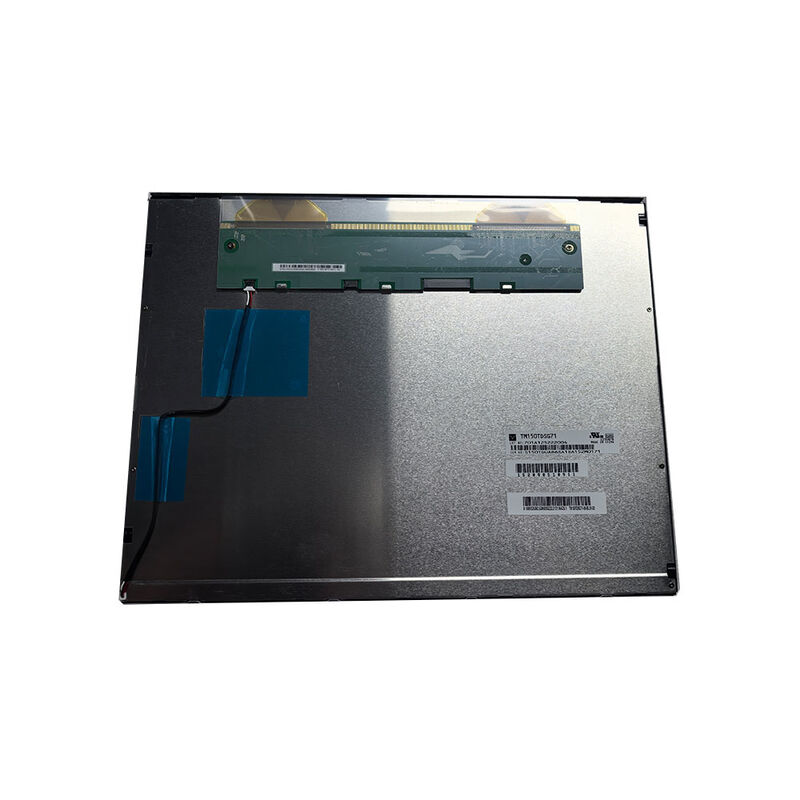

Tianma TM150TDSG71 1024x768 XGA TFT Display Touch Screen LCD Panel 15.0 Inch

Name: Tianma TM150TDSG71 1024x768 XGA TFT Display Touch Screen LCD Panel 15.0 Inch
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM150TDSG71
Price: 43.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM150TDSG71
MOQ:	1
Price:	$86/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

15.0 Inch

Supplier Type:

Original Brand

Resolution:

1024(RGB)x768, XGA 85PPI,

Display Type:

TN, Normally White, Transmissive

Module Outsize(mm):

326.5(W)x253.5(H) X12.1(D) Mm

Brightness:

450 Cd/m² (Typ.), 450 Cd/m² (Typ.)

Contrast Ratio:

800 : 1 (Typ.) (TM)

Backlight Type:

WLED , 50K Hours , With LED Driver

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Signal Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Without

Warranty:

12months

Application:

Industrial Display

Environment:

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Packaging Details:

10pcs/Box

Highlight:

Tianma tft display touch screen

LCD tft display touch screen

1024x768 tft Panel

Product Description

Tianma TM150TDSG71 15.0 Inch Industrial Display Module

High-performance 15.0-inch TFT-LCD display panel with 1024x768 XGA resolution, 450 nits brightness, and LVDS interface, designed for demanding industrial applications.

Key Features

15.0-inch XGA resolution (1024×768) with 85 PPI density
High brightness 450 cd/m² for excellent visibility
LVDS interface with 20-pin connector for reliable data transmission
800:1 contrast ratio with 262K/16.2M display colors
WLED backlight with 50,000 hours lifespan
Industrial-grade operating temperature: -20°C to 70°C
Compact module dimensions: 326.5×253.5×12.1 mm

Technical Specifications

Panel Model	TM150TDSG71	Panel Brand	Tianma
Size	15.0 Inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	326.5(W)×253.5(H)×12.1(D) mm	Display Mode	TN, Normally White, Transmissive
Active Area	304.128(W)×228.096(H) mm	Response Time	8ms (Typ.)(Tr+Td)
Display Colors	262K/16.2M 62% NTSC	Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch	Without
Brightness	450 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)	Frame Rate	60Hz
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector	FPC Connector	STM, MSB24038P5, Pitch 1.25mm
Operating Temperature	-20°C to 70°C	Storage Temperature	-30°C to 80°C

Applications

This industrial display module is specifically recommended for industrial equipment, industrial monitoring systems, and various industrial control applications requiring reliable performance in demanding environments.

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
