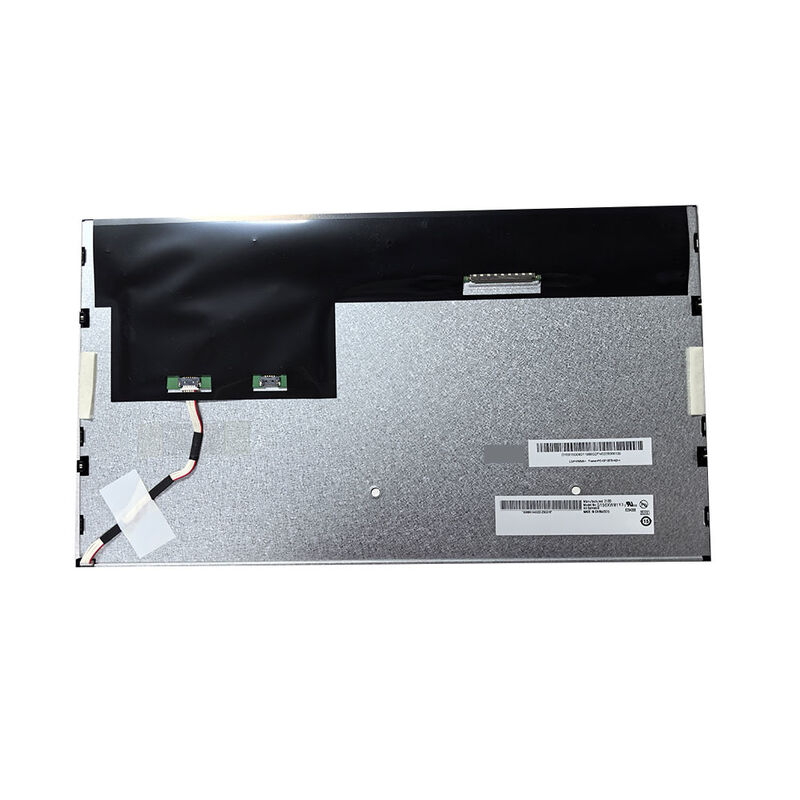

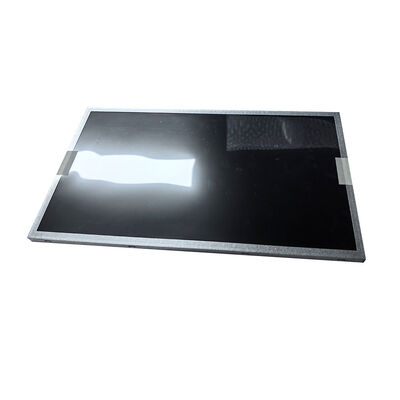

Transmissive AUO 15.6 Inch 1366x768 WXGA LCD TFT Module Panel G156XW01 V3

Transmissive AUO 15.6 Inch 1366x768 WXGA LCD TFT Module Panel G156XW01 V3

Brand Name:	AUO
Price:	$86/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

15.6 Inch

Supplier Type:

Original Brand

Backlight Type:

WLED , 50K Hours , With LED Driver

Resolution:

1366(RGB)x768, WXGA 100PPI, 1366(RGB)x768, WXGA 100PPI

Brightness:

400 Cd/m² (Typ.), 400 Cd/m² (Typ.)

Operating Temperature:

Operating .: -0 ~ 60 °C ; Storage. : -20 ~ 60 °C

Display Type:

TN, Normally White, Transmissive

Mounting Type:

Connector

Screen Size:

363.8(W)x215.9(H) X9.8(D) Mm

Communication Interface:

LVDS (1 Ch, 8-bit) , 30 Pins Connector

Panel Type:

A-Si TFT-LCD, LCM

Module Outsize(mm):

363.8(W)x215.9(H) X9.8(D) Mm

Viewing Angle:

85/85/80/80 (Typ.)(CR≥10)

Signal Interface:

LVDS (1 Ch, 8-bit) , 30 Pins Connector

Touch Panel:

Without

Warranty:

12months

Application:

Industrial Display

Environment:

Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

Highlight:

transmissive lcd tft module

1366x768 lcd tft module

G156XW01

Product Description

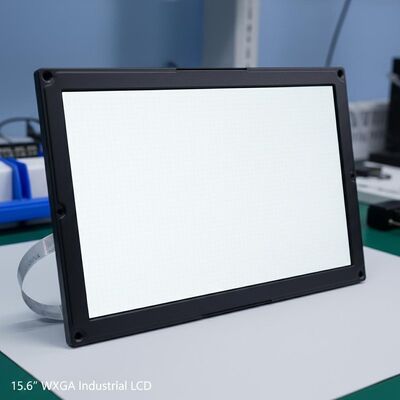

AUO G156XW01 V3 15.6 Inch Industrial LCD Display Module

High-performance 15.6-inch TFT-LCD panel featuring 1366×768 WXGA resolution with 400 nits brightness, designed specifically for industrial applications with wide operating temperature range and robust construction.

Key Features

15.6-inch diagonal display with 1366×768 WXGA resolution
High brightness: 400 cd/m² for excellent visibility
Industrial-grade operating temperature: -0°C to 60°C
LVDS interface with 30-pin connector for reliable connectivity
WLED backlight with 50,000-hour lifespan
TN display technology with normally white, transmissive mode
16.2 million colors with 67% NTSC color gamut

Technical Specifications

Panel Model	G156XW01 V3	Panel Brand	AUO
Size	15.6 Inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	363.8(W)×215.9(H)×9.8(D) mm	Display Mode	TN, Normally White, Transmissive
Active Area	344.232(W)×193.536(H) mm	Response Time	6/2 (Typ.)(Tr/Td) ms
Display Colors	16.2M 67% NTSC	Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Touch	Without
Brightness	400 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)	Application	Industrial
Frame Rate	60Hz	Storage Temperature	-20°C to 60°C
Interface Type	LVDS (1 ch, 8-bit)	FPC Connector	JAE, FI-XB30SSL-HF15, Pitch 1.0mm

Industrial Applications

This robust display module is engineered for demanding industrial environments, offering reliable performance across wide temperature ranges and extended operational lifespan.
