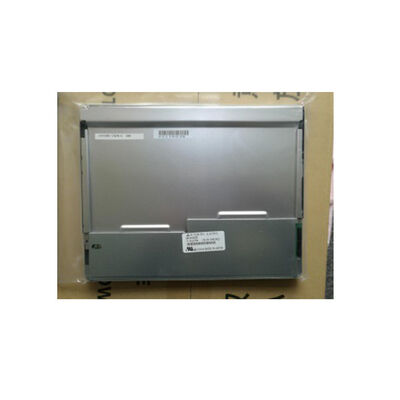

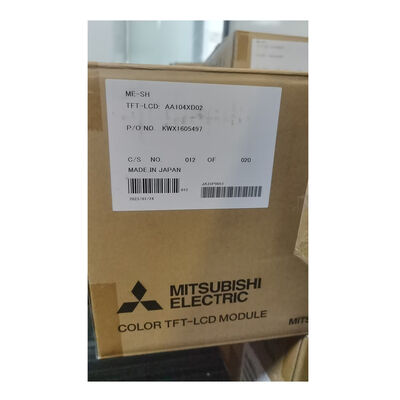

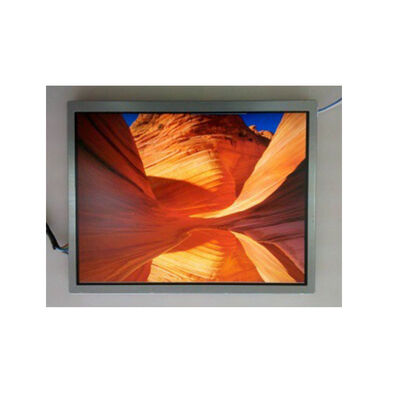

LCM 10.4 Inch TFT LCD Monitor Panel Mitsubishi AA104XD02 Mass Production

Name: LCM 10.4 Inch TFT LCD Monitor Panel Mitsubishi AA104XD02 Mass Production
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: AA104XD02
Price: 50.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	AA104XD02
MOQ:	1
Price:	$240/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Display Size:

10.4 Inch

Supplier Type:

Original Brand

Display Type:

A-Si TFT-LCD, LCM

Module Outsize(mm):

230(W)x180.2(H) X11(D) Mm

Resolution:

1024(RGB)x768, XGA 123PPI, 1024(RGB)x768, XGA 123PPI

Brightness:

600nits, 600cd/m2

Contrast Ratio:

700:1 (Typ.) (TM)

Viewing Angle:

80/80/65/65 (Typ.)(CR≥10)

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Withtout

Backlight Type:

2 Strings WLED , 100K Hours , Without Driver

Operating Temperature:

Storage .: -30 ~ 80 °C Operating : 30 ~ 80 °C

Application:

Industrial

MPQ:

10pcs

Warranty:

12 Months

Highlight:

LCM 10 tft lcd monitor

Mass production 10 tft lcd monitor

AA104XD02

Product Description

AA104XD02 Mitsubishi 10.4-Inch Industrial Display Module

High-performance 10.4-inch TFT-LCD display panel with 1024×768 XGA resolution, designed for demanding industrial applications requiring reliable visual performance in wide temperature environments.

Mass production for this model starts in Q1,2009, no longer in production.

Key Features

1024×768 XGA resolution with 123 PPI for clear, detailed imagery
600 cd/m² high brightness display for excellent visibility
TN technology with 80/80/65/65 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
700:1 contrast ratio for superior image quality
WLED backlight with 100,000 hours lifespan
262K/16.7M color support with 40% NTSC color gamut
Wide operating temperature range: -30°C to 80°C

Technical Specifications

Panel Model	AA104XD02
Panel Brand	Mitsubishi
Size	10.4 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Module Dimensions	230(W)×180.2(H)×11(D) mm
Display Mode	TN, Normally White, Transmissive
Active Area	210.4(W)×157.8(H) mm
Response Time	4/12 ms (Typ.)(Tr/Td)
Display Colors	262K/16.7M 40% NTSC
Light Source	2 strings WLED, 100K hours
Viewing Angle	80/80/65/65 (Typ.)(CR≥10)
Touch Screen	Without
Brightness	600 cd/m² (Typ.)
Power Supply	3.3V (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Frame Ratio	60Hz
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
LCM Interface Type	LVDS (1 ch, 6/8-bit)
FPC Connector	JAE, FI-SE20P-HFE, Pitch 1.25mm

Applications

Industrial equipment and machinery
Healthcare medical devices
Outdoor & rugged displays
Elevator Display
Security Monitor Display
Automation Equipment Display
CNC Machine Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
