LQ104V1DG81 Original Industrial Sharp 10.4 Inch TFT-LCD Display Screen with 640x480 VGA Resolution and Wide Temperature Range
LQ104V1DG81 Original Industrial Sharp 10.4 Inch TFT-LCD Display Screen with 640x480 VGA Resolution and Wide Temperature Range
Brand Name
Sharp
Product Model
LQ104V1DG81
Country Of Origin
China
MOQ
1
Unit Price
$150/pieces 1-99 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
10.4 Inch TFT-LCD Display Screen
,640x480 VGA LCD Module
,Wide Temperature Industrial TFT Display
Panel Type:
A-Si TFT-LCD, LCM
Display Size:
10.4inch
Supplier Type:
Original Brand
Module Outsize(Mm):
246.5(H)x179.3(V) X13(D) Mm
Resolution:
640(RGB)x480, VGA 76PPI
Viewing Angle:
80/80/60/80 (Typ.)(CR 10)
Brightness:
450cd/m2
Interface:
CMOS (1 Ch, 6-bit) , 31 Pins Connector
Touch Screen:
Without
Light Source:
WLED , 50K Hours , With LED Driver
Environment:
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
MPQ:
20pcs
Application:
Industrial
Warranty:
12 Months
Product Description
Detailed Specifications And Features

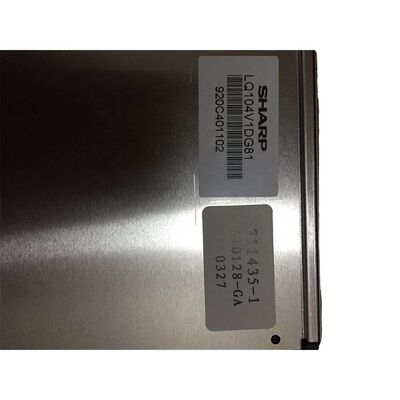

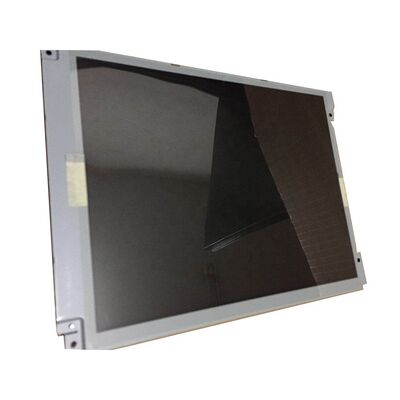

Original Industrial Sharp LQ104V1DG81 10.4 Inch Display
High-performance 10.4-inch TFT-LCD display panel with VGA 640×480 resolution, designed for demanding industrial applications requiring reliable visual performance in wide temperature environments.
Product Status: This model started mass production in Q1 2012 and has been discontinued. The stock is limited,please contact us if you need.
Key Features
- 640×480 VGA resolution with 76 PPI for clear imagery
- 450 cd/m² brightness display for excellent visibility
- TN technology with 80/80/65/80 viewing angles
- CMOS interface with 31-pin connector for reliable data transmission
- 800:1 contrast ratio for superior image quality
- WLED backlight with 50,000 hours lifespan
- 262K color support with 50% NTSC color gamut
- Wide operating temperature range: -30°C to 80°C
Technical Specifications
| Panel Model | LQ104V1DG81 | Panel Brand | Sharp |
|---|---|---|---|
| Size | 10.4 inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 76PPI | Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 246.5(H)×179.3(V)×13(D) mm | Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2(W)×158.4(H) mm | Response Time | 35ms (Typ.) |
| Display Colors | 262K, 50% NTSC | Light Source | WLED, 50K hours, With LED Driver |
| Viewing Angle | 80/80/65/80 (Typ.)(CR≥10) | Touch Screen | Without |
| Brightness | 450 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 800:1 (Typ.) | Application | Industrial |
| Frame Rate | 60Hz | Interface Type | CMOS (1 ch, 6-bit), 31 pins Connector |
| Operating Temperature | -30°C to 80°C | Storage Temperature | -30°C to 80°C |
| FPC Connector | HRS, DF9MA-31P-1V(32), Pitch 1.0mm | ||
Applications
- Industrial equipment and machinery
- Elevator Display
- Security Monitor Display
- Automation Equipment Display
- CNC Machine Display
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
