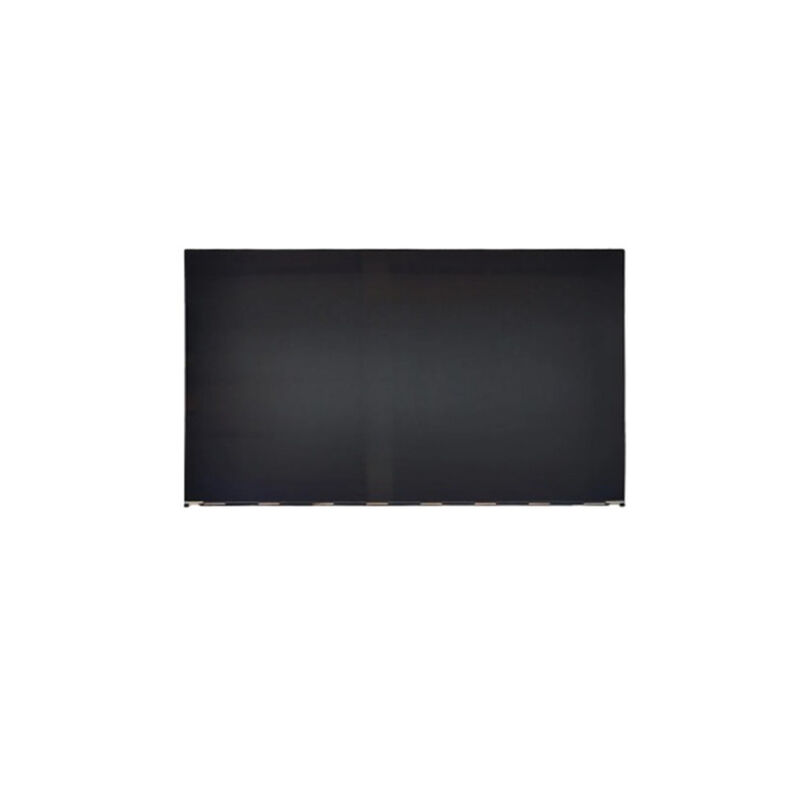

P2700FHF1MA00 Tianma Industrial TFT LCD Display Lcd Capacitive Touchscreen 27 Inch 1500cd/M2

Name: P2700FHF1MA00 Tianma Industrial TFT LCD Display Lcd Capacitive Touchscreen 27 Inch 1500cd/M2
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: P2700FHF1MA00
Price: 50.00 USD
Availability: InStock

Brand Name:	Tinama
Model Number:	P2700FHF1MA00
MOQ:	1
Price:	$640/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

P2700FHF1MA00_V1.3.pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

27 Inch

Supplier Type:

Original Brand

Resolution:

1920(RGB)x1080, FHD 81PPI

Module Outsize(mm):

630(W)x368(H)x31.2(D)

Color Depth:

16.7M 40% NTSC

Viewing Angle:

88/88/88/88 (Typ.)(CR≥10)

Brightness:

1500cd/m2

Contrast Ratio:

1000:1 (Typ.) (TM)

Touch Screen:

Without

Signal Type:

LVDS (2 Ch, 8-bit) , 14 Pins Connector

Light Source:

WLED , 50K Hours , With LED Driver

Operating Temperature:

Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C

Application:

Industrial, Outdoor Highbrightness

Warranty:

12 Months

Highlight:

Capacitive Industrial TFT Display

1500cd/M2 Industrial TFT Display

1500cd/M2 tft lcd capacitive touchscreen

Product Description

P2700FHF1MA00 Tianma 27.0 Inch FHD Industrial TFT LCD Display

High-performance 27-inch TFT-LCD display module with 1920×1080 Full HD resolution, engineered for demanding industrial applications requiring reliable operation across wide temperature ranges.

Key Features

1920×1080 Full HD resolution with 81 PPI for clear display
1500 cd/m² high brightness for excellent visibility in bright environments
SFT technology with 88/88/88/88 viewing angles
LVDS interface with 30-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
16.7M color support with 40% NTSC color gamut
Wide operating temperature range: -30°C to 70°C

Technical Specifications

Panel Model	P2700FHF1MA00	Panel Brand	Tianma
Size	27 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 81PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	630(H)×368(V)×31.2(D) mm	Display Mode	SFT, Normally Black, Transmissive
Active Area	596.16(W)×334.34(H) mm	Response Time	20ms (Typ.)(G to G)
Display Colors	16.7M 40% NTSC	Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	1500 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Application	Industrial, Outdoor High Brightness
Frame Rate	60Hz	Storage Temperature	-30°C to 80°C
LCM Interface	LVDS (2 ch, 8-bit), 30 pins Connector	Operating Temperature	-30°C to 70°C
FPC Connector	Molex,55935-1430,Pitch 2.0mm

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
Medical equipment
Outdoor High Brightness applications
EV Charger Display
Industrial Control Display

Customization Options

This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

Capacitive Touch Optional.
