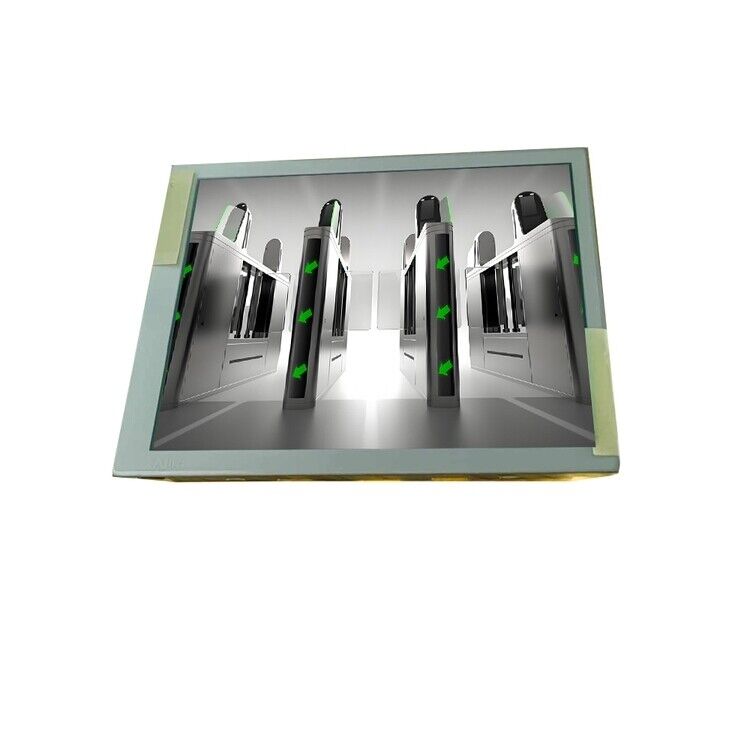

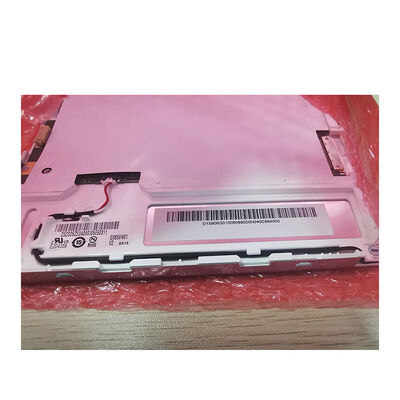

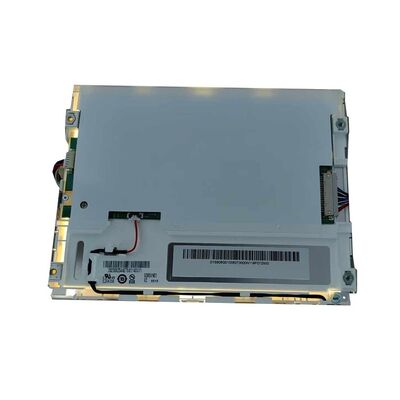

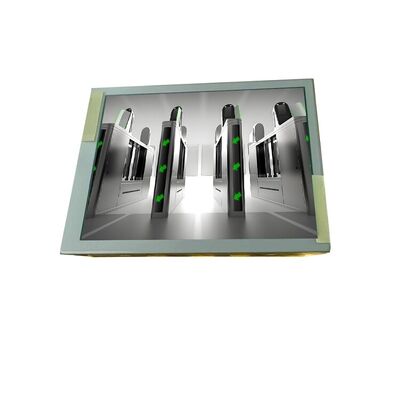

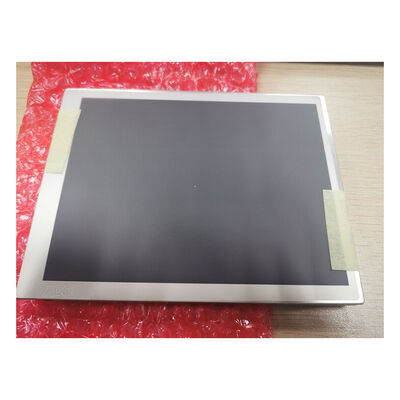

AUO 6.5 Inch 640x480 VGA Industrial TFT Display LCD Module G065VN01 V2

Name: AUO 6.5 Inch 640x480 VGA Industrial TFT Display LCD Module G065VN01 V2
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: G065VN01 V2
Price: 41.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G065VN01 V2
MOQ:	1
Price:	$81/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

6.5inch

Supplier Type:

Original Brand

Resolution:

640(RGB)x480, VGA 122PPI

Module Outsize(mm):

153(W)*118(H)*11.2(D) Mm

Viewing Angle:

80/80/70/70 (Typ.)(CR 10)

Support Color:

262K/16.2M 55% NTSC

Brightness:

800cd/m2

Contrast Ratio:

600:1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Withtout

Power Supply:

3.3V (Typ.)

Environment:

Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Application:

Industrial Equipment, Outdoor High Brightness

Warranty:

12 Months

Highlight:

640x480 Industrial TFT Display

AUO Industrial TFT Display

G065VN01 V2

Product Description

G065VN01 V2 AUO 6.5 inch 640×480 VGA TFT-LCD Display Module

High-performance 6.5-inch TFT-LCD display module with 640×480 VGA resolution, engineered for demanding industrial and outdoor applications requiring reliable operation across wide temperature ranges.

Product Status: Mass production began in Q4 2009. This product has been discontinued (EOL). Stock is limited, so please place your order promptly.
Successor Model: G065VN01 V221

Key Features

640×480 VGA resolution with 122 PPI for clear display quality
800 cd/m² high brightness for excellent visibility in various lighting conditions
TN technology with wide viewing angles for consistent image quality
LVDS interface with 20-pin connector for reliable data transmission
600:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
262K/16.2M color support with 55% NTSC color gamut
Operating temperature range: -30°C to 80°C
Storage temperature range: -30°C to 80°C

Technical Specifications

Panel Model	G065VN01 V2
Panel Brand	AUO
Size	6.5 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 122PPI
Pixel Format	RGB Vertical Stripe
Module Dimensions	153(W)×118(H)×11.2(D) mm
Display Mode	TN, Normally White, Transmissive
LCD Active Area	132.48(W)×99.36(H) mm
Response Time	15/10 (Typ.)(Tr/Td)
Display Colors	262K/16.2M 55% NTSC
Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Touch Screen	Without
Brightness	800 cd/m² (Typ.)
Power Supply	3.3V (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Frame Ratio	60Hz
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
FPC Connector	STM, MSB24013P20, Pitch 1.0mm
Application	Industrial, Outdoor High Brightness

Applications

Industrial equipment and machinery
CNC machine displays
Medical equipment
EV Charger Display
Industrial Control Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional
