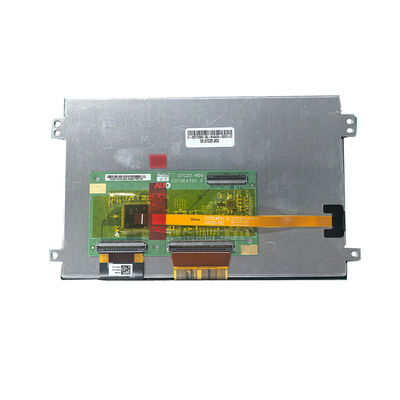

AUO C070EAT01.0 7 Inch TFT-LCD Module with 600nits High Brightness LVDS Interface for Automotive Display

Name: AUO C070EAT01.0 7 Inch TFT-LCD Module with 600nits High Brightness LVDS Interface for Automotive Display
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: C070EAT01.0
Price: 28.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	C070EAT01.0
MOQ:	1
Price:	$55/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

7.0 Inch

Supplier Type:

Original Brand

Resolution:

1280 × 720 (WXGA, 16:9 Aspect Ratio)

Module Outsize(mm):

170.2 (H) X 111.5 (V) X 8.7 (T)

Viewing Angle:

152.64 (H) X 91.584 (V)

Brightness:

600cd/m2

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Interface:

LVDS

Touch Panel:

PCTP

Application:

Industrial,Outdoor High Brightness,Automotive

Warranty:

12 Months

Highlight:

600nits High Brightness 7 Inch TFT-LCD Module

LVDS Interface Automotive Display

Wide Temperature Range AUO C070EAT01.0

Product Description

AUO 7 Inch WXGA Wide Temperature TFT-LCD Module

High-performance 7-inch WXGA TFT-LCD display module with 1280x720 resolution and 600 nits high brightness, engineered for demanding industrial, outdoor, and automotive applications requiring reliable operation across extreme temperature ranges.

Key Features

1280*720 WXGA resolution
600 cd/m² high brightness for excellent visibility in bright environments
LVDS interface with 40-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
Wide operating temperature range: -30°C to 85°C
Extended storage temperature range: -40°C to 95°C

Technical Specifications

Parameter Category	Parameter Details	Parameter Value
Basic Information	Brand	AUO (AU Optronics)
	Model Name	C070EAT01.0
	Screen Size	7.0 inch (diagonal)
	Panel Type	a-Si TFT-LCD Module (with projected capacitive touch screen)
Display Parameters	Pixel Arrangement	RGB Vertical Stripe
	Native Resolution	1280 × 720 (WXGA, 16:9 aspect ratio)
	Typical Brightness	600 cd/m²
	Typical Contrast Ratio	1000:1
	Color Depth / Gamut	16.7M Colors / 8-bit
	Viewing Angle (U/D/L/R, CR≥10)	80° / 80° / 80° / 80°
Electrical & Interface	Signal Interface	LVDS
	Connector Type	40-pin FPC
	Backlight Type	WLED (White LED)
	Input Voltage	5V (main power supply)
Environmental & Mechanical	Operating Temperature	-30°C ~ +85°C
	Storage Temperature	-40°C ~ +95°C
	Surface Treatment	Anti-glare coating
	Application Scenario	Automotive central control, navigation, infotainment system

Applications

Application Scenarios

Automotive central control infotainment systems
Vehicle navigation and GPS display units
In-vehicle rear-seat entertainment systems
Industrial-grade HMI panels requiring wide-temperature operation
Aftermarket replacement displays for Jeep, Dodge, and Chrysler vehicles with Uconnect 4 systems
