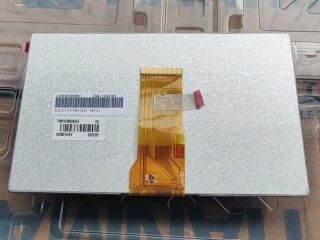

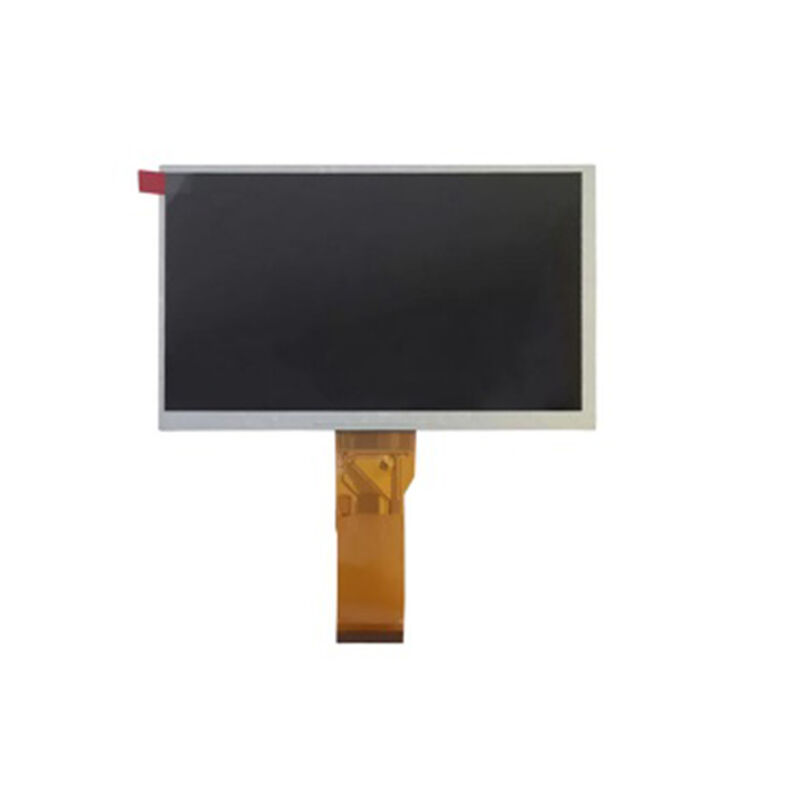

ODM 7 inch Tianma Automotive TFT LCD Module 800x480 WVGA TM070RDHG34-00

Name: ODM 7 inch Tianma Automotive TFT LCD Module 800x480 WVGA TM070RDHG34-00
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM070RDHG34-00
Price: 20.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM070RDHG34-00
MOQ:	1
Price:	$40/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

7 Inch

Supplier Type:

Original Brand

Resolution:

800(RGB)x480, WVGA 134PPI

Module Outsize(mm):

164.9(W)x100(H)x6(D) Mm

Viewing Angle:

70/70/60/70 (Typ.)(CR≥10)

Display Color:

16.7M 50% NTSC

Brightness:

1000 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Signal Interface:

Parallel RGB (1 Ch, 8-bit) 50 Pins FPC

Touch Panel:

Without

Lamp Type:

3S8P WLED , 50K Hours , Without Driver

Environment:

Operating : -30 ~ 85 °C Storage: -40 ~ 90 °C Vibration 6.8G

Application:

Industrial Equipment Rugged Industry Automotive Outdoor High Brightness

Warranty:

12months

Packaging Details:

50pcs/Box

Highlight:

ODM Automotive TFT

800x480 Automotive TFT

ODM tft 7 inch display

Product Description

Tianma TM070RDHG34-00 7 inch 800x480 WVGA TFT-LCD Module with 1000 cd/m² Brightness for Industrial and Automotive Applications

High-brightness automotive display screen engineered for demanding industrial applications requiring reliable operation across wide temperature ranges.

Key Features

800×480 WVGA resolution with 134 PPI for sharp display clarity
1000 cd/m² ultra-high brightness for excellent visibility in bright environments
TN technology with 70/70/60/70 viewing angles
Parallel RGB interface with 50-pin FPC connector
800:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
16.7M color support with 50% NTSC color gamut
Wide operating temperature range: -30°C to 85°C

Technical Specifications

Panel Model	TM070RDHG34-00	Panel Brand	Tianma
Size	7 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	164.9(W)×100(H)×6(D) mm	Display Mode	TN, Normally White, Transmissive
Active Area	154.08(W)×85.92(H) mm	Response Time	25 ms (Typ.)
Display Colors	16.7M 50% NTSC	Light Source	3S8P WLED, 50K hours
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Touch	Without
Brightness	1000 cd/m² (Typ.)	Power Supply	3.3/10.4/16.0/-7.0V (Typ.)
Contrast Ratio	800:1 (Typ.)	Application	Industrial, Automotive, Outdoor
Frame Rate	60Hz	Storage Temperature	-40°C to 90°C
Interface Type	Parallel RGB (1 ch, 8-bit)	Operating Temperature	-30°C to 85°C
FPC Connector	50 pins, Pitch 0.5mm	Vibration Level	6.8G (66.64 m/s²)

Applications

Industrial equipment and machinery
Automation equipment displays
Outdoor high brightness applications
CNC machine displays
Medical equipment
EV Charger Display
Rugged Industry
Industrial Control Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products. Optional industrial-grade capacitive touch available.
