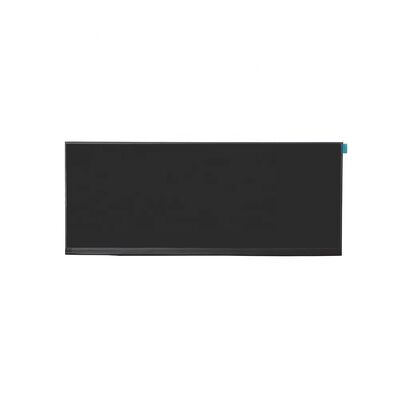

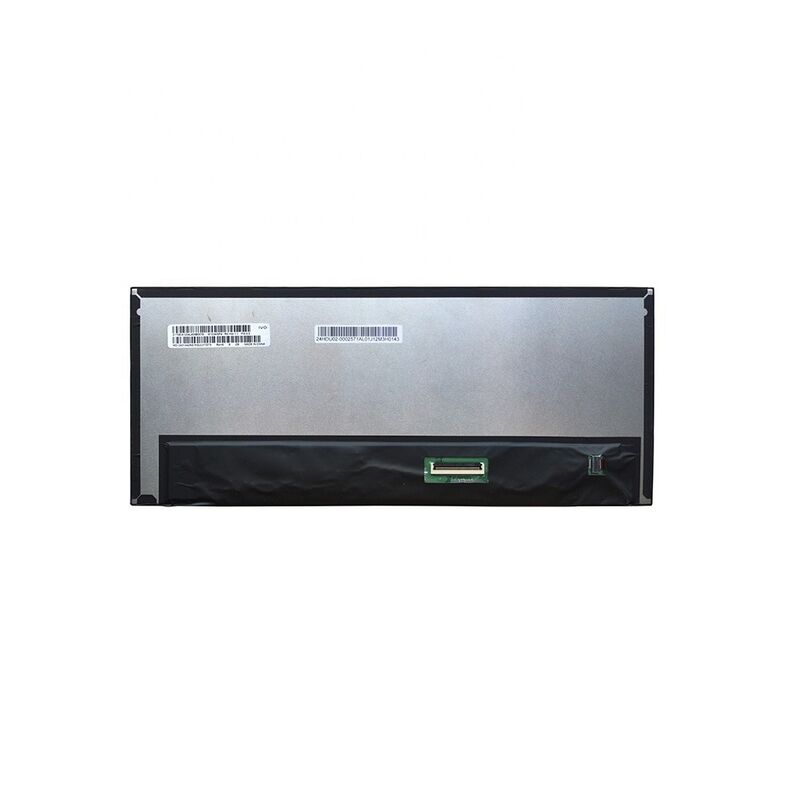

IVO M123AWF4 R0 12.3 Inch Automotive TFT Capacitive Touch Screen Display 1920x720

Name: IVO M123AWF4 R0 12.3 Inch Automotive TFT Capacitive Touch Screen Display 1920x720
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: M123AWF4 R0
Price: 39.00 USD
Availability: InStock

Brand Name:	IVO
Model Number:	M123AWF4 R0
MOQ:	1
Price:	$78/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

M123AWF4 R0 Product Specifi...01.pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

12.3 Inch

Supplier Type:

Original Brand

Resolution:

1920(RGB)x720 167PPI

Module Outsize(mm):

299.03x123.012x9.24 (HxVxD)

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Brightness:

940 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Signal Interface:

LVDS (2 Ch, 8-bit) , Connector 50 Pins

Touch Panel:

Without

Application:

Rugged Industry Outdoor High Brightness Industrial Display

Environment:

Operating Temperature: 30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

Warranty:

12 Months

Highlight:

Capacitive Automotive TFT

1920x720 Automotive TFT

12.3Inch tft lcd touch screen display

Product Description

IVO M123AWF4 R0 12.3 Inch Industrial TFT Display with 1920x720 Resolution and Wide Temperature Range Capacitive Touch Optional

High-performance 12.3-inch TFT-LCD display module with 1920×720 resolution, engineered for demanding industrial and automotive applications requiring reliable operation across wide temperature ranges with exceptional vibration resistance.

Key Features

1920×720 resolution with 167 PPI for clear display quality
940 cd/m² high brightness for excellent outdoor visibility
IPS technology with 85/85/85/85 viewing angles
LVDS interface with 50-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
WLED backlight with 30,000 hours lifespan
16.7M color support with 75% NTSC color gamut
Wide operating temperature range: -30°C to 85°C
High vibration resistance: 2.9G (28.4 m/s²)

Technical Specifications

Panel Model	M123AWF4 R0
Panel Brand	IVO
Size	12.3 Inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720, 167PPI
Pixel Format	RGB Vertical Stripe
Module Dimensions	299.03×123.012×9.24 mm (H×V×D)
Display Mode	IPS, Normally Black, Transmissive
Active Area	292.032×109.512 mm (W×H)
Response Time	25 ms (Typ.)
Display Colors	16.7M, 75% NTSC
Light Source	10S4P WLED, 30K hours
Viewing Angle	85/85/85/85 (Typ.)
Touch	Without
Brightness	940 cd/m² (Typ.)
Power Supply	3.3V (Typ.)
Contrast Ratio	1000:1 (Typ.)
Frame Rate	60Hz
Interface Type	LVDS (2 ch, 8-bit)
FPC Connector	BJD, 101049-205050, Pitch 0.5mm
Storage Temperature	-40°C to 90°C
Operating Temperature	-30°C to 85°C
Vibration Level	2.9G (28.4 m/s²)
Applications	Outdoor High Brightness, Industrial, Automotive Display

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
EV Charger Display
Industrial Control Display
Rugged Display
Outdoor High Brightness Display
Automotive displays

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

Capacitive Touch Optional .

This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
