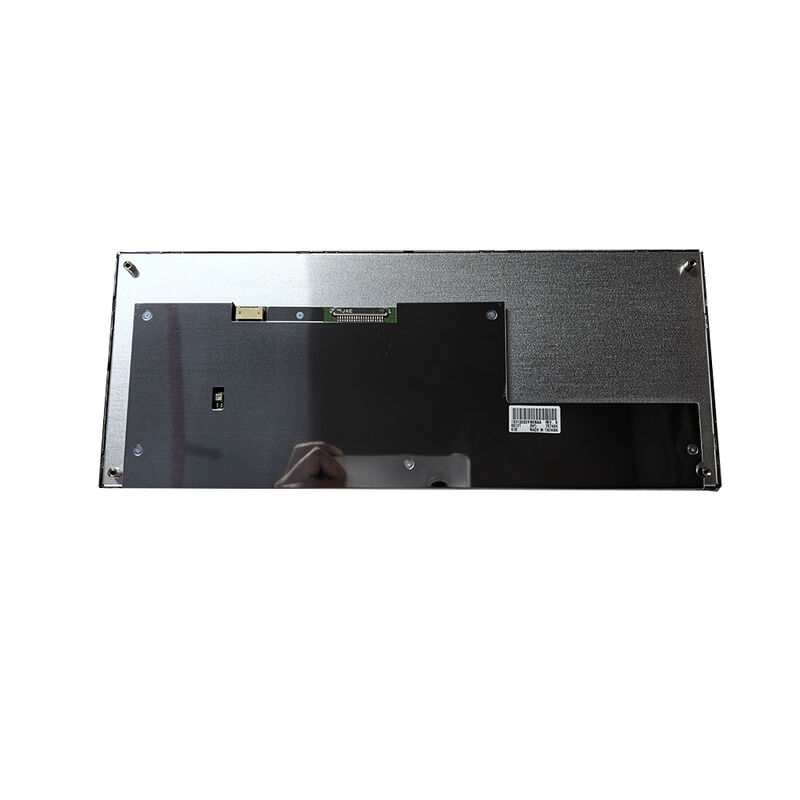

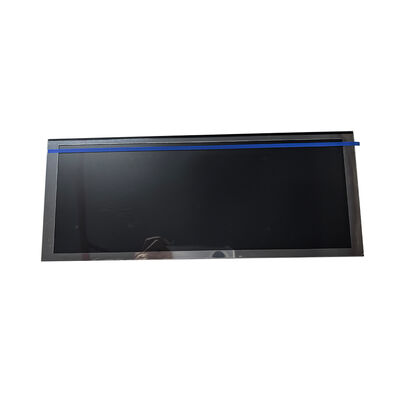

KOE Capacitive Touch LCD TFT Spi Display 1920x480 TX31D200VM0BAA

Name: KOE Capacitive Touch LCD TFT Spi Display 1920x480 TX31D200VM0BAA
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TX31D200VM0BAA
Price: 40.00 USD
Availability: InStock

Brand Name:	KOE
Model Number:	TX31D200VM0BAA
MOQ:	1
Price:	$440/pieces 1-79 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China Taiwan

Panel Type:

A-Si TFT-LCD, LCM

Display Type:

IPS, Normally Black, Transmissive

Brand:

KOE

Display Size:

12.3 Inch

Supplier Type:

Original Brand

Module Outsize(mm):

320(W)x130(H)x12.6(D)

Resolution:

1280(RGB)x480, DVGA 111PPI, 1280(RGB)x480, DVGA 111PPI

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Brightness:

1000 Cd/m² (Typ.), 1000 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Backlight Type:

WLED , 70K Hours , With LED Driver

Signal Interface:

LVDS (1 Ch, 6-bit) , 20 Pins Connector

Touch Panel:

Without

Environment:

Operating Temperature: 30 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C

Application:

Rugged Industry Outdoor High Brightness Industrial Display

Warranty:

12months

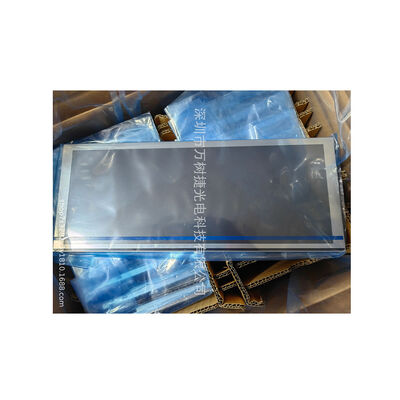

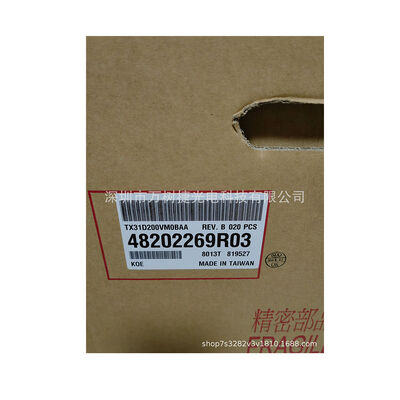

Packaging Details:

10pcs/Box

Highlight:

KOE lcd tft spi

1920x480 lcd tft spi

TX31D200VM0BAA

Product Description

TX31D200VM0BAA KOE 12.3 Inch 1920x480 TFT-LCD Display with Wide Temperature Range for Industrial and Automotive Applications Capacitive Touch Optional

High-performance 12.3-inch TFT-LCD display module with 1920×480 DVGA resolution, engineered for demanding industrial and automotive, rugged applications requiring reliable operation across wide temperature ranges with exceptional vibration resistance.

Key Features

1920×480 DVGA resolution with 111 PPI for clear display
1000 cd/m² high brightness for excellent outdoor visibility
IPS technology with 85/85/85/85 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
WLED backlight with 70,000 hours lifespan
262K color support with 100% sRGB color gamut
Wide operating temperature range: -30°C to 80°C
High vibration resistance: 5.0G (49.0 m/s²)

Technical Specifications

Panel Model	TX31D200VM0BAA	Panel Brand	KOE
Size	12.3 Inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×480, DVGA 111PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	320(W)×130(H)×12.6(D) mm	Display Mode	IPS, Normally Black, Transmissive
Active Area	291.84(W)×109.44(H) mm	Response Time	25 ms (Typ.)
Display Colors	262K 100% sRGB	Light Source	WLED, 70K hours, With LED Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch	Without
Brightness	1000 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	1000:1 (Typ.)	Application	Rugged Industry, Outdoor High Brightness, Industrial
Frame Rate	60Hz	Environment	Storage Temp.: -40°C to 90°C Operating Temp.: -30°C to 80°C Vibration Level: 5.0G (49.0 m/s²)
Interface Type	LVDS (1 ch, 6-bit), 20 pins Connector	FPC Connector	JAE, FI-SEB20P-HF13E, Pitch 1.25mm

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
EV Charger Display
Industrial Control Display
Rugged Display
Outdoor High Brightness Display
Automotive displays

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

Capacitive Touch Optional

This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
