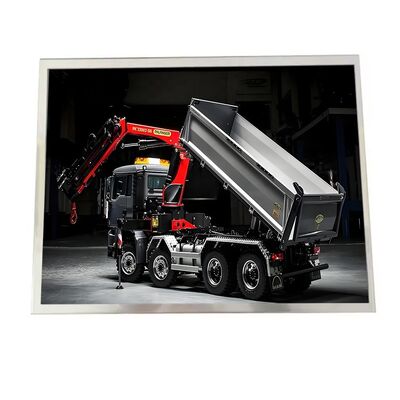

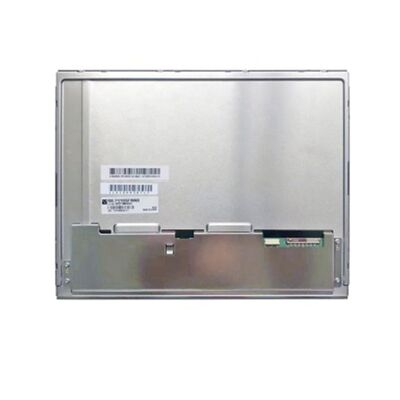

OEM Automotive Module TFT LCD Display Panel Tianma 12.1inch 105PPI

Name: OEM Automotive Module TFT LCD Display Panel Tianma 12.1inch 105PPI
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: P1210XGF1MA00
Price: 50.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	P1210XGF1MA00
MOQ:	1
Price:	$170/pieces 1-99 pieces
Payment Terms:	D/P,L/C,D/A,T/T,Western Union
Supply Ability:	10pcs/Box

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

12.1inch

Supplier Type:

Original Brand

Resolution:

1024(RGB)x768, XGA 105PPI

Module Outsize(mm):

260.5(H)x203(V) X10(D) Mm

Viewing Angle:

88/88/88/88 (Typ.)(CR≥10)

Brightness:

1300cd/m2

Contrast Ratio:

1000:1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Withtout

MPQ:

20pcs

Environment:

Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 M/s²)

Application:

Industrial Equipment, Outdoor High Brightness,Automative Display

Warranty:

12 Months

Highlight:

OEM module tft lcd

Tianma 12.1inch module tft lcd

105PPI panel tft lcd

Product Description

P1210XGF1MA00 Tianma 12.1-inch XGA Industrial IPS Display

High-performance 12.1-inch TFT-LCD display module with 1024×768 XGA resolution, engineered for demanding industrial applications requiring ultra-high brightness and reliable operation across wide temperature ranges.

Key Features

1024×768 XGA resolution with 105 PPI for sharp display clarity
1300 cd/m² ultra-high brightness for excellent visibility in bright environments
SFT technology with 88/88/88/88 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
WLED backlight with 100,000 hours lifespan
262K/16.7M color support with 72% NTSC color gamut
Wide operating temperature range: -30°C to 80°C

Technical Specifications

Panel Model	P1210XGF1MA00
Panel Brand	Tianma
Size	12.1 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI
Pixel Format	RGB Vertical Stripe
Module Dimensions	260.5(H)×203(V)×10(D) mm
Display Mode	SFT, Normally Black, Transmissive
Active Area	245.76(W)×184.32(H) mm
Response Time	25 ms (Typ.)(Tr+Td)
Display Colors	262K/16.7M 72% NTSC
Light Source	7S4P WLED, 100K hours, Without Driver
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Touch Screen	Without
Brightness	1300 cd/m² (Typ.)
Power Supply	3.3V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Frame Ratio	60Hz
Storage Temperature	-40°C to 90°C
Operating Temperature	-30°C to 80°C
Vibration Level	2.0G (19.6 m/s²)
LCM Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
FPC Connector	JAE, FI-SEB20P-HFE, Pitch 1.25 mm
Application Areas	Industrial, Outdoor High Brightness Automotive

Applications

Industrial equipment and machinery
Automation equipment displays
Outdoor high brightness applications
CNC machine displays
Medical equipment
EV Charger Display
Industrial Control Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products. Optional industrial-grade capacitive touch available.
