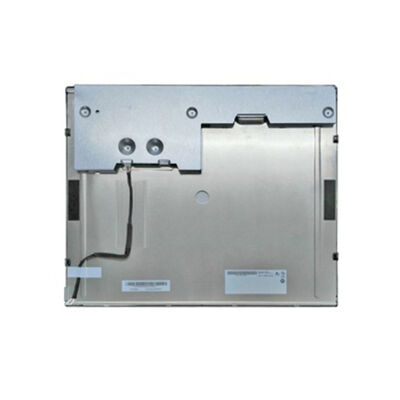

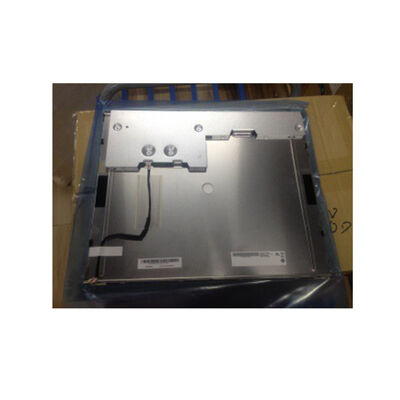

AUO G190EAN01.0 19.0-Inch SXGA 1280*1024 Resolution Industrial TFT Display with LVDS Interface and WLED Backlight 50,000 Hours

Name: AUO G190EAN01.0 19.0-Inch SXGA 1280*1024 Resolution Industrial TFT Display with LVDS Interface and WLED Backlight 50,000 Hours
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: G190EAN01.0
Price: 50.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G190EAN01.0
MOQ:	1
Price:	$175/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

19.0 Inch

Supplier Type:

Original Brand

Resolution:

1280(RGB)×1024, 5:4, SXGA

Module Outsize(mm):

396(W)×324(H)×17.5(D) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Brightness:

300cd/m2

Interface:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Touch Screen:

Without

Application:

Industrial Equipment, Instrument,Kiosks & POS Systems,Medical Equipment

MPQ:

9 Pcs

Warranty:

12 Months

Packaging Details:

9pcs/Box

Highlight:

19-inch SXGA industrial LCD panel

1280x1024 medical imaging display

5:4 LVDS TFT display

Product Description

AUO 19.0inch 1280*1024 5:4 SXGA Industrial TFT Module

It is a 19.0-inch industrial-grade SXGA TFT-LCD panel with AHVA technology, wide viewing angles, and long-life WLED backlight, ideal for industrial control, medical equipment, and digital signage applications.

Highlighted Advantages of AUO G190EAN01.0

High-Performance Visuals: 19.0" SXGA resolution (1280×1024) with 1000:1 contrast ratio and 300 cd/m² brightness, delivering sharp, clear images.
Ultra-Wide Viewing Angle: AHVA panel with 89/89/89/89° viewing angle (CR≥10) ensures consistent color and brightness from all directions.
Long-Life Backlight: 9S6P WLED backlight with built-in driver, rated for 50,000 hours lifespan for reliable industrial use.

Products Description

Parameter Category	Parameter Details	Parameter Value
Basic Information	Manufacturer (Mfr.)	AUO
	Model Name	G190EAN01.0
	Display Size	19.0"
	Panel Type	a-Si TFT-LCD, LCM
Display Parameters	Resolution	1280(RGB)×1024, 5:4, SXGA
	Pixel Structure	RGB Vertical Stripe
	Display Area	376.32(W)×301.056(H) mm
	Outline Size	396(W)×324(H)×17.5(D) mm
	Panel Weight	1.55 Kgs (Typ.)
	Surface	Antiglare
	Brightness	300 cd/m² (Typ.)
	Contrast Ratio	1000:1 (Typ.) (TM)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
	View Direction	Symmetry
	Display Mode	AHVA, Normally Black, Transmissive
	Response Time	13/12 (Typ.)(Tr/Td) ms
	Display Colors	16.7M, 72% NTSC
	Frequency	60Hz
Backlight & Power	Light Source	9S6P WLED, 50K hrs, With LED Driver
	Touch Screen	Without
	Power Usage	17.9W (Typ.)
Electrical Interface	Interface	LVDS (2 ch, 8-bit), 30 pins Connector
	Input Voltage	5.0V (Typ.)
	Connector	JAE,FI-XB30SSL-HF15,Pitch 1.0mm
Environmental Specifications	Operating Temperature	0 ~ 50 °C
	Storage Temperature	-20 ~ 60 °C

Application Scenarios

Industrial Control & Automation: HMI panels, factory automation displays, and industrial PCs.
Medical Equipment: Diagnostic monitors, patient monitoring systems, and laboratory instruments,Medical Imaging
Digital Signage & Kiosks: Self-service terminals, information kiosks, and public display systems.
Gaming & Arcade Cabinets: Industrial-grade displays for arcade machines and gaming terminals.

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional

Touchscreen integration available as an optional feature.

About Wan Shujie Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
