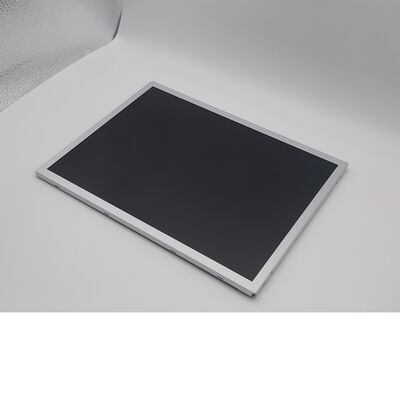

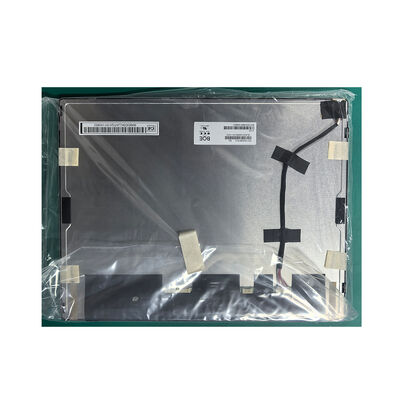

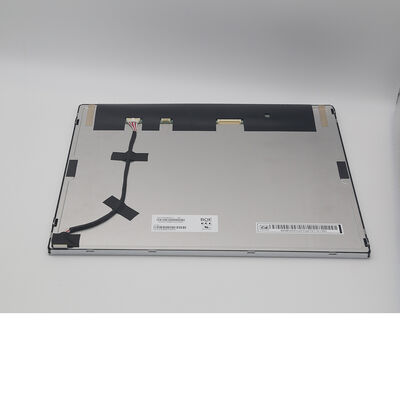

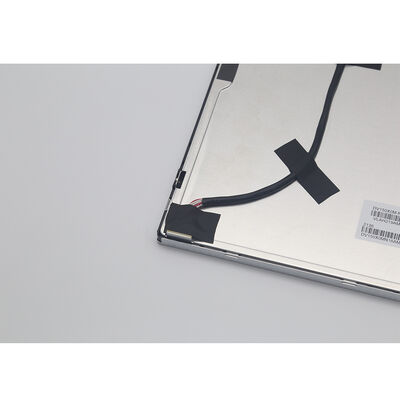

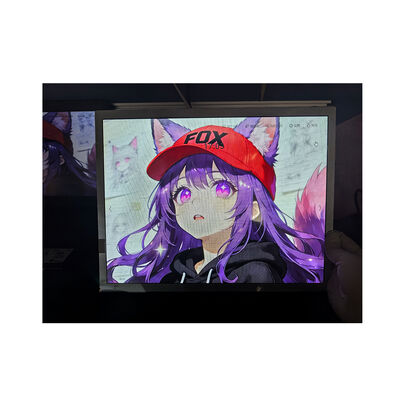

BOE DV150X0M-N16 15" 4:3 Industrial LCD Panel with 600 cd/m² High Brightness 1024x768 XGA Resolution for Industrial Self-service kiosks Application
BOE DV150X0M-N16 15" 4:3 Industrial LCD Panel with 600 cd/m² High Brightness 1024x768 XGA Resolution for Industrial Self-service kiosks Application
Brand Name
BOE
Product Model
DV150X0M-N16
Country Of Origin
China
MOQ
1
Unit Price
US$ 75 for 1-99pcs
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
15-inch industrial LCD panel
,high brightness 600 cd/m² display
,XGA resolution TFT display
Display Size:
15.0 Inch
Supplier Type:
In Stock
Outline Dimension:
326.5×253.5×10.4 Mm (H×V×D)
Surface Treatment:
Antiglare (Haze 25%), Hard Coating (3H)
Number Of Dots:
1024(RGB)×768, XGA, 4:3
Surface Luminance:
600 Cd/m2
Viewing Angleg:
89/89/89/89 (Typ.)(CR≥10)
Input Voltage:
3.3V (Typ.)
Refresh Rate:
60Hz
Interface:
LVDS (1 Ch, 8-bit), 20 Pins Connector
Touch Technology:
PCAP(CTP) Optional
Environment:
Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C
Product Description
Detailed Specifications And Features
BOE DV150X0M-N16 15" 1024x768 XGA 4:3 High Brightness 600cd/m² Industrial LCD Panel
The BOE DV150X0M-N16 is a 15.0-inch industrial-grade TFT-LCD module with XGA (1024×768) resolution, 600 cd/m² high brightness, and 1000:1 contrast ratio. It supports a wide operating temperature range (-20°C to 70°C), features a 50,000-hour WLED backlight, and comes with an anti-glare 3H surface. With standard LVDS interface and 3.3V supply, it is ideal for industrial HMI, kiosks, and medical equipment applications.
Key Product Features
- High Brightness for Industrial Use: Typical brightness reaches 600 cd/m², far exceeding standard office panels, ensuring clear visibility even in high-light environments.
- Temperature & Long Lifespan: Supports operating temperatures from -20°C to 70°C and storage temperatures from -30°C to 80°C, suitable for harsh conditions. The WLED backlight has a rated lifespan of 50,000 hours for long-term reliability.
- Standard Industrial Compatibility: LVDS 20-pin interface and 3.3V typical voltage make it compatible with most industrial driver boards, simplifying integration.
Technical Specifications
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Basic Information | Manufacturer | BOE |
| Model No. | DV150X0M-N16 | |
| Screen Size | 15.0 inch | |
| Display Parameters | Number of dots | 1024(RGB)×768, XGA, 4:3 |
| Dot Layout | RGB Vertical Stripe | |
| Active Area | 304.128×228.096 mm (H×V) | |
| Outline Area | 326.5×253.5×10.4 mm (H×V×D) | |
| Weight | 730g | |
| Surface Feature | Antiglare (Haze 25%), Hard coating (3H) | |
| Luminance | 600 cd/m² (Typ.) | |
| Contrast Ratio | 1000:1 (Typ.) (TM) | |
| Backlight & Structure | Backlight | 12S4P WLED, 50K hrs, With LED Driver |
| Touchscreen | Without | |
| Electrical Interface | Refresh Rate | 60Hz |
| Total Power | 11.68/11.71W (Typ./Max.) | |
| Signal Type | LVDS (1 ch, 8-bit), 20 pins Connector | |
| Voltage Supply | 3.3V (Typ.) | |
| Environmental Specifications | Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
Typical Applications
- Industrial Control: CNC machine tools, industrial HMI, and PLC operation terminals.
- Outdoor/Semi-Outdoor Terminals: Self-service kiosks, industrial monitoring displays, and equipment status dashboards.
- Commercial & Medical Devices: POS systems, medical equipment screens, and test & measurement instruments.
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products. Capacitive or Resistive touchscreen integration solutions available upon request.
About Wan Shujie Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
