Product Details
Highlight:
3S7P WLED lcd module tft
,1280x800 lcd module tft
,TM070JDHG30
Type:
A-Si TFT-LCD, LCM
Display Size:
7"
Resolution:
1920(RGB)×1080, FHD 119PPI
Supplier Type:
Original Brand
Pixel Format:
RGB Vertical Stripe
Surface:
Antiglare, Hard Coating
Luminance:
400 Cd/m² (Typ.)
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Response Time:
25 (Typ.)(Tr+Td) Ms
Lamp Type:
9S6P WLED , 50K Hours , With LED Driver
Input Voltage:
5.0V (Typ.)
Signal Interface:
LVDS (2 Ch, 8-bit) , 30 Pins Connector
Product Description
Detailed Specifications And Features

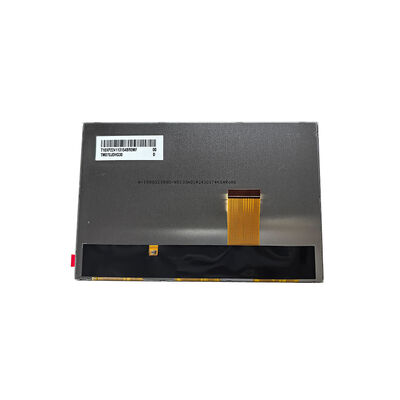

Tianma TM070JDHG30 7.0 Inch Display Module
High-performance 7-inch TFT-LCD display module with 1280x800 WXGA resolution and LVDS interface, designed for industrial VOIP phones and healthcare equipment applications.
Product Overview
The TM070JDHG30-00 is a 7-inch diagonal TFT-LCD display panel developed by Tianma Microelectronics Co., Ltd. This industrial-grade display module delivers exceptional visual performance without integrated touch functionality.
This model is in mass production. We can supply large quantities with competitive pricing, and orders are warmly welcome!
Key Features
- High resolution 1280x800 WXGA display with 217 PPI for sharp, detailed imagery
- Wide 176-degree viewing angle ensures clarity from multiple perspectives
- LVDS interface with 40-pin FPC connector for reliable data transmission
- Horizontal orientation design optimized for industrial applications
- 16.7 million color depth with 50% NTSC color gamut
- Customization options available with cover glass and capacitive touch
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand & Model | Tianma TM070JDHG30-00 |
| Diagonal Size | 7-inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)*800, WXGA (217 PPI) |
| Active Area | 149.76mm * 93.6mm |
| Outline Dimensions | 161mm * 107mm * 4.95mm |
| Luminance | 400 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Viewing Angle | 88/88/88/88 (CR≥10) |
| Response Time | 35ms (Typical, Tr+Td) |
| Backlight | 3S7P WLED, 30,000 hours lifespan |
| Signal Interface | LVDS (1 channel, 8-bit), 40-pin FPC |
| Voltage Supply | 3.3V/10.4V/16V/-6.8V (VDD/AVDD/VGH/VGL) |
| Refresh Rate | 60Hz |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Weight | 120g (Typical) |
Applications
This display module is specifically recommended for industrial equipment, healthcare devices, VOIP phones, and various industrial monitoring applications. Mass production began in Q2 2016.
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
